Scott Safety ACSf Self-Contained Breathing Apparatus

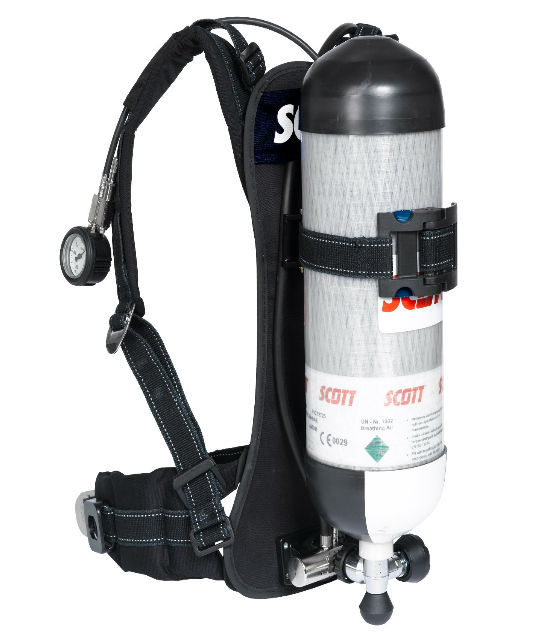

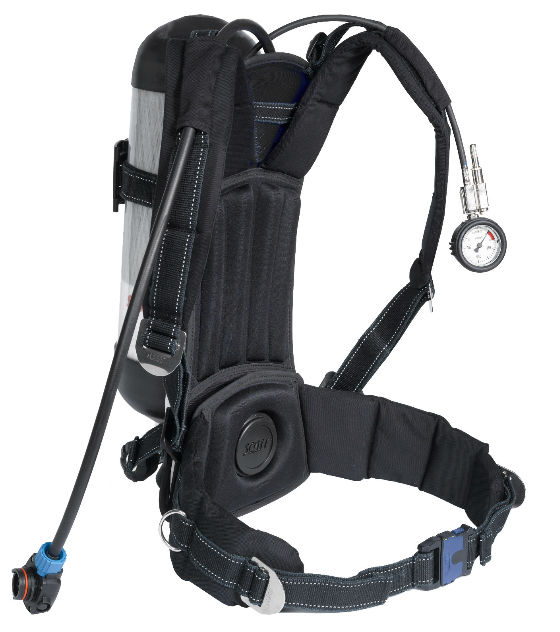

The Scott ACSf is an open circuit, self-contained, compressed air breathing apparatus. It consists of a back plate,
padded carrying harness and pneumatic system, containing a cylinder connector, reducer, pressure gauge, whistle and
The ACSf can be configured in a number of different ways with various size single cylinders. There are also a range of
variants available including Airline (AC), and Split Demand Valve Coupling (SDC).
The ACSf is used in conjunction with a range of composite or steel cylinders and the choice of Vision 3, Panaseal,
Panavisor or Promask PP facemask.
The ACSf is specifically designed as an fire fighting SCBA, but is also suitable for providing respiratory protection in
any IDLH environment.
ACSf & ACSfx Brochure

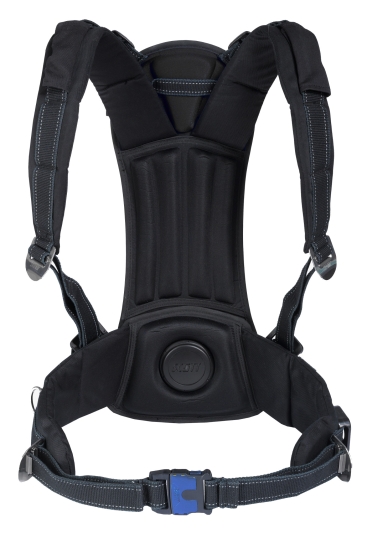

2018328 ACSF ACSf self contained breathing apparatus for single cylinder use, comprising lightweight flexible
backplate with cylinder band and fully adjustable padded body harness with swivel movement
Two stage pneumatic system comprising Tempest automatic positive pressure demand valve with
bypass: shoulder mounted pressure indicator and 55 bar warning whistle: first stage pressure
reducer with single high pressure 200/300 bar cylinder connector.
Harness fabricated from Kevlar and Pyrogard blend webbing and Proban material and apparatus
features full back padding. Webbing contains reflective thread.
Apparatus accepts full range of Scott breathing apparatus cylinders from 4.7 to 9 litres capacity,
200 or 300 bar.*
Apparatus is CE Marked to EN137:2006 Type II
Apparatus supplied less facemask, please order desired mask separately.
*Please note to maintain the cylinder valve handwheel on the normal right hand side of the SCBA please order the cylinders fitted with the right angled
valve. These cylinders have the suffix -RA
2018362 ACSF-AC ACSf fitted with Airline attachment*.
2018330 ACSF-SDC ACSf fitted with Split demand valve
2018364 ACSF-AC-SDC ACSf fitted with Split demand valve and Airline attachment*.
2018863 ACSF-Y2C ACSf fitted with Y-piece (2 CEN socket) in demand valve hose
* Please note the airline attachment has both air in and air out functionality so therefore serves as both an RSM and decontamination attachment as well
-QC Cylinder Quick Connect on reducer. Please add suffix -QC to required part number to receive a set
fitted with the Quick connect system. Please note cylinder adaptor 2020714 also required - sold
-DUO As above with modified cradle and extended cylinder band to allow single or two cylinder use
(Man-200 or Man-300 also required)
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
