3M Scott Safety Contour 100

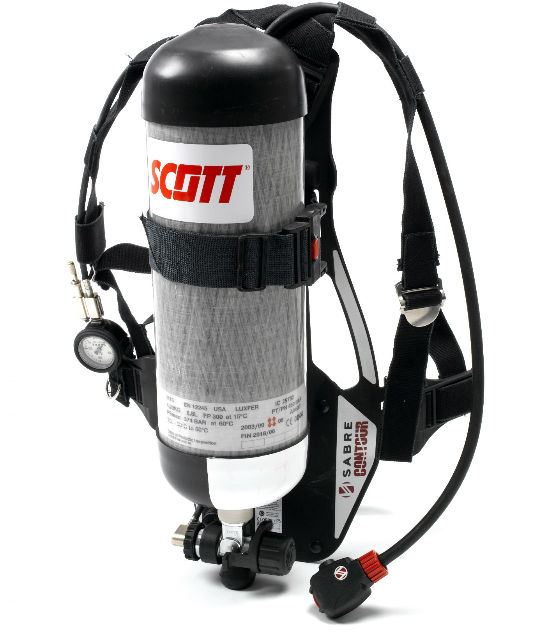

The 3M Scott Safety Contour 100 offers users exceptional levels of comfort, improved fields of vision, true operational flexibility and low cost, simple maintenance in a self contained breathing apparatus which maintains 3M Scott Safety's reputation for being at the forefront of breathing apparatus design and manufacture for over 30 years.

Key Features

  • Kevlar blend non padded webbing harness
  • Optional Airline and Decontamination attachments available
  • Ergonomically designed, strong and lightweight injection moulded backplate.
Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Designed primarily for the industrial, oil & gas market market for use with the Promask or Vision 3 facemask the Contour 100 is a lightweight high performance set. The Contour 100 offers exceptional levels of performance, comfort and reliability with low through life costs.

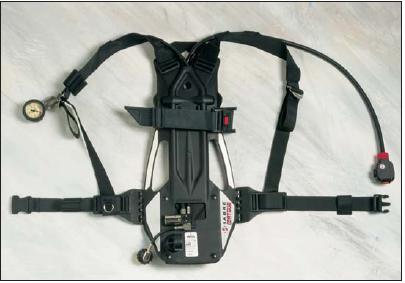

BACKPLATE AND HARNESS

The ergonomic, injection moulded composite backplate is the heart of the Scott Contour 100. The lightweight webbing harness ensures optimal load distribution, balance, comfort and reduced wearer fatigue.

PNEUMATIC SYSTEM

The simple, fail safe, spring loaded piston reducer is fully serviceable and offers low service and maintenance costs.

All hose connections feature 3M Scott Safety's simple and proven U-clip/O-ring design, which is very reliable and simple to maintain. Different high and medium pressure hose connections ensure foolproof assembly.

The robust, luminous pressure gauge and the whistle feature swivel hose fittings are shoulder mounted for easy wearer reference.

FACEMASKS

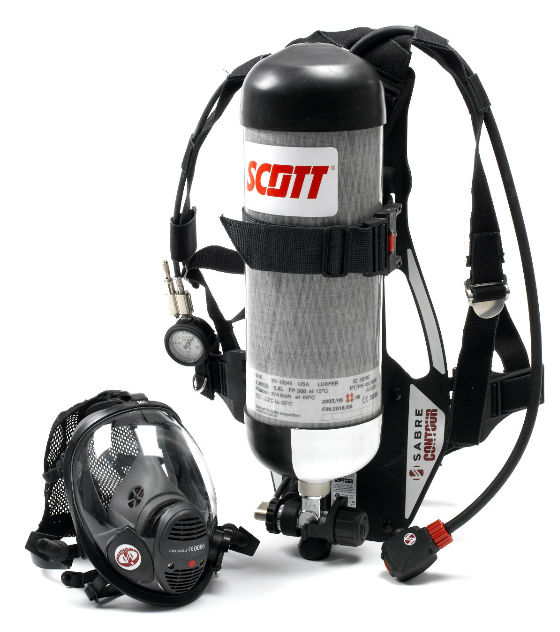

The Scott Contour 100 is designed for use with the Vision 3 or Promask facemasks. 3M Scott Safety masks are manufactured from non dermatitic materials and feature Scott's side mounted demand valve and front speech diaphragm.

DEMAND VALVE

The Tempest automatic positive pressure demand valve features low breathing resistance and unsurpassed dynamic performance; particularly at high flow rates. The compact, low profile shape minimises snag hazards, with the bayonet fitting being simply connected and featuring a safety locking catch.

A true bypass facility simplifies checking and donning procedures and ensures fail safe operation. The Scott Safety Tempest demand valve is fully user serviceable and offers low maintenance and servicing costs.

CONTOUR 100 SERIES
  • 1045573 CTR-100 Contour self contained breathing apparatus for single cylinder use, comprising lightweight anti-static composite backplate with Kevlar cylinder band and fully adjustable unpadded body harness:
    Two stage pneumatic system comprising Tempest automatic positive pressure demand valve with bypass: shoulder mounted pressure indicator and 55 bar warning whistle: first stage pressure reducer with single high pressure cylinder connector.
    Harness fabricated from flame retardent 50% Kevlar blend materials and features a half lumbar pad. Apparatus accepts full range of Scott breathing apparatus cylinders from 4.7 to 11.0 litres capacity, 200 or 300 bar.
    Apparatus is CE Marked to EN137:2006 Type 1
    Apparatus supplied less facemask, please order desired mask separately.

  • 1045575 CTR-110 Apparatus as above except with CEN decontamination attachment.

  • 1045576 CTR-120 Apparatus as above except with CEN airline attachment

  • 2007104 2007104 Apparatus as above except with Foster/HansenMil Spec airline attachment (CTR-120 Foster/hansen mil spec)

  • 2015848 2015848 Apparatus as above except with Hansen HK airline attachment (CTR-120 Hansen HK)

ACCESSORIES
  • 1034994 084.216.00 Contour User Instruction manual 9.40 3E

  • 1035685 089.124.00 Testkit & toolkit combined (not including 074.285.00) - Contour/Propak/ACS

  • 1035686 089.124.01 Testkit only - Contour/Propak/ACS

  • 1033779 074.083.00 Toolkit only - Contour/Propak/ACS

  • 1023116 035.016.03 Cylinder pressure test gauge 200/300 bar

  • 1034744 084.059.00 Breathing apparatus log book - Fire Brigade version

  • 1034745 084.059.01 Breathing apparatus log book - Industrial version

  • 2014810 2014810 Moulded B.A. carrying case for 1 apparatus c/w cylinder

  • `
