3M Scott Safety ELSA Muster

The 3M Scott Safety ELSA Muster is an open circuit, positive pressure airline breathing apparatus generally comprising; Anti-static bag, high pressure reducing valve, automatic positive pressure demand valve and coupling for airline supply hose.

Key Features

  • Maximum level of respiratory protection
  • Ancilliary air in for enhanced safety
  • Available in hooded and facemask versions
Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

  • • High performance reducer
  • • Easy to maintain, low through life costs
  • • Low training requirement
  • • Automatic activation
  • • 10 & 15 minute options available, steel or composite shelloptions
  • • Variety of couplings for a wide range of airline systems

ESCAPE DURATIONS

The ELSA Muster range offers durations of 10 and 15 minutes and is available in either facemask or positive pressure hood options.

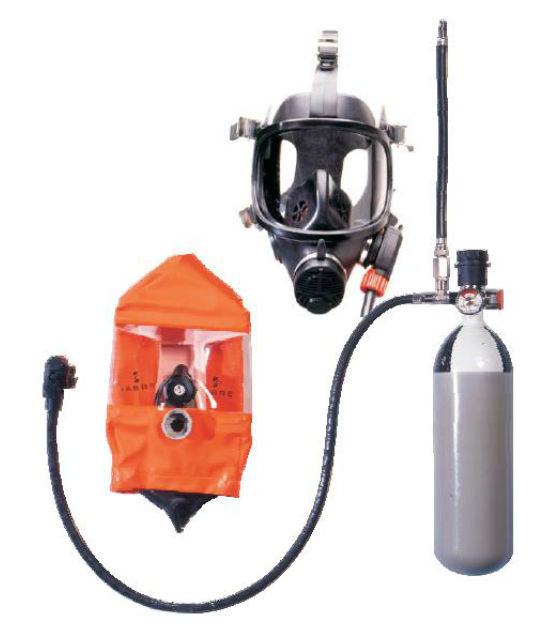

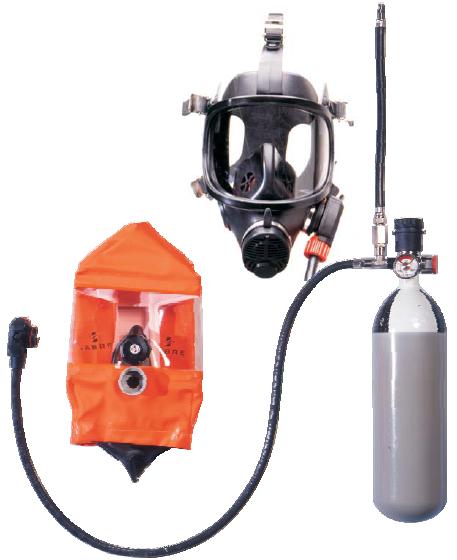

FACEMASKS

Lightweight PanaSeal positive pressure facemask approved to EN136 Class 3.

Moulded in non-dermatitic materials and fitted with an optically clear, impact resistant polycarbonate visor. Anti-scratch coating, speech diaphragm and side mounted, quickfit demand valve connection are standard. Supplied with head harness.

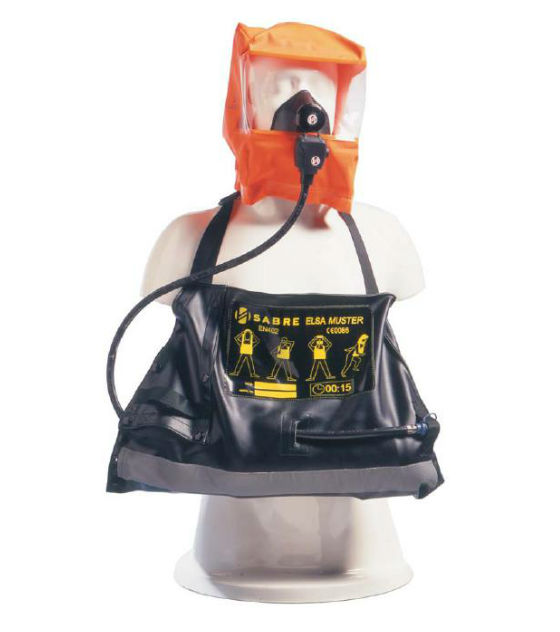

FLAME RETARDANT HOOD

The high visibility cuboid hood incorporates an optically clear visor to ensure all round vision. An elastometric neck seal ensures easy donning over spectacles, long or facial hair. A small orinasal mask controls the rebreathed CO2.

DEMAND VALVES

Compact, automatic positive pressure, first breath activated demand valve. Unique servo-assisted mechanism provides superior dynamic and flow performance characteristics. Quick-fit coupling to mask or hood connection with secondary locking catch.

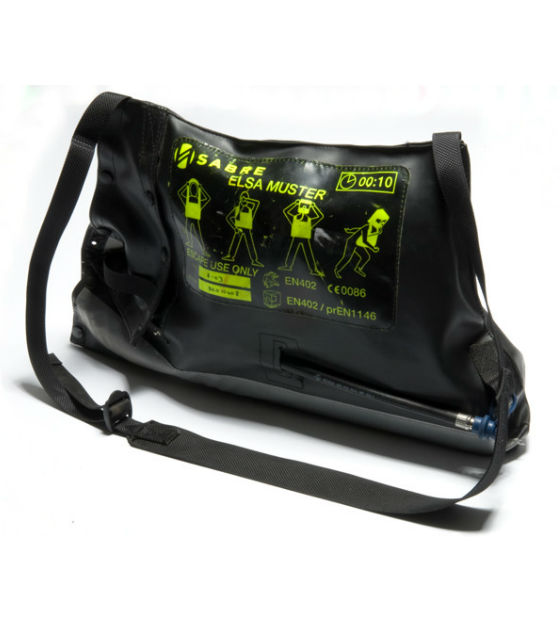

CARRYING BAG

Worn in chest or bandolier mode, the Elsa Muster carrying bag is available in black anti-static material for use in potentially explosive atmospheres.





ELSA Muster
  • ELSA Muster positive pressure escape breathing apparatus complete with bag mounted 2.0 litre, 200 bar steel cylinder to EC specification providing 400 litres breathing air giving a rated duration of 10 minutes*. Pressure reducing valve and automatic positive pressure demand valve; Positive pressure facemask in black Neoprene with net headharness: carrying bag in black Anti-static material. Emergency air in connection with CEN male coupling.

  • 2009644 Full

  • ELSA Muster positive pressure escape breathing apparatus complete with bag mounted 2.0 litre, 200 bar steel cylinder to EC specification providing 400 litres breathing air giving a rated duration of 10 minutes*. Pressure reducing valve and automatic positive pressure demand valve; Positive pressure hood high visibility flame retardent PVC coated nylon; carrying bag in black anti-static material. Emergency air in connection with CEN male coupling

  • 2009643 Full

  • ELSA Muster positive pressure escape breathing apparatus complete with bag mounted 3.0 litre, 200 bar steel cylinder to EC specification providing 600 litres breathing air giving a rated duration of 15 minutes*. Pressure reducing valve and automatic positive pressure demand valve; Positive pressure facemask in black Neoprene with net headharness: carrying bag in black Anti-static material. Emergency air in connection with CEN male coupling.

  • 2009642 Empty

  • ELSA Muster positive pressure escape breathing apparatus complete with bag mounted 3.0 litre, 200 bar steel cylinder to EC specification providing 600 litres breathing air giving a rated duration of 15 minutes*. Pressure reducing valve and automatic positive pressure demand valve; Positive pressure hood high visibility flame retardent PVC coated nylon; carrying bag in black anti-static material. Emergency air in connection with CEN male coupling.

  • 2007116 Empty

  • * Duration calculated using an average wearer consumption rate of 40 litres per minute. Please specify whether cylinders are to be supplied FULL or EMPTY

  • Charged cylinders are classed as hazardous and may not be sent by certain types of carriage.

Muster Variants
  • 2028628 Muster, 15min, composite, Hood, Empty

  • 2028629 Muster, 15min, composite, Mask, Empty

  • 2010823 Muster, 10min, steel, Mask, Foster, Full

  • 2009645 Muster, 15min, steel, mask, Foster, Empty

  • 2028274 Muster, 15min, composite, Hood, Hansen HK, Empty

  • 2028275 Muster, 15min, composite, Mask, Hansen HK, Empty

  • 2018752 Muster, 15min, steel, Mask (Vision), Hansen HK, Empty

SELECTED SPARES
  • 2015935 2015935 Spare Antistatic 10 minute ELSA muster bag

  • 2015936 2015936 Spare Antistatic 15 minute ELSA muster bag

  • 2028278 2028278 Spare Antistatic 15 minute composite ELSA muster bag

  • 2004229 018.008.99 Charging adaptor handwheel and liner to suit 207 bar EN144-2 cylinder valves. 1/4" BSP male thread
