3M Scott Safety ELSA Sprint 3M Scott Safety ELSA Sprint 3M Scott Safety ELSA Sprint

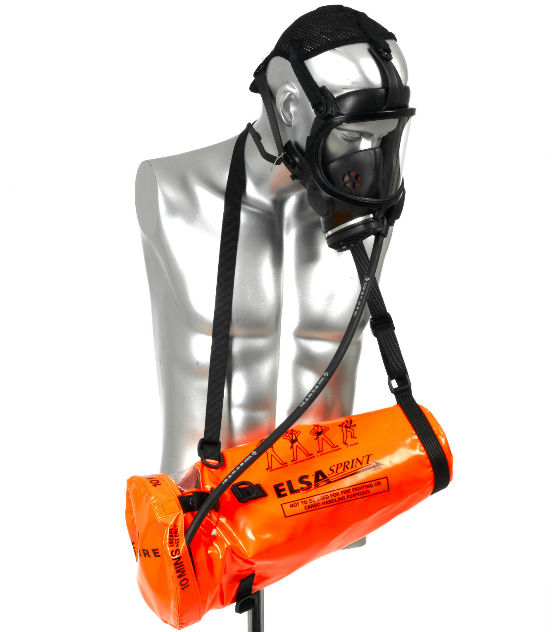

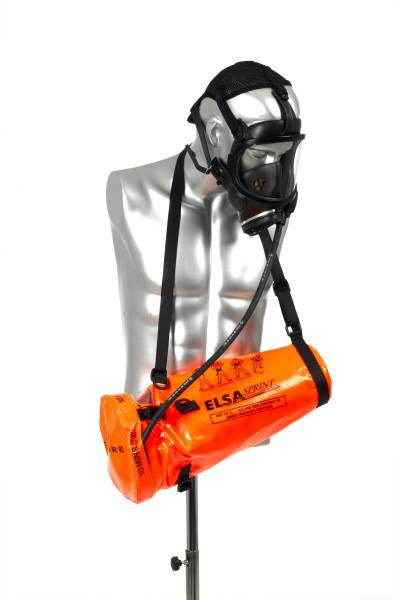

3M Scott Safety ELSA Sprint

Based on the tried and trusted 3M Scott Safety ELSA emergency life support apparatus, the 3M Scott Safety ELSA Sprint positive pressure escape breathing apparatus offers simplicity and robustness combined with performance to European Standard EN402.

Key Features

  • Robust and simple to use
  • Available in 400 and 600 litres breathing air capacity
  • 10 and 15 minute durations available
Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

  • • Flame retardant cuboid hood for all-round vision
  • • Lightweight PanaSeal positive pressure facemask
  • • High visibility carrying bag can be worn in chest or bandolier mode

Available in 10 and 15 minute versions, the ELSA SPRINT reflects the 3M Scott Safety stated philosophy of producing products which customers wear by choice, not just necessity

ESCAPE DURATIONS

The ELSA Sprint range offers durations of 10 and 15 minutes and is available in either facemask or positive pressure hood options.

FACEMASKS

Lightweight PanaSeal positive pressure facemask approved to EN136 Class 3.

Moulded in non-dermatitic Neoprene or silicone and fitted with an optically clear, impact resistant polycarbonate visor. Anti-scratch coating, speech diaphragm and side mounted, quickfit demand valve connection are standard. Supplied with head harness.

FLAME RETARDANT HOOD

The high visibility cuboid hood incorporates an optically clear visor to ensure all round vision. An elastometric neck seal ensures easy donning over spectacles, long or facial hair. A small orinasal mask controls the rebreathed CO2.

DEMAND VALVES

Compact, automatic positive pressure, first breath activated demand valve. Unique servo-assisted mechanism provides superior dynamic and flow performance characteristics. Quick-fit coupling to mask or hood connection with secondary locking catch.

CYLINDER VALVE

Manufactured in light alloy and finished with an orange anodised protective coating. The low profile pressure indicator is fitted with a burst disc assembly to protect the valve. An EN144 outlet is fitted with rust tube and manual or automatic valve opening mechanism.

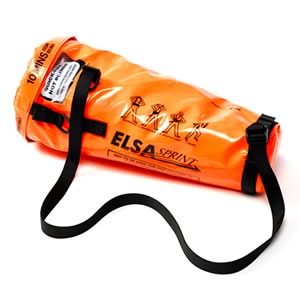

CARRYING BAG

Worn in chest or bandolier mode, the high visibility carrying bag is available in flame retardant/chemical splash resistant material or the optional black anti-static material for use in potentially explosive atmospheres.

ELSA SPRINT
  • SPRINT-10-B ELSA Sprint positive pressure escape breathing apparatus complete with bag mounted 2.0 litre, 200 bar steel cylinder to CE specification providing 400 litres breathing air giving a rated duration of 10 minutes*. Pressure reducing valve and automatic positive pressure demand valve; Positive pressure facemask in black Neoprene with net headharness: carrying bag in high visibility PVC material. Apparatus weight 4.5kg.

  • 1069632 SPRINT-10-B Full

  • 2009426 SPRINT-10-B Empty

  • SPRINT-15-B ELSA Sprint positive pressure escape breathing apparatus complete with bag mounted 3.0 litre, 200 bar steel cylinder to CE specification providing 600 litres breathing air giving a rated duration of 15 minutes*. Pressure reducing valve and automatic positive pressure demand valve; Positive pressure facemask in black Neoprene with net headharness: carrying bag in high visibility PVC material. Apparatus weight 5.6kg.

  • 1069845 SPRINT-15-B Full

  • 2009434 SPRINT-15-B Empty

  • * Duration calculated using an average wearer consumption rate of 40 litres per minute.

  • Please specify whether cylinders are to be supplied FULL or EMPTY

  • Charged cylinders are classed as hazardous and may not be sent by certain types of carriage.

OPTIONS
  • Add the following suffix to the above ordering details to obtain the following options.

  • -AS Anti-static carrying bag.

  • -HD High Visibility, flame retardent, positive pressure hood.

SPARE CYLINDERS
  • 1045774 CYL-10-B-GB Spare cylinder and valve assembly, 10 minute version, 2.0 litre, 200 bar CE specification steel cylinder.

  • 1045820 CYL-15-B-GB Spare cylinder and valve assembly, 15 minute version, 3.0 litre, 200 bar CE specification steel cylinder.

ADDITIONAL EQUIPMENT
  • 1017527 010.125.00 Injection moulded storage/carrying case. Shock proof and water resistant. Dimensions: 510 x 430 x 210mm

  • 1035958 089.357.01 Testkit & Toolkit.

  • 1033982 074.273.01 Toolkit only.

SELECTED SPARES
  • 2014373 2014373 10 Minute Bag - High Vis

  • 2014376 2014376 15 minute Bag - High Vis

  • 2014374 2014374 10 Minute Bag - Anti-Static

  • 2014375 2014375 15 minute Bag - Anti-Static

  • 1032983 071.623.98 Spare Hood

  • 1023396 035.174.99 Pressure indicator, rubber shroud and flow restrictor

  • 1027766 053.014.99 Quick-fire activation cord

  • 1036404 095.063.00 6 year service kit for ELSA Sprint with facemask

  • 1074155 095.063.01 6 year service kit for ELSA Sprint with Hood
