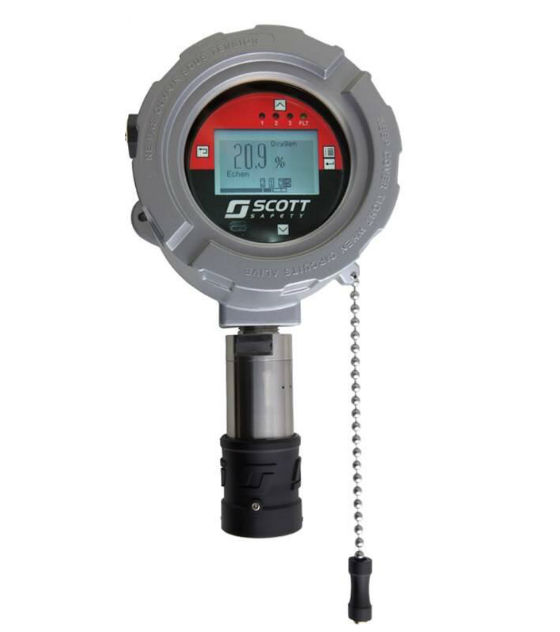

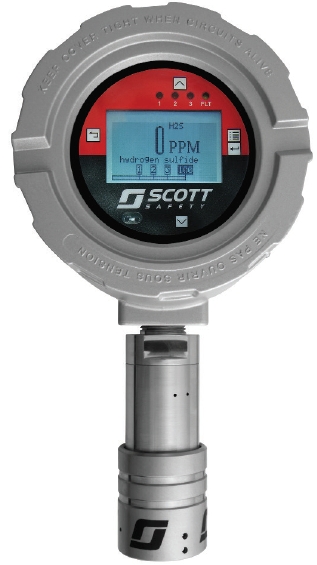

Scott Safety Meridian Universal Gas Detector



  Single detector head for all sensor types
  Full range of combustible and toxic sensors
  Supports up to three sensors per transmitter
  Multiple communication protocols
  Global regulatory approvals
  Voted Best Industrial Hygiene - Fixed Permanent System

The Meridian Universal Gas Detector is an innovative next generation gas detection solution. Meridian’s single detector head supports combustible and toxic sensors. Designed for ease of use, Meridian significantly reduces upfront investment and ongoing maintenance costs. With global approvals and SIL2 certification from TUV-Rheinland, Meridian ensures best in class performance and safety.

The term “universal” is frequently used in the industry to characterize gas detectors that address both toxic and combustible gases, but it is rare to find instruments that truly live up to that claim.

Upon close inspection, you will find that often the only characteristic that can be called “universal” is their user interface.

In other words, the instrument provides a common user interface for both combustible and toxic gas detection.

At Scott Safety, we believe “universal” should be much more than a common user interface, and we applied this thinking to every aspect of the design of the Meridian universal gas detector.

You will find that the Meridian universal gas detector is the industry’s first truly universal gas detection platform.

SINGLE DETECTOR HEAD FOR ALL APPLICATIONS

Whether you need an infrared or catalytic bead sensor to detect combustible gases or an electrochemical sensor for a toxic environment, the Meridian universal gas detector utilizes a single detector head to easily accept all sensor types. There is no requirement for distinct personality boards in the gas detector or different detector heads to make the instrument behave as a combustible or toxic gas detector. The Meridian gas detector accepts all sensor types in one detector. Simply attach the specific toxic or combustible sensor to the universal detector head and the Meridian gas detector will automatically determine the type of gas to be detected. Installation of the sensor is a simple plug-and-play action. At Scott Safety, we are always looking to anticipate your future needs. We designed the Meridian gas detection platform to be future proof, allowing you to take advantage of new sensing technologies from Scott Safety while maintaining ease of use and peace of mind.


SINGLE SET OF ACCESSORIES

The Meridian gas detector has a single set of accessories for your application needs—another merit of a truly universal gas detection platform. Because all accessories for the Meridian gas detector are designed for the universal detector head, there is no need for purchasing separate accessories for toxic and combustible applications.

DOWNLOADS


Datasheet

Ordering Information


2 WIRE CONFIGURATION

096-3533-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP
096-3533-02 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP
096-3533-03 ALUMINUM ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP
096-3533-04 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP
096-3533-05 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, CSA
096-3533-06 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, CSA
096-3533-07 ALUMINUM ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP, CSA
096-3533-08 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP, CSA
096-3563-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, INMETRO
096-3563-02 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, INMETRO

3-4 WIRE CONFIGURATIONS (SINGLE HEAD)

096-3480-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP
096-3480-02 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP
096-3480-03 ALUMINUM ENCLOSURE, HEATED DISPLAY, PLASTIC END CAP, CSA
096-3480-04 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, PLASTIC END CAP, CSA
096-3480-05 ALUMINUM ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP
096-3480-06 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP
096-3480-07 ALUMINUM ENCLOSURE, HEATED DISPLAY, STAINLESS STEEL END CAP, CSA
096-3480-08 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, STAINLESS STEEL END CAP, CSA
096-3564-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, INMETRO
096-3564-02 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, INMETRO
096-3564-03 ALUMINUM ENCLOSURE, BLIND DISPLAY, PLASTIC END CAP, INMETRO
096-3564-04 STAINLESS STEEL ENCLOSURE, BLIND DISPLAY, PLASTIC END CAP, INMETRO

The following Meridian Universal Gas Detector configurations include the HART Communication option:

096-3534-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, HART, PLASTIC END CAP
096-3534-02 ALUMINUM ENCLOSURE, STANDARD DISPLAY, HART, STAINLESS STEEL END CAP
096-3534-03 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, HART, PLASTIC END CAP
096-3534-04 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, HART, STAINLESS STEEL END CAP
096-3534-05 ALUMINUM ENCLOSURE, BLIND DISPLAY, HART, PLASTIC END CAP
096-3534-06 ALUMINUM ENCLOSURE, BLIND DISPLAY, HART, STAINLESS STEEL END CAP
096-3534-07 STAINLESS STEEL ENCLOSURE, BLIND DISPLAY, HART, PLASTIC END CAP
096-3534-08 STAINLESS STEEL ENCLOSURE, BLIND DISPLAY, HART, STAINLESS STEEL END CAP
096-3534-09 ALUMINUM ENCLOSURE, HEATED DISPLAY, HART, PLASTIC END CAP, CSA
096-3534-10 ALUMINUM ENCLOSURE, HEATED DISPLAY, HART, STAINLESS STEEL END CAP, CSA
096-3534-11 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, HART, PLASTIC END CAP, CSA
096-3534-12 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, HART, STAINLESS STEEL END CAP, CSA
096-3534-13 ALUMINUM ENCLOSURE, BLIND DISPLAY, HART, PLASTIC END CAP, CSA
096-3534-14 ALUMINUM ENCLOSURE, BLIND DISPLAY, HART, STAINLESS STEEL END CAP, CSA
096-3534-15 STAINLESS STEEL ENCLOSURE, BLIND DISPLAY, HART, PLASTIC END CAP, CSA
096-3534-16 STAINLESS STEEL ENCLOSURE, BLIND DISPLAY, HART, STAINLESS STEEL END CAP, CSA

2 WIRE REMOTE CONFIGURATIONS (SINGLE HEAD)

096-3557-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD
096-3557-02 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD
096-3557-03 ALUMINUM ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP, REMOTE HEAD
096-3557-04 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP, REMOTE HEAD
096-3557-05 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD, CSA
096-3557-06 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD, CSA
096-3557-07 ALUMINUM ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP, REMOTE HEAD, CSA
096-3557-08 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP, REMOTE HEAD, CSA
096-3565-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD, INMETRO
096-3565-02 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD, INMETRO

3-4 WIRE REMOTE CONFIGURATIONS (SINGLE HEAD)

096-3558-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD
096-3558-02 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD
096-3558-03 ALUMINUM ENCLOSURE, HEATED DISPLAY, PLASTIC END CAP, REMOTE HEAD, CSA
096-3558-04 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, PLASTIC END CAP, REMOTE HEAD, CSA
096-3558-05 ALUMINUM ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP, REMOTE HEAD
096-3558-06 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP, REMOTE HEAD
096-3558-07 ALUMINUM ENCLOSURE, HEATED DISPLAY, STAINLESS STEEL END CAP, REMOTE HEAD, CSA
096-3558-08 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, STAINLESS STEEL END CAP, REMOTE HEAD, CSA
096-3558-09 ALUMINUM ENCLOSURE, HART COMMUNICATIONS, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD
096-3558-10 STAINLESS STEEL ENCLOSURE, HART COMMUNICATIONS, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD
096-3558-11 ALUMINUM ENCLOSURE, HART COMMUNICATIONS, HEATED DISPLAY, PLASTIC END CAP, REMOTE HEAD, CSA
096-3558-12 STAINLESS STEEL ENCLOSURE, HART COMMUNICATIONS, HEATED DISPLAY, PLASTIC END CAP, REMOTE HEAD, CSA
096-3558-13 ALUMINUM ENCLOSURE, HART COMMUNICATIONS, STANDARD DISPLAY, STAINLESS STEEL END CAP, REMOTE HEAD
096-3558-14 STAINLESS STEEL ENCLOSURE, HART COMMUNICATIONS, STANDARD DISPLAY, STAINLESS STEEL END CAP, REMOTE HEAD
096-3558-15 ALUMINUM ENCLOSURE, HART COMMUNICATIONS, HEATED DISPLAY, STAINLESS STEEL END CAP, REMOTE HEAD, CSA
096-3558-16 STAINLESS STEEL ENCLOSURE, HART COMMUNICATIONS, HEATED DISPLAY, STAINLESS STEEL END CAP, REMOTE HEAD, CSA
096-3566-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD, INMETRO
096-3566-02 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, REMOTE HEAD, INMETRO
096-3566-03 ALUMINUM ENCLOSURE, BLIND DISPLAY, PLASTIC END CAP, REMOTE HEAD, INMETRO
096-3566-04 STAINLESS STEEL ENCLOSURE, BLIND DISPLAY, PLASTIC END CAP, REMOTE HEAD, INMETRO

3-4 WIRE CONFIGURATIONS (DUAL HEAD)

096-3493-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP
096-3493-02 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP
096-3493-03 ALUMINUM ENCLOSURE, HEATED DISPLAY, PLASTIC END CAP, CSA
096-3493-04 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, PLASTIC END CAP, CSA
096-3493-05 ALUMINUM ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP
096-3493-06 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP
096-3493-07 ALUMINUM ENCLOSURE, HEATED DISPLAY, STAINLESS STEEL END CAP, CSA
096-3493-08 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, STAINLESS STEEL END CAP, CSA
096-3568-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, INMETRO
096-3568-02 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, INMETRO

The following Meridian Universal Gas Detector confgurations include the HART Communication option:

096-3535-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, HART, PLASTIC END CAP
096-3535-02 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, HART, PLASTIC END CAP
096-3535-03 ALUMINUM ENCLOSURE, HEATED DISPLAY, HART, PLASTIC END CAP, CSA
096-3535-04 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, HART, PLASTIC END CAP, CSA
096-3535-05 ALUMINUM ENCLOSURE, HART, STANDARD DISPLAY, STAINLESS STEEL END CAP
096-3535-06 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, HART, STAINLESS STEEL END CAP
096-3535-07 ALUMINUM ENCLOSURE, HEATED DISPLAY, HART, STAINLESS STEEL END CAP, CSA
096-3535-08 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, HART, STAINLESS STEEL END CAP, CSA

3-4 WIRE CONFIGURATIONS (TRIPLE HEAD)

096-3493-09 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP
096-3493-10 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP
096-3493-11 ALUMINUM ENCLOSURE, HEATED DISPLAY, PLASTIC END CAP, CSA
096-3493-12 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, PLASTIC END CAP, CSA
096-3493-13 ALUMINUM ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP
096-3493-14 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, STAINLESS STEEL END CAP
096-3493-15 ALUMINUM ENCLOSURE, HEATED DISPLAY, STAINLESS STEEL END CAP, CSA
096-3493-16 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, STAINLESS STEEL END CAP, CSA
096-3569-01 ALUMINUM ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, INMETRO
096-3569-02 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, PLASTIC END CAP, INMETRO

The following Meridian Universal Gas Detector confgurations include the HART Communication option:

096-3535-09 ALUMINUM ENCLOSURE, STANDARD DISPLAY, HART, PLASTIC END CAP
096-3535-10 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, HART, PLASTIC END CAP
096-3535-11 ALUMINUM ENCLOSURE, HEATED DISPLAY, HART, PLASTIC END CAP, CSA
096-3535-12 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, HART, PLASTIC END CAP, CSA
096-3535-13 ALUMINUM ENCLOSURE, STANDARD DISPLAY, HART, STAINLESS STEEL END CAP
096-3535-14 STAINLESS STEEL ENCLOSURE, STANDARD DISPLAY, HART, STAINLESS STEEL END CAP
096-3535-15 ALUMINUM ENCLOSURE, HEATED DISPLAY, HART, STAINLESS STEEL END CAP, CSA
096-3535-16 STAINLESS STEEL ENCLOSURE, HEATED DISPLAY, HART, STAINLESS STEEL END CAP, CSA

TOXIC AND OXYGEN SENSORS

096-3473-03 MERIDIAN AMMONIA SENSOR- NH3
096-3473-24 MERIDIAN BROMINE SENSOR- Br2 ROCK SOLID, HIGH RELATIVE HUMIDITY
096-3473-58 MERIDIAN CARBON DIOXIDE INFRARED SENSOR- CO IR (Sensor not supported by 2-Wire Unit)
096-3473-01 MERIDIAN CARBON MONOXIDE SENSOR- CO
096-3473-37 MERIDIAN CHLORINE DIOXIDE SENSOR -ClO2 ROCK SOLID, HIGH RELATIVE HUMIDITY
096-3473-38 MERIDIAN CHLORINE DIOXIDE SENSOR -ClO2 ROCK SOLID, LOW RELATIVE HUMIDITY
096-3473-20 MERIDIAN CHLORINE SENSOR- Cl2 ROCK SOLID, HIGH RELATIVE HUMIDITY
096-3473-21 MERIDIAN CHLORINE SENSOR- Cl2 ROCK SOLID, LOW RELATIVE HUMIDITY
096-3473-22 MERIDIAN FLUORINE SENSOR- F2 ROCK SOLID, HIGH RELATIVE HUMIDITY
096-3473-23 MERIDIAN FLUORINE SENSOR- F2 ROCK SOLID, LOW RELATIVE HUMIDITY
096-3473-25 MERIDIAN HYDROGEN CHLORIDE SENSOR- HCl ROCK SOLID, HIGH RELATIVE HUMIDITY
096-3473-26 MERIDIAN HYDROGEN CHLORIDE SENSOR- HCl ROCK SOLID, LOW RELATIVE HUMIDITY
096-3473-11 MERIDIAN HYDROGEN CYANIDE SENSOR - HCN
096-3473-12 MERIDIAN HYDROGEN SENSOR - H2
096-3473-27 MERIDIAN HYDROGEN FLUORIDE SENSOR- HF ROCK SOLID, HIGH RELATIVE HUMIDITY
096-3473-28 MERIDIAN HYDROGEN FLUORIDE SENSOR- HF ROCK SOLID, LOW RELATIVE HUMIDITY
096-3473-02 MERIDIAN HYDROGEN SULFIDE SENSOR- H2S (LOW METHANOL)
096-3473-54 MERIDIAN NITROGEN DIOXIDE SENSOR - NO2
096-3473-19 MERIDIAN OXYGEN SENSOR - O2
096-3473-39 MERIDIAN OZONE SENSOR - O3 ROCK SOLID, HIGH RELATIVE HUMIDITY
096-3473-09 MERIDIAN SILANE SENSOR - SiH4
096-3473-31 MERIDIAN SULFUR DIOXIDE SENSOR- SO2 ROCK SOLID, HIGH RELATIVE HUMIDITY
096-3473-32 MERIDIAN SULFUR DIOXIDE SENSOR- SO2 ROCK SOLID, LOW RELATIVE HUMIDITY
096-3473-05 MERIDIAN SULFUR DIOXIDE SENSOR -SO2 HIGH RELATIVE HUMIDITY

COMBUSTIBLE SENSORS (Sensors not supported by 2-Wire Unit)

096-3473-55 MERIDIAN COMBUSTIBLE CATALYTIC BEAD SENSOR
096-3473-56 MERIDIAN COMBUSTIBLE INFRARED SENSOR1
096-3554-04 MERIDIAN INFRARED SENSOR BUTANE - C4H10
096-3554-08 MERIDIAN INFRARED SENSOR HEXANE - C6H14
096-3554-05 MERIDIAN INFRARED SENSOR ISOPROPANOL - C3H7OH
096-3554-03 MERIDIAN INFRARED SENSOR METHANOL - CH3OH
096-3554-02 MERIDIAN INFRARED SENSOR OCTAMETHYL TRISILOXANE - C8H24O2Si3
096-3554-07 MERIDIAN INFRARED SENSOR PENTANE - C5H12
096-3554-01 MERIDIAN INFRARED SENSOR PROPANE - C3H8
096-3554-06 MERIDIAN INFRARED SENSOR TOLUENE - C7H8

TRANSMITTER SPARE PARTS

096-3401 3-4 WIRE POWER SUPPLY BOARD ASSEMBLY
096-3404 3-4 WIRE RELAY TERMINAL BLOCK BOARD ASSEMBLY
096-3447-01 3-4 WIRE DISPLAY AND CPU BOARD ASSEMBLY WITHOUT HEATER
096-3447-02 3-4 WIRE DISPLAY AND CPU BOARD ASSEMBLY WITH HEATER
096-3447-03 BLIND 3-4 WIRE DISPLAY AND CPU BOARD ASSEMBLY
096-3456 DISPLAY BOARD RIBBON CABLE
096-3448 3-4 WIRE INTRINSIC SAFETY BARRIER BOARD ASSEMBLY
096-3449 2 WIRE INTRINSIC SAFETY BARRIER BOARD ASSEMBLY
096-3407 2 WIRE POWER SUPPLY BOARD ASSEMBLY
074-0528-01 INTRINSIC SAFETY BARRIER TERMINAL BLOCK COVER
096-3495 CONNECTOR & JUMPER KIT
096-3496 SCREWS KIT
096-3497 STANDOFF KIT
096-3498 O-RING KIT
093-0603 ALUMINUM TRANSMITTER ENCLOSURE COVER
093-0604 STAINLESS STEEL TRANSMITTER ENCLOSURE COVER
096-3482 MAGNETIC WAND ACCESSORY
077-1404 STAINLESS STEEL 3/4 NPT STOPPING PLUG
077-1402 3/4 NPT to M20 THREAD ADAPTER
096-3579-01 HART COMMUNICATIONS KIT

REMOTE SENSOR ACCESSORIES AND PARTS

096-3484-01 3-4 WIRE DETECTOR HEAD WITH PLASTIC END CAP
096-3484-02 3-4 WIRE DETECTOR HEAD WITH STAINLESS STEEL END CAP
096-3484-03 2 WIRE DETECTOR HEAD WITH PLASTIC END CAP
096-3484-04 2 WIRE DETECTOR HEAD WITH STAINLESS STEEL END CAP
096-3484-05 3-4 WIRE DETECTOR HEAD WITH PLASTIC END CAP, INMETRO
096-3484-06 2 WIRE DETECTOR HEAD WITH PLASTIC END CAP, INMETRO
096-3436-1 3-4 WIRE DETECTOR HEAD WITHOUT END CAP
096-3436-2 2 WIRE DETECTOR HEAD WITHOUT END CAP
096-3437-1 PLASTIC END CAP (with Screen)
096-3437-2 STAINLESS STEEL END CAP (with Screen)

DETECTOR HEAD SPARE PARTS

096-3475 ALUMINUM JUNCTION BOX ASSEMBLY (WITH 4-WAY CONNECTOR BLOCK)
096-3475-01 ALUMINUM JUNCTION BOX ASSEMBLY (with 4-way CONNECTOR BLOCK), INMETRO
096-3520 STAINLESS STEEL JUNCTION BOX ASSEMBLY (with 4-way CONNECTOR BLOCK)
096-3520-01 STAINLESS STEEL JUNCTION BOX ASSEMBLY (with 4-way CONNECTOR BLOCK), INMETRO
048-0089 ELBOWS
096-3483 EXPLOSION PROOF WIRE GLAND ASSEMBLY
069-0097-10 CABLE, 10FT. (3.1M)
069-0097-25 CABLE, 25FT. (7.6M)
069-0097-50 CABLE, 50FT. (15.2M)
069-0097-75 CABLE, 75FT. (22.9M)
069-0097-100 CABLE, 100FT. (30.5M)
096-3495 CONNECTOR & JUMPER KIT
048-0091 REMOTE CABLE GLAND FITTINGS
073-0367 ALUMINUM JUNCTION BOX (BOX ONLY)
096-3550 INTRINSICALLY SAFE CONNECTOR BLOCK
096-3434 4-WAY CONNECTOR BLOCK BOARD FOR JUNCTION BOX

ACCESSORIES

096-3438 CALIBRATION ADAPTER
096-3439 FLOW CELL
096-3441 DELUGE GUARD
073-0373 WEATHER SHIELD
073-0374 UNIVERSAL MOUNTING ADAPTER PLATE
096-3437-2 STAINLESS STEEL END CAP
096-3395 SENSOR SIMULATOR
096-3440 FLAT/ROUND DUCT MOUNTING KIT
096-3541-00 “A” FRAME SALES DISPLAY KIT (INCLUDES: A-FRAME, SPACER PLATE, THUMB SCREWS, DC JACK ASSY)
076-0376 PIPE MOUNT FOR JUNCTION BOX
076-0377 PIPE MOUNT FOR MERIDIAN
077-1385 RIGHT ANGLE FITTING, POLYMER FOR 1/8” TUBING
077-1386 RIGHT ANGLE FITTING, STAINLESS STEEL FOR 1/8” TUBING
096-3537 DUST FILTER



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Back To Last Page

Scott Safety Safety

Portable Gas Monitors

Protege SG
Protege ZM

Fixed Gas Monitors

7200 Plus Controller
7400 Controller
7400 Plus Controller
7600 Controller
7800 Controller
Freedom 5000 Transmitter
FV-40 Series Flame Detectors
FV300 Flame Detector
FV400 Flame Detector
Meridian Universal Gas Detector
Spyglass Combustible Gas Detector

Breathing Apparatus

ACSf Breathing Apparatus
ACSfx Breathing Apparatus
ACSi Breathing Apparatus
Cenpaq Breathing Apparatus
Contour 100
Contour 300 & 500
Cylinders
Cylinders (379 Bar)
ProPak Breathing Apparatus
ProPak-F Breathing Apparatus
ProPak-F-EZ-FLO Breathing Apparatus
ProPak-FX Breathing Apparatus
ProPak-FX-EZ-FLO Breathing Apparatus
ProPak-I Breathing Apparatus
ProPak-Sigma Breathing Apparatus
Sigma 2 Type 2 Breathing Apparatus

Constant Flow Compressed Airines

AFU Airline Filtration Unit
FH/A-LINE Airline Regulator
Kesaf Constant Flow Facemask
Promask Combi Airline Full Face Mask
T-A-Line System

Escape Devices

ELSA Escape Set
ELSA 8RN Escape Set
ELSA Muster Escape Set
ELSA Sprint Escape Set

Face Masks & Hoods

Aviva2 Twin Filter Half Mask
Aviva40 Single Filter Half Mask
Aviva50 Single Filter Half Mask
AV3000HT Positive Pressure Facemask
FH4 Welding Headtop
M95 Full Face Respirator
M98 Full Face Respirator
Panaseal Face Mask
PRO2000 Filters
Profile2 Half Mask
Profile40 Single Filter Half Mask
Profile60 Half Mask
Promask Full Face Mask
Promask2 Twin Filter Full Face Mask
Sari Full Face Mask
Vision 3 Face Mask
Vision RFF1000 Face Mask
Vision RFF4000 Face Mask
Zero Hood

Powered Air Respirators

Duraflow Powered Air Respirator
Phantom Vision PAPR
Proflow 2 EX Powered Air Respirator
Proflow SC Powered Air Respirator
Proflow SC Asbestos Powered Air Respirator
Spirit Powered Air Respirator
Spirit SX Powered Air Respirator
Tornado Non-Ex Air Purifying Respirator

Supplied Air Respirators

Airline Breathing Apparatus
Flite Airline Breathing Apparatus
Flite COV Supplied Air Respirator
ModulairMax Airline Trolley System

Communications & Accountability

EPIC3 Communication System
EPIC 3 Radio Interface (RI) Voice Communication System
Sabrecom Radio Communications Interface

Eye Protection

Bora
Graviton
Luna
Neutron
Ventura

Face Protection

FHK67 Electrician's Carrier & Visor
IB2000 Interchange Browguard
IC900 & IC920P Carrier Systems
IM914 Carrier System
IM917 & IM917C Carrier Systems
IV900PC & IV900PA Face Shields
IV901PC & IV901PA Face Shields

Head Protection

Bumpmaster Bump Caps
FirstBase 3 Bump Protection Caps
Style 300 Safety Helmet
Style 600 Safety Helmet
Tuffmaster II Safety Helmet

Hearing Protection

Zone Forestry and Amenity Ear Defenders
Zone Industrial Headband Ear Defenders
Zone Industrial Helmet Mount Ear Defenders
Zone Industrial Neckband Ear Defenders

Thermal Imaging

Scott Sight
X190
X380 3-Button
X380 NFPA Compliant 3-Button
X380 5-Button

Want A Quotation?

Please fill out the following fields and we will e-mail you a quotation shortly.
