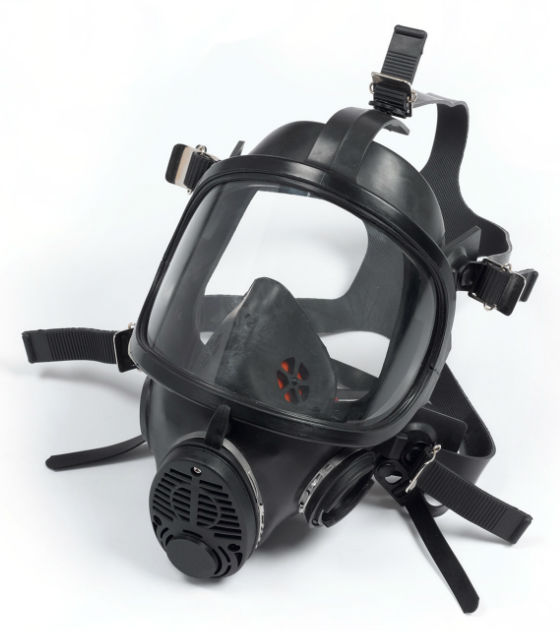

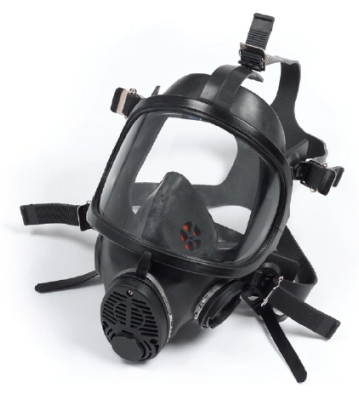

Scott Safety Panaseal Positive Pressure Face Mask



Available in two different sizes, the Scott Safety Panaseal Face Mask accommodates a wide range of facial shapes and sizes. The Panaseal features a Neoprene outer mask with reflex seal and Neoprene ori-nasal inner mask and is positive pressure.

The visor of the Scott Safety Panaseal is single curvature and is made of scratch and impact resistant polycarbonate material with a flame retardant coating. This provides the user with excellent panoramic vision. The Panseal's visor is held in position by two U-shaped clamps. The Panaseal has been designed so that the wearer can wear integrated spectacle frames without any compromising of the facemask seal.

The Panaseal is available with either a five-point fully adjustable neoprene strap style harness or a two-point adjustable Polyester or Kevlar net style harness.

The Scott Safety Panaseal features a left hand side bayonet connection for the demand valve. There is also the option of an additional right quick-fit port in order to take a communications interface, which is also available separately.

A speech diaphragm is mounted at the front of the mask to offer unimpeded speech transmission and there is a low resistance positive pressure exhalation valve that allows for normal breathing with no extra effort. The mask is designed with separate inspiratory and expiratory paths to minimize the risk of cross contamination of second stage regulators.


APPROVALS

  CE marked in accordance with EN136 Class III

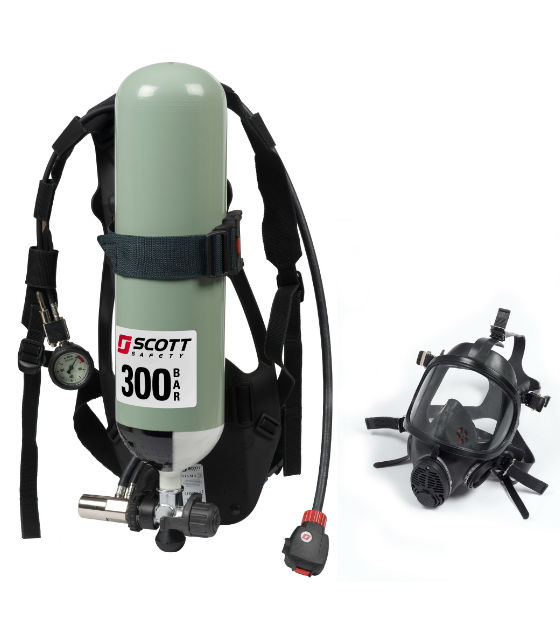

  CE marked in accordance with EN137:2006 Class II when used in conjunction with Scott ProPak
  CE marked in accordance with EN139 when used with Scott airline equipment AS1716
  AS/NZ 1716

DOWNLOADS


Product Literature

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
