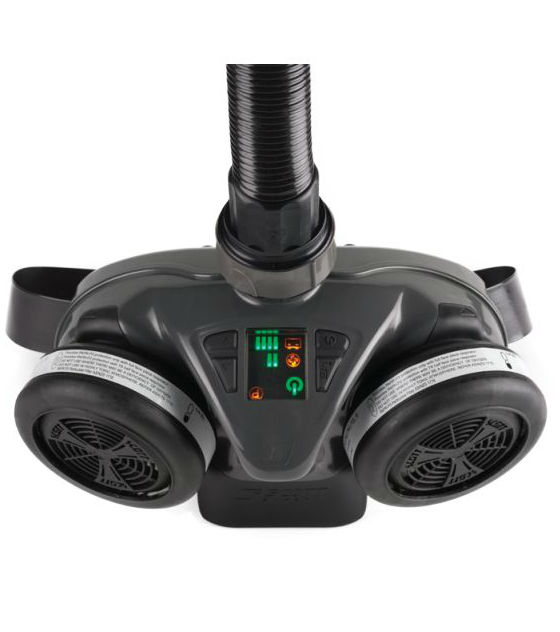

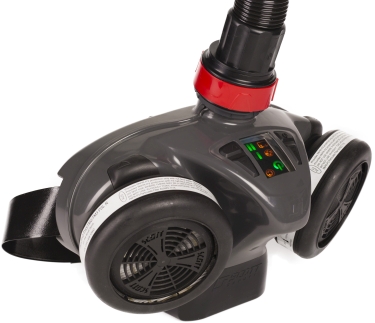

Scott Safety Spirit Powered Air Respirator



Introducing the next generation of powered air respirators, the Spirit range offers an advanced level of electronic controllability and is fully programmable to meet the precise needs of both the user and their application.

CONTROLLABLE AND ADAPTABLE

  Two models, Spirit and Spirit SX, provide a choice for the owner to select the level of controllability and programmability required for their application.
  Both models offer airflow adjustment with particle filters to allow for site specific settings and providing comfort for the user no matter the environmental hazard.
  Many other preference settings, inspection intervals, and operating acknowledgements can be adapted, providing customised alarms for improved user safety.

APPLICATION SPECIFIC

  Scott provides the widest choice of both general and specialised powered air headtops and facemasks, allowing you to select the most appropriate for the user and the most suitable for the application.
  The Spirit system operates with a choice of particle (P) and several combination (AP, ABEP and ABEKP) filters.

LOW THROUGH-LIFE COSTS

  The motor is guaranteed for 3 years or 1800 hours run time (excluding battery), keeping PAPR maintenance costs to a minimum.
  Airflow is optimised and set at a constant level to ensure maximum service life from combination filters while providing comfort to the user.
  Drop in replacement modules allow for fast and simple replacement of parts to minimise down time & costs associated with replacing parts that get damaged.


DOWNLOADS


Brochure
Technical Datasheet

Ordering Information


Spirit Powered Air Units

2025316 2025704 Spirit Base unit (inc charger, battery pack & belt)
2025317 2025705 Spirit SX unit (inc charger, battery pack & belt)

Spirit Readypak

2026312 2026312 Spirit Base unit readypak with FH31 headtop inc comfort belt/PU stretch hose/battery & charger

Spirit Headtops

2022948 2025473 FH1 Half-hood no hose TH3
2022949 2025480 FH2 Full-hood no hose TH3
2025833 2025835 FH3 with PC visor (1mm) no hose TH3
2025837 2025839 FH3 with Anti-mist PC visor (1mm) no hose TH3
2025841 2025843 FH3 with Acetate visor (1mm) no hose TH3
2023098 2025486 FH21 Anti-Static Full Hood no hose TH3
2024478 2025499 FH22 Full Hood no hose TH3
2023084 2023086 FH31 no hose TH2
2031388 2031399 FH32 Litehood TH3
2023114 2025601 FH5 with PC visor no hose TH2
2025301 2025602 FH5 with AC visor no hose TH2
2023116 2025521 FH51 PC Helmet & Hood no hose TH3
2024481 2025522 FH51 AC Helmet & Hood no hose TH3
2025515 FH52 (Anti-Static version of FH51 PC Helmet) TH3
2025516 FH52 (Anti-Static version of FH51 AC Helmet) TH3
2025531 2025535 FH53/PC/CS Helmet & Full Hood
2025532 2025536 FH53/AC/CS Helmet & Full Hood
2023068 2023070 FH6/Procap Helmet with PC visor no hose TH2
2023097 2023100 FH61/Procap Weld (Helmet welding visor) no hose TH2
2023118 2023121 FH62 (Helmet & Gold visor) no hose TH2
2023123 2023125 FH63 (Helmet & Shade 3 visor) no hose TH2
2023128 2023130 FH65 (Helmet & Shade 5 visor) no hose TH2
2023539 2025648 FM1 PAPR half mask (S/M) no hose TM2
2023538 2025649 FM1 PAPR half mask (M/L) no hose TM2
2023639 2023641 FM2/Sari (Natural Rubber) PAPR full face mask no hose TM3
2023643 2023645 FM2/Sari (Silicone) PAPR full face mask no hose TM3
2023647 2023657 FM3/Promask PAPR full face mask no hose TM3
2023659 2023661 FM3/Promask PAPR full face mask (Small) no hose TM3
2023663 2023665 FM3/Promask PAPR full face (Silicone Yellow) mask no hose TM3
2024413 2025686 FM4/Vision PAPR (M/L) full face mask no hose TM3
2024412 2025685 FM4/Vision PAPR (M) full face mask no hose

Spirit Hose Options

2025908 Self adjusting PU hose for use with FH1, FH2, FH21, FH22, FH3, FH31, FH5, FH51
2025910 Fixed length PU hose for use with FH1, FH2, FH21, FH22, FH3, FH31, FH5, FH51
2024458 EPDM Rubber hose for use with FH1, FH2, FH21, FH22, FH3, FH31, FH5, FH51
2029863 Longer (100cm) EPDM Rubber hose for use with FH1, FH2, FH21, FH22, FH3, FH31, FH5, FH51
2025909 Self adjusting PU hose for use with FH6, FH61, FH62, FH63, FH65
2025911 Fixed length PU hose for use with FH6, FH61, FH62, FH63, FH65
2024461 EPDM Rubber hose for use with FH6, FH61, FH62, FH63, FH65
2025912 Fixed length PU hose for use with FM1, FM2, FM3, FM4
2024463 EPDM Rubber hose for use with FM1, FM2, FM3, FM4

Spirit Filters

5045060 SF-10 PSL filter for use against solid and liquid toxic, radioactive particles and micro-organisms, e.g. bacteria and viruses.
5045061 SF-20 A2PSL For use against:Gases and vapours from organic compounds and solid and liquid toxic particles.
5045062 SF-30 A2B2E2PSL For use against:Organic, inorganic and acid gases and vapours and solid and liquid toxic particles.
5045063 SF-40 A1B2E2K1PSL Organic, inorganic and acid gases and vapours, ammonia and solid and liquid toxic particles.

Spirit Spares/Accessories

2026111 Spirit spare battery charger
2023276 Spirit belt spare
5063597 Comfort belt
2023334 Spirit - threaded headtop hose spares
2023306 Spirit spare battery pack
2027247 FH1/FH2/FH21 Peel offs (10 pack)
2032150 Pack of Spirit Pre-filter holders (2) with pads (6)
5052691 RXPF/PACK Prefilters (20)



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
