3M Scott Safety Tornado Non-EX Powered Air Respirator

The 3M Scott Safety Tornado Non-EX Powered Air Respirator is a modular powered respiratory system which conforms to the latest EN 12941 & EN 12942 standards.

Key Features

  • Ergonomic design
  • Modular flexibility
  • Intelligent protection
Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

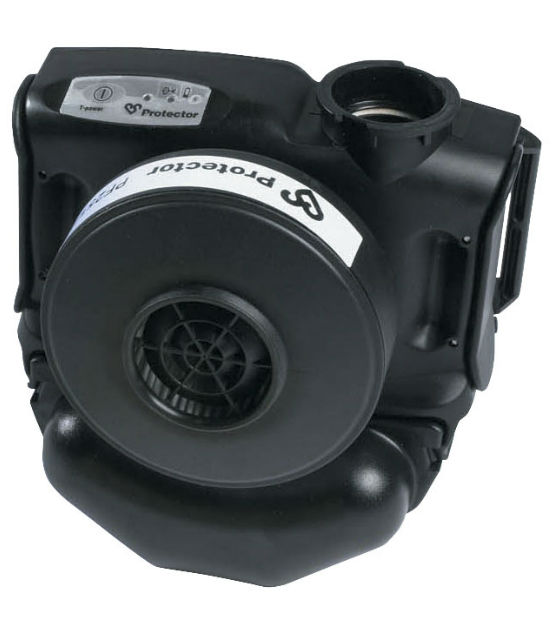

At the heart of the system is the T-Power; a lightweight, compact powered air respirator which is comfortable and easy to use. T-Power features an electronic air management system. The unit monitors airflow rates and as filters are used and reduce in effiency, the unit compensates airflow so that a minimum 140l/min for open headtops and 120l/min for facemasks is maintained.

With a wide range of headtops and filters, Tornado Non-EX provides one of the most versatile respiratory solutions available.

ERGONOMIC DESIGN

- Tornado Non-EX is a lightweight, compact, unobtrusive turbo solution. T-Power weighs just 370g, making it ideal for long shift durations (weight without battery or filters).

- Tornado Non-Ex features an extremely low profile unit, particularly when coupled with particulate filters.

MODULAR FLEXIBILITY

- Tornado Non-EX is compatible with a range of Scott Safety headtops for varying applications.

- The Tornado system operates with a choice of particle (P) and several combination (A-P, ABEP...) filters.

- Tor-adapt filter adaptors allow for changes in application with additional filters.

INTELLIGENT PROTECTION

- Tornado Non-EX provides clear audible and visual warnings of filter clogging and low battery charge

LOW THROUGH-LIFE COSTS

- Tornado non-EX utilises the cost effective PF& TF filter platform and carries a 12 month warranty, subject to Scott Safety warranty terms and conditions

Tornado Powered Air System

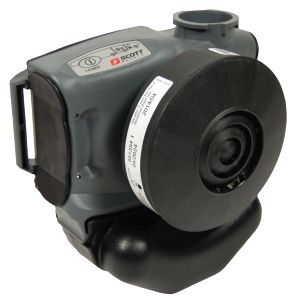

  • 2031568 Tornado non-EX blower unit

  • 2014381 Tornado NiMH battery, intrinsically safe 8 hour

  • 1070756 Tornado Filter adaptors (pair)

  • 2004418 Tornado Smartcharger UK/Euro/Aus

Tornado Accessories
  • 2008336 Tornado 10 station smartcharger UK/Euro/Aus

  • 5000803 Tornado Large System storage box and lid

  • 2005539 Tornado Holdall - black

  • 2001482 Tornado padded comfort waistbelt in spark/flame resistant material (optional)

  • 1070785 Tornado Back harness for vehicle users (optional)

  • 1047266 Waist belt (standard)

  • 1063531 Flowtester

  • 2027247 FH1/FH2/FH21 Peel offs (10 pack)

Tornado Filters

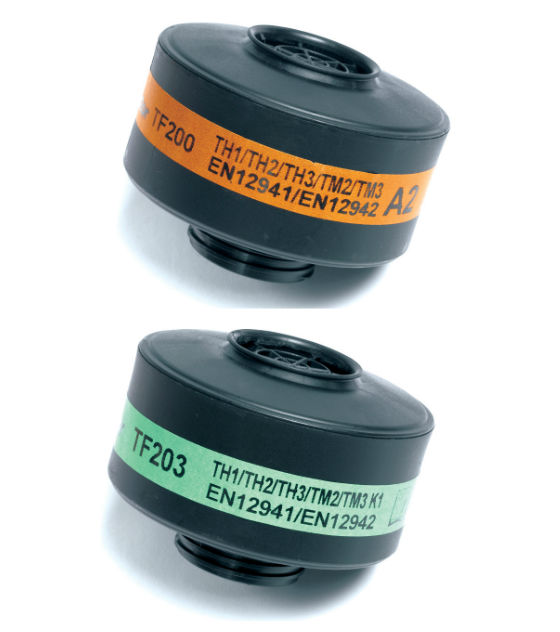

  • 5543164 TF200: TH1/TH2 / TH3 /TM2/TM3 A2 filter (20) EN12941/2

  • 5543165 TF203: TH1/TH2 / TH3 /TM2/TM3 K1 filter (20) EN12941/2

  • 5543166 TF210: TH1/TH2 / TH3 /TM2/TM3 A1B1E1 filter (20) EN12941/2

  • 5543167 TF220: TH1/TH2 / TH3 /TM2/TM3 A2PSL filter (18) EN12941/2

  • 5543168 TF223: TH1/TH2 / TH3 /TM2/TM3 K1PSL filter (18) EN12941/2

  • 5543169 TF230: TH1/TH2 / TH3 /TM2/TM3 A1B1E1PSL filter (18) EN12941/2

  • 5543177 TF233: TH3 /TM3 A2B2E2K2HgPSL filter (18) * Please Note: Hg filters approved only with the highest PAPR rating (TH3/TM3) EN12941/2

  • 5552870 PF251/2: TH1/TH2 / TH3 /TM2/ TM3 PSL filter (20) EN12941/2

  • 2009819 PF251/SUPER: TH1/TH2 / TH3 /TM2/ TM3 PSL filter, extra capacity long life (6) EN12941/2

  • 2028388 TF234: TH3/TM3 A1B2E2K1HgPSL * Please Note: Hg filters approved only with the highest PAPR rating (TH3/TM3) (18) EN12941/2

Tornado Hose Options
  • 2026235 Self adjusting PU hose for use with FH1, FH2, FH21, FH22, FH3, FH31, FH5, FH51

  • 2026226 Fixed length PU hose for use with FH1, FH2, FH21, FH22, FH3, FH31, FH5, FH51

  • 5564453 EPDM Rubber hose for use with FH1, FH2, FH21, FH22, FH3, FH31, FH5, FH51

  • 2029864 Longer (100cm) EPDM Rubber hose for use with FH1, FH2, FH21, FH22, FH3, FH31, FH5, FH51

  • 2026231 Fixed length PU hose for use withFM1, FM2, FM3, FM4

  • 5564454 EPDM Rubber hose for use with FM1, FM2, FM3, FM4

Tornado FH/FM Headtops
  • 2022948 2025473 FH1 Half-hood no hose TH3

  • 2022949 2025480 FH2 Full-hood no hose TH3

  • 2025833 2025835 FH3 with PC visor (1mm) no hose TH2

  • 2025837 2025839 FH3 with Anti-mist PC visor (1mm) no hose TH2

  • 2025841 2025843 FH3 with Acetate visor (1mm) no hose TH2

  • 2023098 2025486 FH21 Anti-Static Full Hood no hose TH3

  • 2024478 2025499 FH22 Full Hood no hose TH3

  • 2023116 2025521 FH51 PC Helmet & Hood no hose TH3

  • 2024481 2025522 FH51 AC Helmet & Hood no hose TH3

  • 2025515 FH52 (Anti-Static version of FH51 PC Helmet) TH3

  • 2025516 FH52 (Anti-Static version of FH51 AC Helmet) TH3

  • 2025531 2025535 FH53/PC/CS Helmet & Full Hood TH3

  • 2025532 2025536 FH53/AC/CS Helmet & Full Hood TH3

  • 2026674 FH4 with long EPDM hose (no ADF included) TH2

  • 2028376 FH4 with long EPDM hose & 2500 ADF TH2

  • 2028380 FH4 with long EPDM hose & 5500 ADF TH2

  • 2023539 2025648 FM1 PAPR half mask (S/M) no hose TM2

  • 2023538 2025649 FM1 PAPR half mask (M/L) no hose TM2

  • 2023647 2023657 FM3/Promask PAPR full face mask no hose TM3

  • 2023659 2023661 FM3/Promask PAPR full face mask (Small) no hose TM3

  • 2023663 2023665 FM3/Promask PAPR full face (Silicone Yellow) mask no hose TM3

  • 2024413 2025686 FM4/Vision PAPR (M/L) full face mask no hose TM3

  • 2024412 2025685 FM4/Vision PAPR (M) full face mask no hose TM3

LEGACY TORNADO HEADTOPS APPROVED ONLY WITH LEGACY TORNADO EX AND NOT WITH TORNADO NON-EX
  • 1070619 T1/ML: Half hood in PU coated nylon, acetate visor, medium / large, TH2 / LDH2 TH3

  • 1070620 T1/SM: Half hood in PU coated nylon, acetate visor, small / medium, TH2 / LDH2 TH3

  • 2023147 T2: Full hood in PU coated nylon, acetate visor, TH3 / LDH3 TH3

  • 2023151 T2/AS: As T2, in white antistatic material TH3

  • 2023470 T3/PC: Visor - polycarbonate, complete with faceseal in PU coated nylon TH2 LDH3. Order T3/AC for acetate visor

  • 2023320 T5/PC: Helmet, complete with polycarbonate visor, TH2 / LDH3 TH2

  • 2023261 T25/PC: Helmet with chemically resistant full hood in hypalon, hose and polycarbonate visor, TH3/LDH3. Order T25/AC for acetate visor.

  • 2023265 T25/AS: As T25/AC, in black anti-static hypalon. TH3

  • 2023257 T25/CS: As T25/AC, in butyl-viton material for additional chemical resistance. TH3

  • 5064411 T/PROCAP/PC: Procap Powered Air Helmet- Clear PC Visor - TH2/LDH2 TH2

  • 5064422 T/PROCAP/WELD: Procap Powered Air Welding Helmet - TH2/LDH2 (Order welding filters separately)
