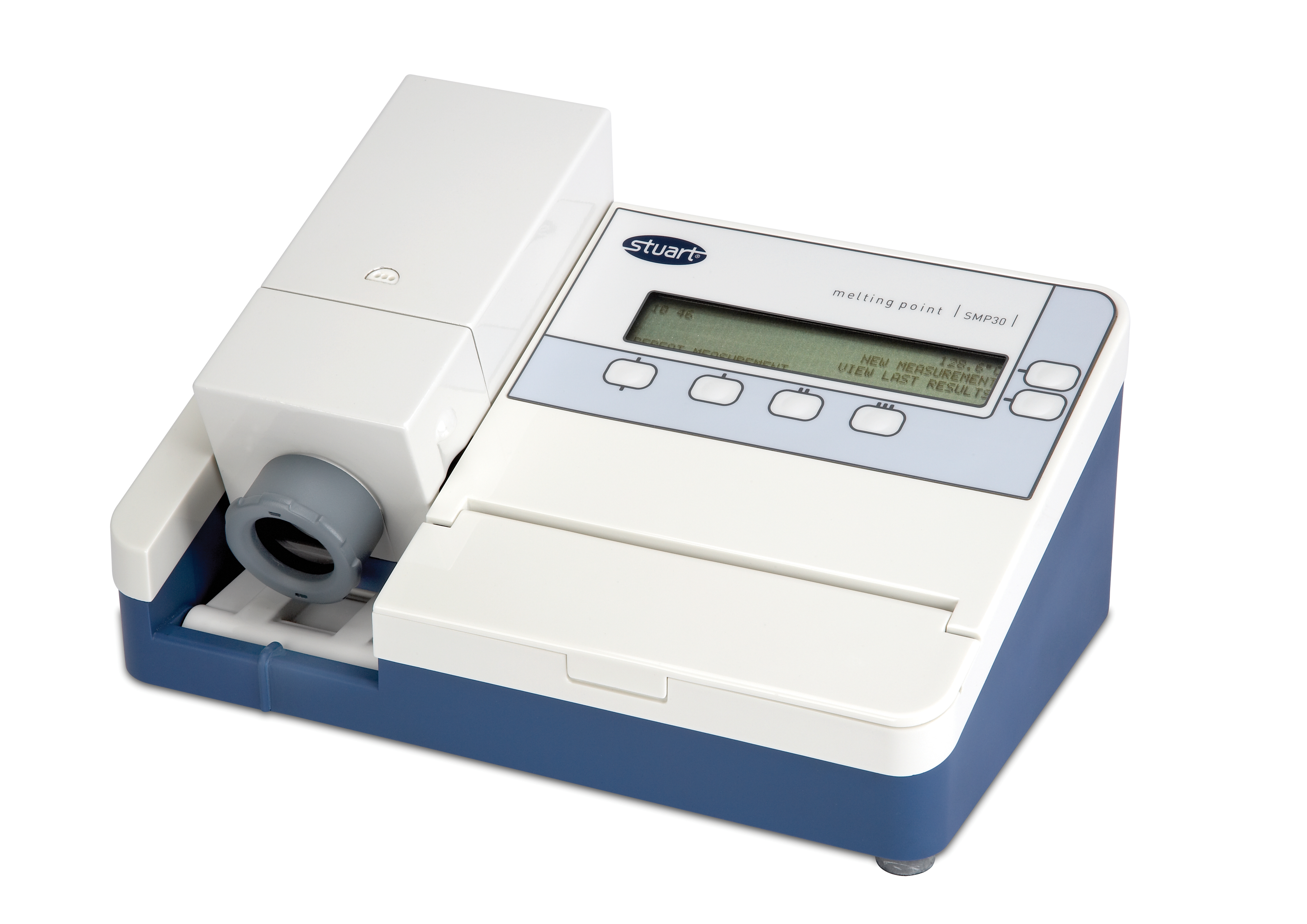

Stuart SMP30 Melting Point Apparatus


Updating the previous top level manual melting point from Stuart is the SMP30, this unit replaces the successful SMP3 with many improvements and novel features, many of which are patented, like the unique head up display that allows the user to see a display of the block temperature through the sample viewfinder.

Head up display

Whilst performing a manual melting point it is natural to glance at the temperature of the block to see when the melt should occur, unfortunately this means taking your eye off the sample, and you risk missing the start of the melt. But with the SMP30's unique patented 'head up display' a temperature display is housed within the eyepiece, so you can see the sample tubes and temperature at the same time without even having to refocus your eye. The position of the display in your eyeline can be adjusted or even switched off if you would prefer not to use this feature.

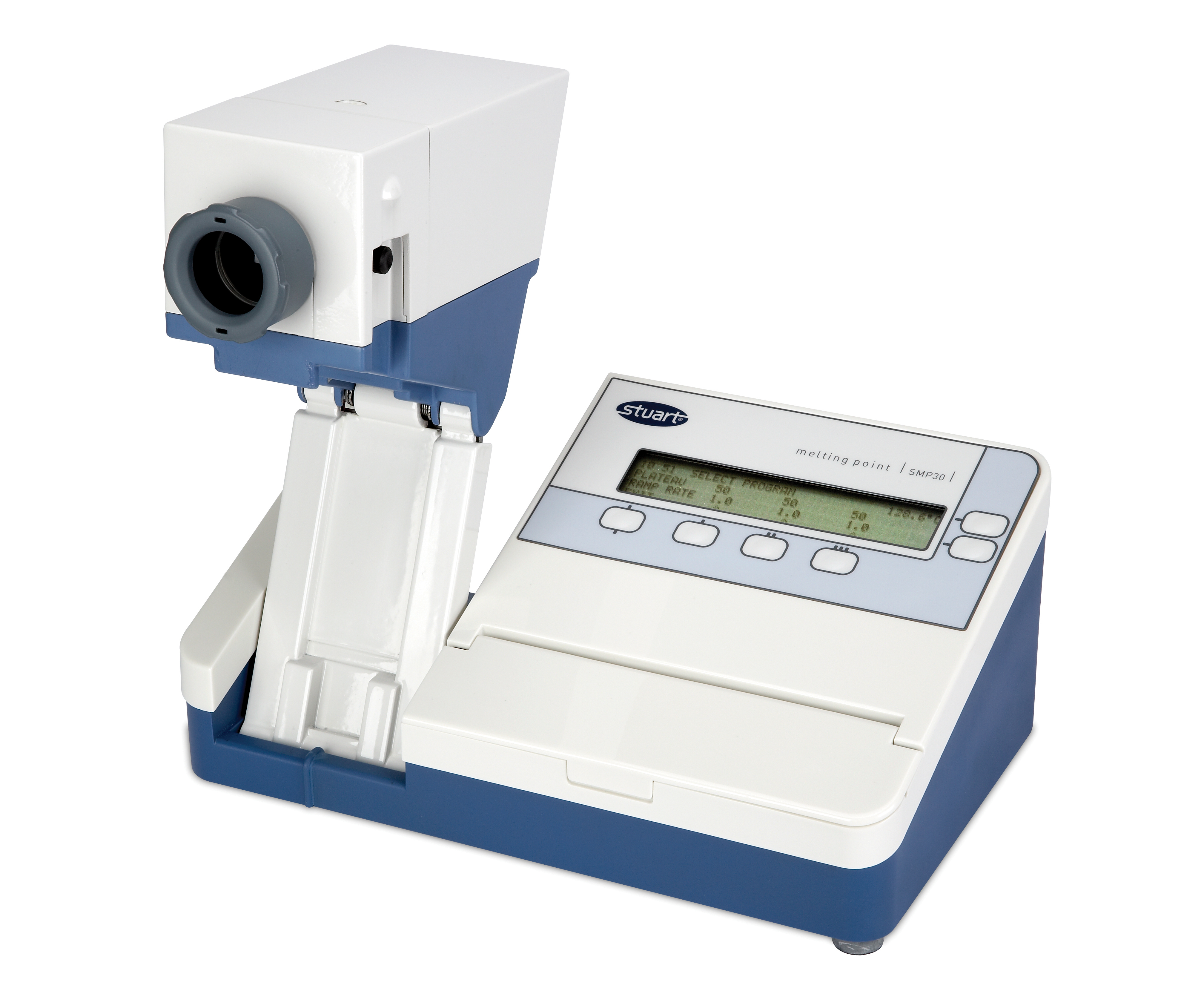

Head adjustment

It is important to be comfortable when using a melting point apparatus, that's why the SMP30 has a two way head adjustment. The head can be pivoted from the unit towards the user and then the angle of the head can be adjusted to ensure that the most comfortable viewing angle can be obtained. Once moved into position the head will firmly hold in place until moved again.

Accessory printer

To keep a more permanent record of the results an accessory printer is available which will provide printouts of each result individually, including date and time.

Block cleaning

It is inevitable that at some point in the life of a melting point apparatus that the block will need cleaning. So as with the SMP40 the SMP30 has been designed to allow easy access to the block for cleaning.

Illumination

To allow for the clearest view of the samples bright white LED's have been used to give clean, clear lighting. LED's also have the advantage of longevity over conventional bulbs.

Maximum temperature and cooling

The SMP40 has a maximum temperature of 400degC allowing a greater array of materials to be measured. Cooling from 350degC to 50degC is also possible in approximately 12 minutes allowing for fast sample throughput.


For larger views, please click on the small photos above.

Control

To assist with the melting point process the Stuart SMP30 has our largest display yet on a manual unit, the custom user interface runs on an impressive 40 x 4 character display, guiding the user through the entire process and always informing them of important information such as time and block temperature at all times.

Technical Specifications

Melting point method - Digital
No of samples - 3
Temperature range - Ambient to 400degC
Temperature resolution - 0.1degC
Display - 40 x 4 LCD touchscreen
Ramp rates - 0.5-10degC in 0.1degC increments
Temperature sensor - PT100 Platinum resistance
Memory - 8 results per tube
Accessory printer available - Yes
Date/time display - Yes
Cool down time - ~12 mins
Heat up time - ~6 mins
Electrical supply - 120V / 230V, 50-60Hz
Onboard capillary storage - Yes
In-built glass cutter - No
Language variants - English, German, French, Italian, Spanish
Temperature units - degC
Dimensions h x d x w - 325 x 200 x 170mm
Net Weight - 3.6kg



Data Sheet
Manual

Ordering Information

SMP30 - Digital melting point apparatus, 0.1degC resolution, complete with pack of 100 melting point tubes, closed at one end.
SMP30/1 - Accessory printer with power supply, only for use with SMP30
SMP2/1 - Glass melting point tubes, closed at both ends, pack of 100
SMP1/4 - Glass melting point tubes, open at both ends, pack of 100
SMP10/1 - Glass melting point tubes, closed at one end, pack of 100

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
