This product is now obsolete. To see the current Techne range, please click here.

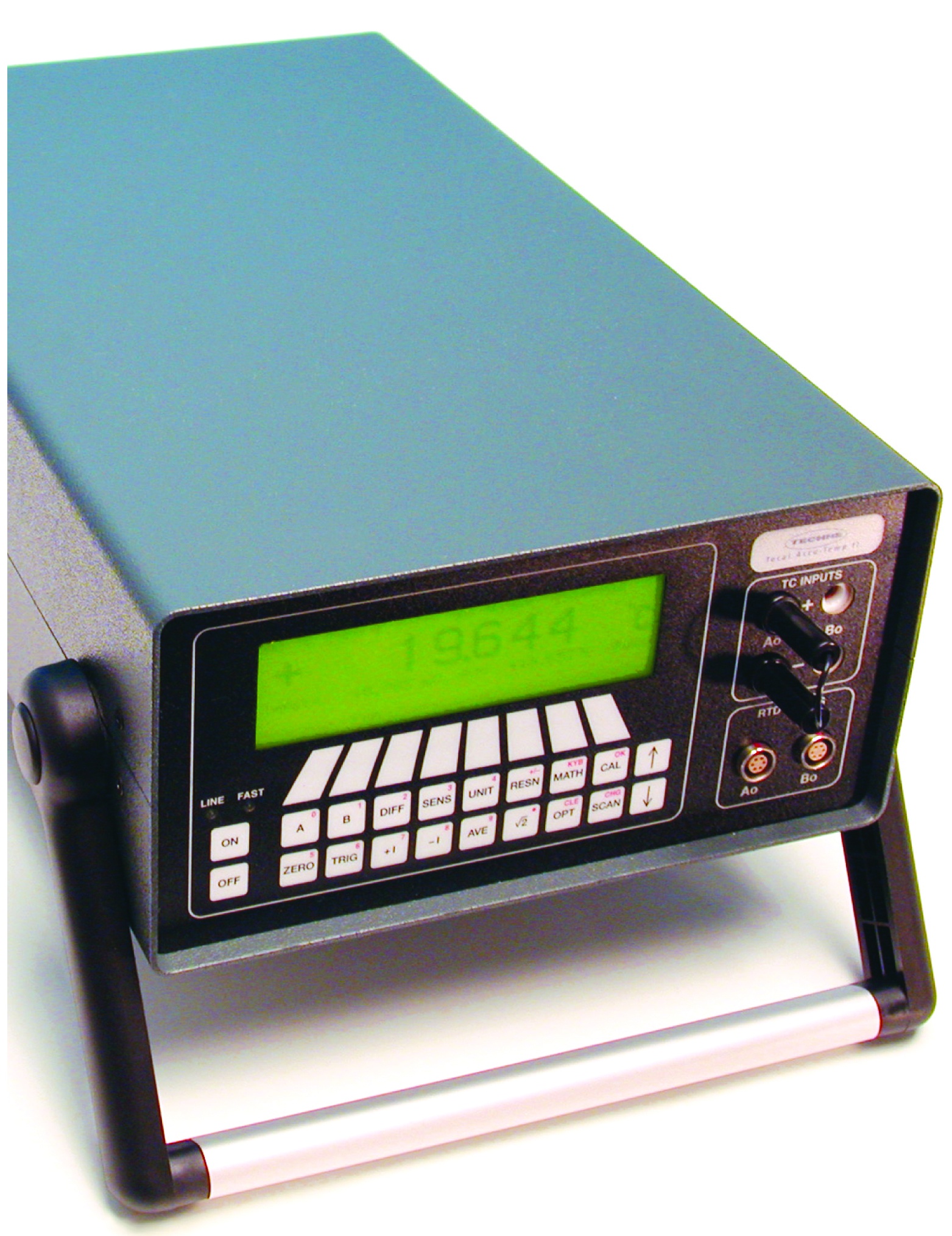

The Tecal Accu-Temp II is a high accuracy multi purpose digital thermometer for both platinum
resistance thermometers and thermocouples.
Dual Channel input allows a probe on Channel B
to be calibrated against a standard on Channel A - directly compare any combination of PRT and
Thermocouple.
The Tecal Accu-Temp II supports 13 thermocouple Types B, E, J, K, N, R, S, T, D, C,
l, U, Au/Ptand both 3 and 4 wire 100 ohm Platinum resistance thermometers and RTDs.
Accuracy of RTD and PRT measurement ?+/-0.010 ?degC
Accuracy of T/C measurement, better than ?+/-0.1 ?degC
0.001 resolution for RTDs/PRTs and thermocouples
2 measuring inputs
13 thermocouples: B, E, J, K, N, R, S, T, D, C, l, U, Au/Pt
T/C CJC internal or external
Input of RTD coefficients: Calendar Van Dusen & ITS90
Probe self-heat check
Automatic current reversal for RTDs/PRTs
Suitable for 3 and 4 wire RTDs/PRTs
Units?degC,?degF, K, mV, ohms
Math functions max/min, std. deviation & mean
Data logging 4000 values
Expandable by plugging in optional 4 input RTD or thermocouple scanner cards to 1 of 2 rear
panel slots available.
RS232 talk/listen - included
Rechargeable sealed lead acid battery: 8 hrs operation continuous
The powerful math function enables statistical analysis of the captured data, mean, max, min,
peak and standard deviation. The Tecal Accu-Temp II can be expanded by adding either a 4 input
Thermocouple or 4 input PRT card into one of the two available slots in the rear of the unit.
Ultimately two cards of the same type could be added toallow the measurement of up to 10
sensors of the same type or one PRT as a reference and nine thermocouples. Each unit includes
an RS232 cable, NIST traceable calibration, instruction manual and mains cable.
Combine the
Tecal Accu-Temp II with one of Techne's Secondary Standard PRTs, a Techne Dry block calibrator
liquid calibration bath and Techneworks software to create a thermometer and sensor calibration
system with high overall accuracy.
|
For a larger view, please click on the photo above.
Ordering Information
FACT2PD - Tecal Accu-Temp II thermometer 120 & 240v switchable 5.5kg
FACT2TC - 4 input Thermocouple scanner card 0.9kg
FACT2PC - 4 input RTD scanner card 0.9kg
FACT2LC - Front panel RTD Lemo connector 0.1kg
|
Data Sheet
|
