Techne Liquid Calibration Baths (LCB-5, LCB-7 & LCB-12)

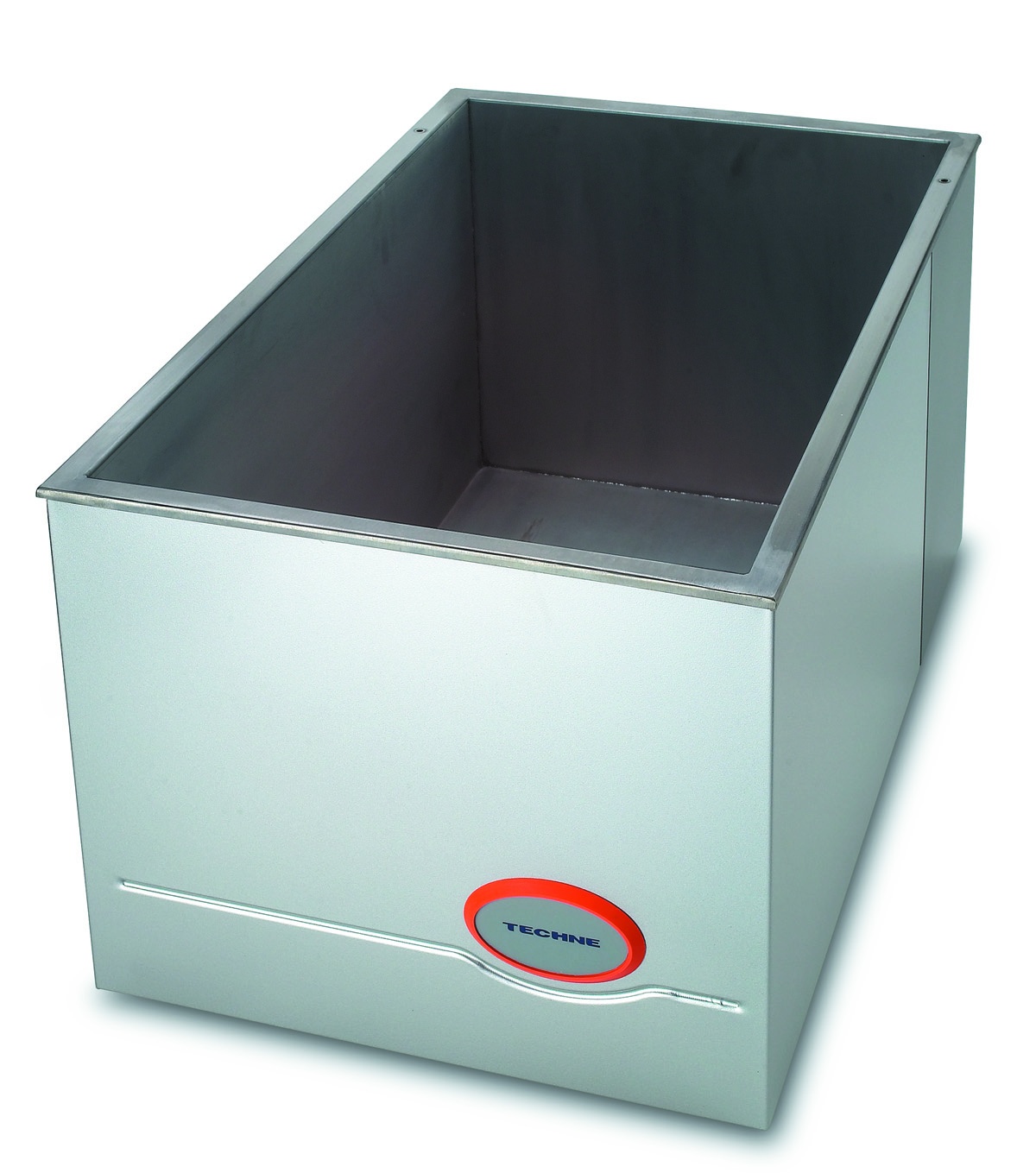

The Techne liquid calibration bath (LCB) series offer compact, accurate and reliable liquid baths which can be used for external circulation or temperature calibration of thermal sensors.

the entire temperature range. The LCBs can be also be used for external circulation to maintain temperatures of samples in viscometers, photometers, refractometers, fermenters and other reaction vessels.

All models of LCB offer exceptional thermal stability from -35°C to 250°C. The baths are fully insulated on all sides and base and are fitted with a cooling coil for connection to a cold water supply for use at temperatures around ambient. The minimum temperature achievable is -35°C when a Dip or Flow Cooler is added to the system.

Each bath is supplied complete with lid, drain tap, carry handles, a cooling coil and hole with bung to position a certified sensor.

The TechneWorks software package is available for the TU-20 thermoregulators free of charge.

  -35°C to 250°C
  Three different capacities available; 5, 7 or 12 litres
  Temperature stability; ?+/-0.005?degC depending on choice of control unit
  Fully insulated bath for excellent heat retention
  Analogue or digital temperature selection, depending on choice of control unit
  Includes cover, lid and bridging plate


For a larger view, please click on the photo above.


Data Sheet
Manual

Liquid Calibration BathLCB-5,LCB-7,LCB-12LCB-5, LCB-7, LCB-12
ThermoregulatorTU-20DTU-20HT
Bath Capacity5 or 7 or 12 litres5 or 7 or 12 litres
Operating temperature range 1-35°C to +200°Cambient +10°C to +250°C
Working temperature range 225°C to +200°C30°C to +200°C
Stability at -35°C (short term*)±0.015°CNot applicable
Stability at 0°C (short term*)±0.020°CNot applicable
Stability at 50°C (short term*)±0.005°C±0.005°C
Stability at 100°C (short term*)±0.015°C±0.015°C
Stability at 200°C (short term*)±0.024°C±0.024°C
Stability at 250°C (short term*)Not applicable±0.040°C
Uniformity °C (full range **)0.0080.008
Accuracy °C (full range)±0.5±0.5

Ordering Information

FBCAL05D LCB insulated liquid calibration bath with cooling coil, Lid and Drain, 5 litre capacity

FBCAL07D LCB insulated liquid calibration bath with cooling coil, Lid and Drain, 7 litre capacity

FBCAL12D LCB insulated liquid calibration bath with cooling coil, Lid and Drain, 12 litre capacity

FBCAL7PH LCB Probe Holder

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
