Techne RB Refrigerated Baths (RB-5A, RB-12A & RB-22A)


These baths are a complete refrigerated circulating system for open or closed applications for temperature ranges from -35C to 100C. Each bath is supplied with a lid and bridging plate.

There are three bath capacities: 7 litre (RB-5A), 12 litre (RB-12A) and 22 litre (RB-22A). Temperature control is via one of the four thermoregulators and together they offer a choice of 12 different bath combinations.

  Circulating bath with built in refrigeration
  Temperature range from -35C to 150C
  Three different capacities of refrigerated bath; 7, 12 or 22 litre
  The combination of 3 circulating baths and 4 thermoregulators provides 12 options


Data Sheet
Manual

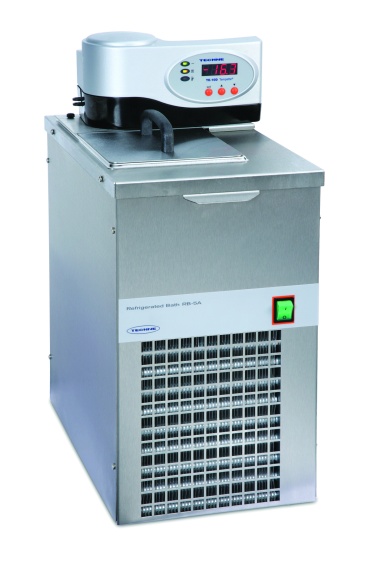

For a larger view, please click on the photo above.

SpecificationRB-5ARB-12ARB-22A
Minimum temperature-20C-35C-30C
Cooling capacity at 20C145W240W240W
Cooling capacity at 0C145W240W240W
Cooling capacity at -10C110W230W220W
Overall size including controller LWH (mm)430 x 250 x 566430 x 370 x 610430 x 395 x 565
Internal size LWH (mm)192 x 151 x 200208 x 300 x 150360 x 295 x 220
Working depth Max-Min (mm)180-135130-85200-160
Working capacity Max-Min (L)7.0-5.511.6-9.622-18
Shipping weight (excluding thermoregulator)31kg53kg61kg


Ordering Information


FRB5D RB-5A bath, 7 litre capacity with refrigeration unit, - 20C to 100C (230V, 50-60Hz)

FRB5P RB-5A bath, 7 litre capacity with refrigeration unit, - 20C to 100C (120V, 50-50Hz)

FRB2D RB-12A bath, 12 litre capacity with refrigeration unit, - 35C to 100C (230V, 50-50Hz)

FRB2P RB-12A bath, 12 litre capacity with refrigeration unit, - 35C to 100C (120V, 50-50Hz)

FRB22D RB-22A bath, 22 litre capacity with refrigeration unit, - 30C to 100C (230V, 50-50Hz)

FRB22P RB-22A bath, 22 litre capacity with refrigeration unit, - 30C to 100C (120V, 50-50Hz)

FBCAL7PH Probe holder for RB-5A



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
