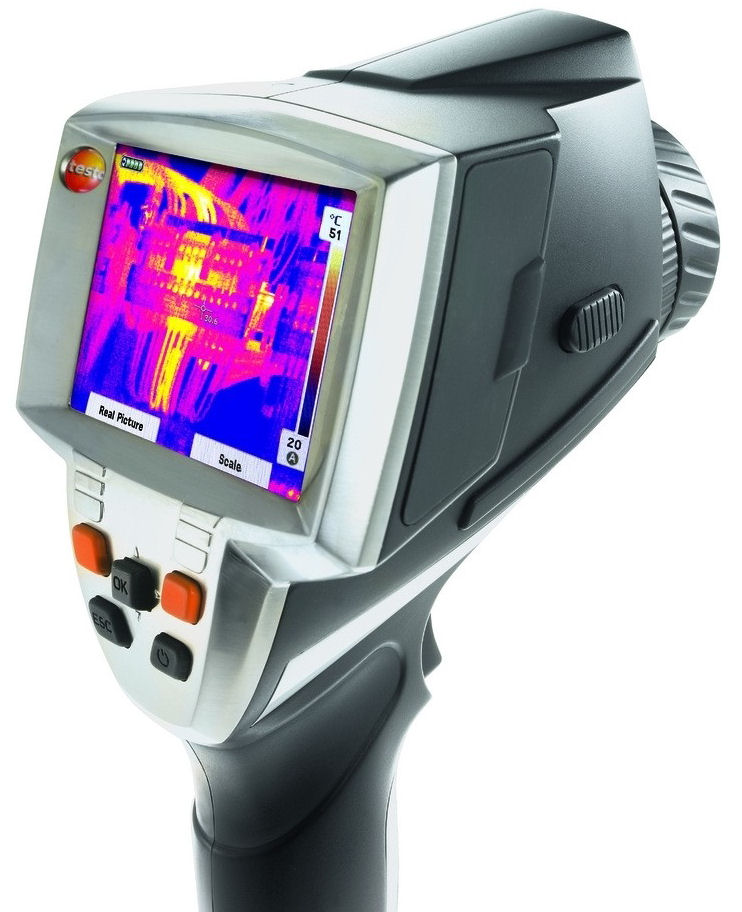

Testo 880 Thermal Imager


This product is now obsolete. For the current replacements, please see Thermal Imaging.

Infrared radiation cannot be seen by the human eye. All objects whose temperature is above absolute zero (approximately -273 degrees centigrade), emit infrared radiation.

Thermal imagers can convert infrared radiation into electric signals and display a thermal image. With the excellent image quality of the testo 880, even the smallest temperature differences can be displayed.

Exchangeable lenses ensure that the optimum image is always possible.

The integrated digital camera makes documenting images easier. Unique in thermal imagery, the testo 880 measures surface humidity with real-time humidity measurement, for identification and display of mould risk areas.

Mobile thermal imagers scan equipment or buildings and transform infrared radiation into visible thermal images with which a qualitative and quantitive analysis of temperature can be conducted.

Portable thermal imaging cameras are used in building inspection surveys as well as in mechanical and electrical inspections for preventive service and maintenance. They are used for monitoring buildings and production processes as well as for technical diagnostics.

A thermal imager is able to detect thermal anomalies, thus making the search for errors and the early implementation of preventive measures possible. Thermal imaging is able to thoroughly check materials and components without interference and exposes problem areas such as hot spots before a malfunction can occur. While other methods require production to be halted, or pipe systems to be dismantled, with the testo 880 a single glance is sufficient.

Testo 880-1

Entry level thermal imager for fast fault finding and quality assurance.

Features:

  High quality wide angle lens 32 with F1 optics
  Image refresh rate 9 Hz
  Detector 160 x 120 interpolated to 320 x 240 pixels
  NETD < 0.1C
  Manual focus
  Data storage device SD, 1 GB for approx. 800-1000 images
  Minimum focus distance 10 cm

Included as standard:

  Powerful IR software with full reporting features
  USB cable
  Li-ion battery
  High quality robust case


Data Sheet


Testo 880-2

The mid range thermal imager kit offering extensive analysis functions. Telephoto lens upgrade option available.

Features:

  High-quality wide angle lens 32 with F1 optics
  Image refresh rate 33 Hz
  Detector 160 x 120 interpolated to 320 x 240 pixels
  NETD < 0.1C
  Manual focus
  Data storage device SD, 1 GB for approx. 800-1000 images
  Minimum focus distance 10 cm

Included as standard:

  Powerful IR software with full reporting features
  USB cable
  Li-ion battery
  Lens protection glass
  High quality robust case

Testo 880-3

The professional thermal imager for complete analysis and real image documentation with built-in digital camera and dynamic motor focus.

Features:

  Built-in digital camera with power LEDs
  Dynamic motor focus
  Real-time display of surface moisture distribution with wireless humidity probe (optional)
  High quality wide angle lens 32 with F1 optics
  Image refresh rate 33 Hz
  Detector 160 x 120 interpolated to 320 x 240 pixels
  NETD < 0.1C
  Manual focus
  Data storage device SD, 1 GB for approx. 800-1000 images
  Minimum focus distance 10 cm

Included as standard:

  Powerful IR software with full reporting features
  USB cable
  Li-ion battery
  IR protective glass
  High quality robust case

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
