TSI 4080 Certifier FA Plus Ventilator Test System

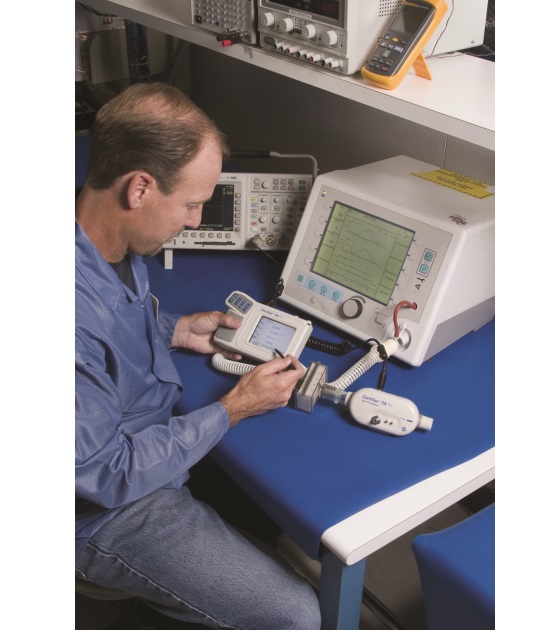

The TSI 4080 Certifier FA Plus Ventilator Test System is the full-feature system capable of testing virtually all models of ventilators: adult, pediatric, anesthesia, neonatal and high-frequency.

Key Features

  • Color touch screen graphical user interface
  • Real-time graphing mode
  • Bi-directional flow measurement
Get a Quote
TSI Instruments

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product. We offer distribution of TSI products to the UK and Ireland.

TEST PARAMETERS

  • • Flow
  • • Peak & Minimum Flow
  • • Volume (Inhaled and Exhaled)
  • • Minute Volume
  • • Low Pressure (Differential)
  • • Peak & PEEP Pressure
  • • Mean Airway Pressure
  • • Barometric Pressure
  • • Inspiratory Time
  • • Expiratory Time
  • • I:E Ratio
  • • Respiratory Rate
  • • Gas Temperature
  • • Oxygen Concentration (with optional 4073 Kit)

FEATURES AND BENEFITS

  • • Color touch screen graphical user interface
  • • Real-time graphing mode
  • • Bi-directional flow measurement
  • • Data storage using SD Flash card and internal memory
  • • Access stored data through USB interface
  • • Report printing capability
  • • Rechargeable battery plus AC operation
  • • Meets RoHS Directive 2011/65/EU

APPLICATIONS

  • • Testing ventilators

Models
  • 4080 Certifier FA+ High Flow Analyzer System

  • 4082 Certifier FA+ Low Flow Module

  • 4081 Certifier FA+ High Flow Module

  • 4088 Certifier FA+ Interface Module

  • 4073 Certifier Oxygen Sensor Kit

Accessories
  • 1040044 Certifier Mounting Bracket

  • 1040045 Low Flow Filter, Certifier FA

  • 1102091 Adapter, 22mm to 6mm

  • 1102093 Adapter, 22mm to 15mm

  • 1303741 Oxygen Sensor Cable 8", Certifier

  • 1313118 Certifier FA and FA Plus Oxygen Sensor Kit Coupling

  • 1319288 Hard Sided Carrying Case, Certifier FA

  • 1602341 High Flow Filter, 22mm, HEPA

  • 1980436 Manual, Certifier FA

  • 2917019 Oxygen Sensor Replacement, Certifier FA and FA+

  • 3002053 Pressure Tubing, Silicon, 48 inches, Certifier FA and FA+

  • 1208061 Certifier FA+ Battery Charger <(>&<)> Battery, Li-Ion, 7.4v NA

  • 1303860 Certifier FA+ Printer Cable, USB Mini-A to Standard-B, 1 meter

  • 1980560 Manual, Certifier FA+

  • 1208059 Certifier FA+ Battery Charger, Li-Ion, 7.4v NA

  • 1040219 Certifier FA+ Flow Module Cable, Coiled 4pin Mini-DIN

  • 8912 Certifier FA+ AC Adaptor, 12V, 2.1mm Barrel Jack

  • 1303754 USB Cable (1 Meter / 3 ft), USB-A to USB Mini-B)

  • 1611330 Airway Pressure Fitting with Screen

  • 1611221 High Pressure Port Adapter, Certifier FA+

  • 1500108 SD Flash Memory Card

  • 6001503 Protective Rubber Boot, Certifier FA+ Display

  • 1602342 Low Flow Filter (use with Certifier FA+ and Model 4143x)

  • 1319289 Soft Sided Carrying Case with TSI Logo

  • 1208056 Lithium-ion Battery, 7.4V 1850 mAH, Certifier FA+
