TSI VELOCICALC Rotating Vane Anemometer

Model 5725

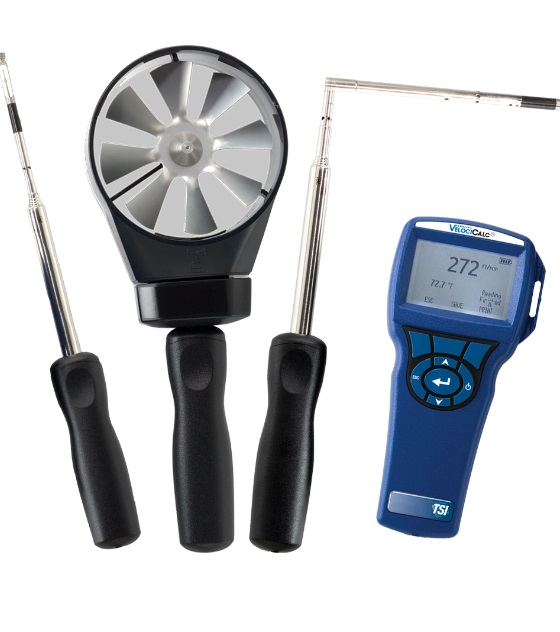

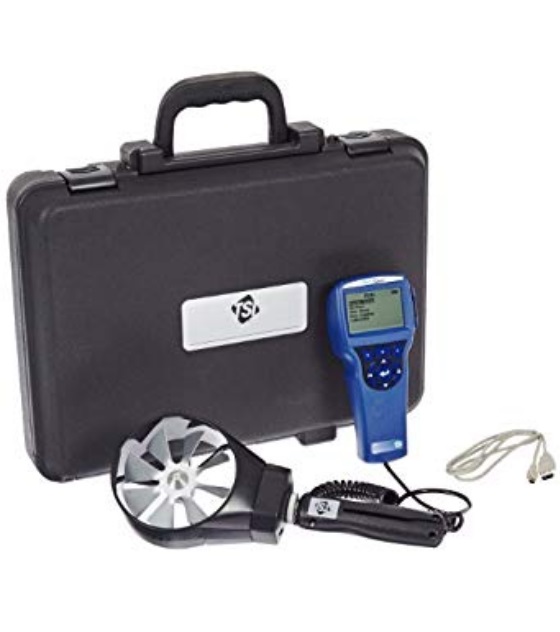

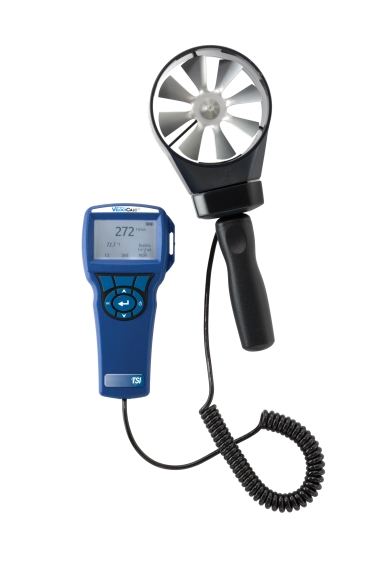

The VELOCICALC 5725 is a high performance, yet simple to use, rotating vane anemometer. High accuracy and reliability make the VELOCICALC 5725 the professionalís ideal tool for measuring unevenly distributed or fluctuating flows through heating and cooling coils, diffusers, grilles, and filters.

It accurately measures air velocity and temperature, calculates flow rate, performs averaging, and can determine minimum and maximum readings. Using sweep mode you can quickly provide one averaged reading of velocity or volume over a large measurement area. The large vane head automatically averages velocity and volume readings. The VELOCICALC 5725 includes variable time constant, sampling and statistics functions and data logging capability.

Applications

  Heating and cooling coil analysis
  Diffuser and grille measurements
  Fume hood face velocity tests
  Indoor air quality tests
  Filter face velocity measurements

Features and Benefits

  Reversible 4-inch (100 mm) head to read supply and exhaust flows
  Calculates volumetric flow rate when user inputs duct shape and size, or area
  Sampling function records multiple point measurements
  Automatic averaging of air velocity
  Simultaneously displays velocity and temperature
  Sweep mode for one overall measurement
  Optional 36-inch telescopic probe available
  Compatible with optional Aircone flow hoods

Data Logging Features

  Logs 12,700+ samples with a time and date stamp
  Recall, review, store data
  LogDat2ô downloading software included




Data Sheet
Manual

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
