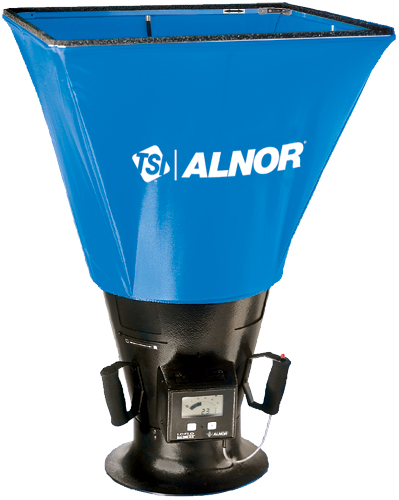

TSI 6200, 6200D, 6200E and 6200 LoFlo Balometer Capture Hoods

The TSI LoFlo Balometer® Capture Hoods are the ideal way to measure very low volumetric flow, measuring (supply or return flows) confidently and accurately from 10 to 500 cfm (17 to 850 m3/h).

Key Features

  • Uses 4 C-size alkaline batteries
  • Weighs only 6.5 lb (3 kg) with 2 ft x 2 ft (610 mm x 610 mm) hood attached
  • Simulated analog display shows air trends and digital readings
Get a Quote
TSI Instruments

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Easily observed trend values and fast meter response make the LoFlo Balometer Capture Hood the preferred tool of residential air balancers.

The LoFlo Balometer Capture Hood is mainly used in residential or light commercial applications for taking measurements from 10 to 500 cfm (17 to 850 m3/h).

The compact size allows them to be used where full size hoods would not fit such as over bathroom stalls or filing cabinets.

Models
  • 6200 LoFlo Balometer with 16" x 16" (406 mm x 406 mm), 8" (200 mm) tall hood

  • 6200D LoFlo Balometer with 2' x 2' (610 mm x 610 mm) hood

  • 6200E LoFlo Balometer with no hood

Accessories
  • 6200F LoFlo Balometer with 16" x 16" (406 mm x 406 mm), 18" (460 mm) tall hood

  • 634620085 LoFlo Balometer hood and frame kit,16" x 16" (406 mm x 406 mm) - 18"

  • 634620110 LoFlo Balometer hood and frame kit - 2' x 2' (610 mm x 610 mm)

  • 634620120 LoFlo Balometer hood and frame kit 16" x 16" (406 mm x 406 mm) - 8" tall

  • 634620130 LoFlo Balometer hood and frame kit - 26" x 26" (650 mm x 650 mm)

Replacement Parts
  • 346620055 Carrying Case for LoFlo Balometer 2'x2' (610mm x 610mm) hood and frame

  • 346620056 Carrying case, LoFlo Balometer instrument

  • 634620060 Support pole kit, four, used with 16" x 16" (406 mm x 406 mm), 8" (200

  • 634620050 Support pole kit, four, used with 2' x 2' (610 mm x 610 mm) hood

  • 534620070 2' X 2' (610 mm x 610 mm) hood fabric

  • 534620085 16" x 16" (406 mm x 406 mm) hood fabric, 18" (457 mm) tall

  • 634620061 Support pole kit, four, used with 16" x 16" (406 mm x 406mm) 18" (457

  • 534620080 16" x 16" (406 mm x 406 mm) hood fabric, 8" (200 mm) tall

  • 634620030 Replacement Bracket & Pin LOFLO BALO

  • 801588 C-cell battery pack
