TSI 8537 DustTrak Environmental Enclosure

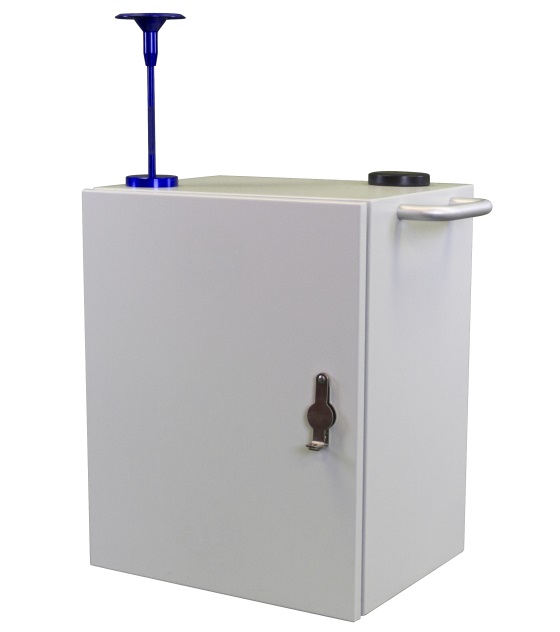

Built upon proven DustTrak™ technology that thousands of people use every day, the TSI 8537 DustTrak Environmental Enclosure is a pole-mounted, weatherproof enclosure custom built to house DustTrak units for long-term, outdoor monitoring.

Key Features

  • Optional accessories: Internal Battery System, Heat Shield, Solar Power System, Cloud Data Management System and Heated Inlet Sample Conditioner
  • Lockable, secure enclosure
  • 360° omni-directional sampling inlet specifically designed to sample efficiently in a broad range of wind conditions
Get a Quote
TSI Instruments

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

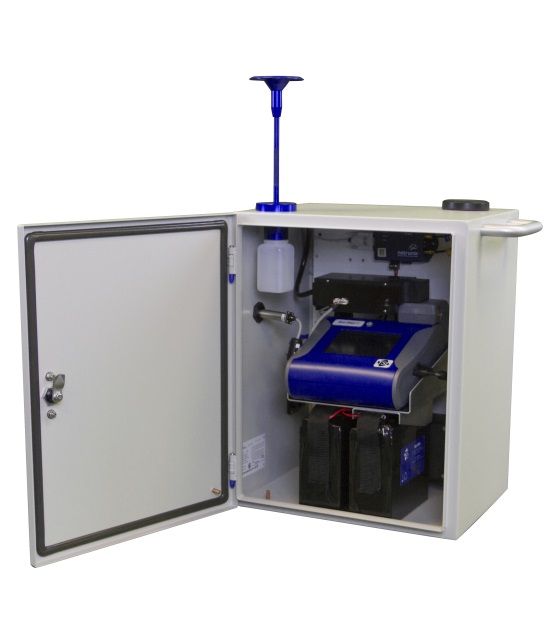

The custom designed, NEMA 3R rated metal case protects the DustTrak™ II or DustTrak DRX Aerosol Monitor for long-term outdoor monitoring applications. The built-in electrical panel provides electrical connections to power the DustTrak Aerosol Monitor and optional accessories through the optional internal battery system or power supply adaptor.

APPLICATIONS

  • Outdoor environmental monitoring
  • Fugitive emissions monitoring
  • Site perimeter monitoring
  • Fence-line monitoring
  • Dust control operations
  • Environmental research studies
  • Construction sites
  • Harsh industrial environments
  • Urban pollution studies

INCLUDED ITEMS

  • NEMA 3R metal enclosure
  • 360° omni-directional sampling inlet
  • Water trap

8537 Environmental Enclosure and Accessories
  • 8537 8537 NEMA 3R Rated Pole-Mounted Environmental Enclosure. Includes: 360 degree omni-directional sampling inlet with extended rain cap, water trap bottle, internal equipment bracket with Velcro straps, dust caps, sampling tubing, plugs, o-rings, weatherproof AC/DC power supply.

  • 8537 Pole Mounting Kit. Includes straps for mounting to 4-6" (10-15 cm) pole.

  • 801846 8537 Solar Heat Shield

  • 801850 Heated Inlet sample conditioning module with Auto Zero Module

  • 801851 Heated Inlet (only) for Model 8535

Wireless / Cloud Communication Systems
  • 801833 Node power connection cable and USB communication cable.

  • 801900 Netronix Thiamis GSM/GPS Modem. (requires data plan)

Power Systems
  • 801807 Environmental Enclosure Internal Battery System (Replaces P/N 801801). Includes: (2x) 22Ah 12V batteries (P/N 801808); Battery Charger (P/N 801809).

  • 801845 Additional Battery Mounting Kit For 8537

  • 801817 Dual Battery Wiring Harness. Enables parallel connection of two 22Ah battery packs to the DustTrak inside the Environmental Enclosure.

  • 801808 Replacement Single 22 Ah Battery Pack. Replaces Part #801802.

  • 801809 Replacement Battery Charger. Replaces part # 801803.

  • 801811 Solar Power System for DustTrak II and DRX Environmental Enclosure

  • 801812 Replacement solar panel for Solar Power System.

  • 801813 Replacement charger controller for Solar Power System.

  • 801814 Replacement battery for Solar Power System.

  • 801842 8535 SPARE DC PWR SUPPLY 170-250VAC,2.5A

Replacement Parts and Accessories
  • 801840 Replacement DC power cable (Enclosure to Solar Power System). Length 10 ft (3 m).

  • 801567 Environmental Enclosure 360 degree Omni-Directional Sampling Inlet with Extended Rain Cap

  • 801506 Environmental Enclosure respirable sampling inlet with Dorr-Oliver 10mm nylon cyclone.

  • 801831 8537 Environmental Enclosure spare parts kit. Includes: water trap bottle, Velcro straps, conductive tubing, connection fitting, O-rings.

Netronix GSM/GPS Cloud Communication Data Plan
  • 802910 Environet monthly data plan (includes activation fee and 3 months of data access). After 3 months, renews monthly. Hibernation is not allowed during first three months plan.

  • 802915 Environet 12 month data plan. (activation fee is waived)

  • 802919 Monthly Hibernation fee. Monthly fee for hibernating a node. The data plan will be extended for the number of months hibernated. Hibernation is not available during first 3 months of 3-month plan.
