HomeEnvironmentalDust Monitors › TSI Models EDTPM2.5, EDTPM10 & EDTDRX Environmental DUSTTRAK Aerosol Monitors


TSI Environmental DUSTTRAK Aerosol Monitors

Models EDTPM2.5, EDTPM10 & EDTDRX


Built upon the trusted DustTrak technology, the TSI Environmental DUSTTRAK Aerosol Monitors use the same platform that is used by thousands of people each and every day.

The challenge of outdoor environmental monitoring has been met with this reliable solution, packaged in three convenient system configurations. Each system is fit for purpose dependent upon what mass fraction you want to measure.

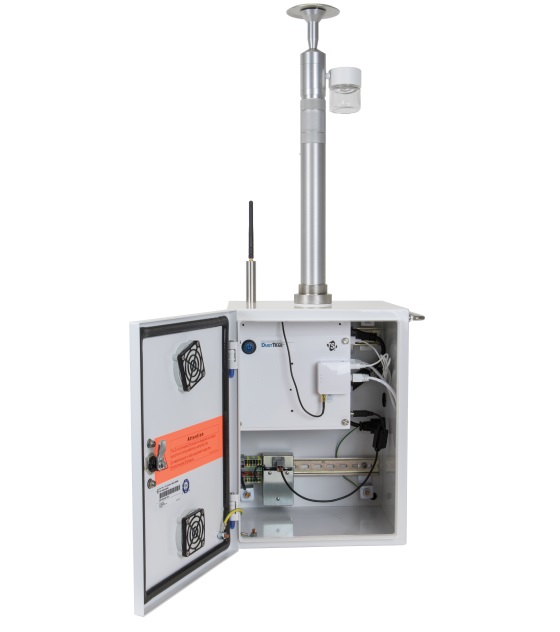

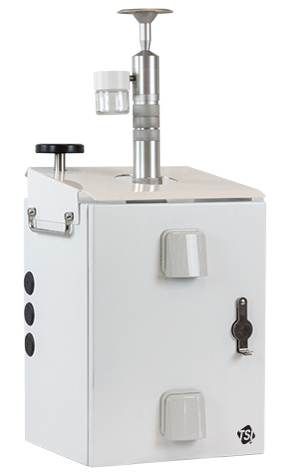

The newly enhanced Environmental DustTrak Photometer is housed in a compact, weather-proof enclosure, alongside other newly designed key components, including long-life pump, built-in auto zero module, and optional heated inlet and internal heater accessories.

This system, combined with the Cloud Data Management System, make the TSI Environmental DUSTTRAK Aerosol Monitors the most efficient, flexible, and affordable solution for providing real-time access to dust measurement data.

Features and Benefits

  Conveniently packaged solutions for measurement of PM10, PM2.5, or simultaneous PMTotal, PM10, PM2.5 & PM1.0
  Robust design enables long-term runtime in environments from -4 to 122F (-20 to 50C)*
  Field-replaceable, longer-life pump increases measurement uptime (life expectancy >10,000 hours)
  Optional heated inlet sample conditioning improves measurement accuracy in humid environments >50% RH
  Real-time access to secure data and sophisticated alert system via the Cloud Data Management System

* Requires internal heater option



Applications

  Fugitive emissions monitoring
  Site perimeter monitoring
  Fence-line monitoring
  Environmental remediation
  Construction and mining sites
  Hazardous waste sites
  Dust control operations


Data Sheet

System Accessories


854041 Heated Inlet Sample Conditioner

854031 Pole Mounting Kit

854020 PM10 Impactor

854021 PM2.5 Impactor

854022 PM1.0 Impactor

854033 Solar Shield

854060 Solar Power System



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
