TSI PVM610 & PVM620 Micromanometer

Model 5725

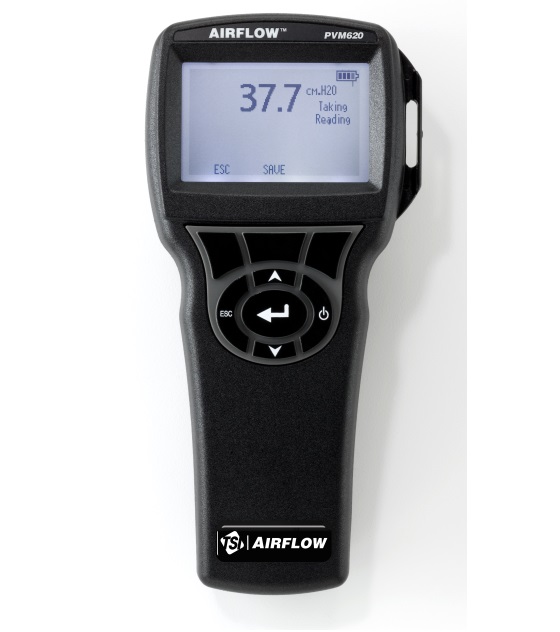

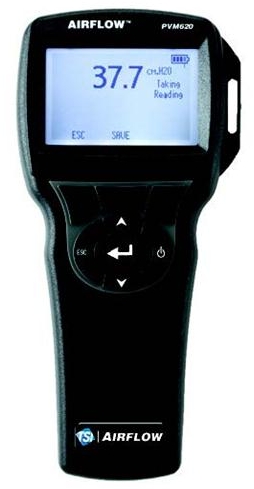

The PVM620 is a rugged, compact, comprehensive Micromanometer that measures pressure, and calculates velocity and volumetric flow rate. It can be used with Pitot tubes to measure velocity and then calculate flow rates with user–input duct size and shape. Premium features make it ideal for HVAC, environmental safeguards, commissioning, process control and system balancing.

The PVM610 is an easy to use, hand held digital Micromanometer for fast, accurate and reliable pressure measurement. It can also calculate velocity.

Features and Benefits

  Measure differential and static pressure from -3735 to +3735 Pa (-15 to +15 in. H2O)
  Calculate and display velocity when using a Pitot tube

Added Features PVM620

  Calculates volumetric flow rate in duct from velocity and user-input duct size and shape
  Records data points in duct traverse using sampling function
  Data logging with time and date stamp
  Includes LogDat2™ downloading software
  Programmable K factors

Applications

  HVAC commissioning and troubleshooting
  Testing and balancing
  Pitot tube duct traverses
  Static pressure measurements
  Environmental air flow testing




Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
