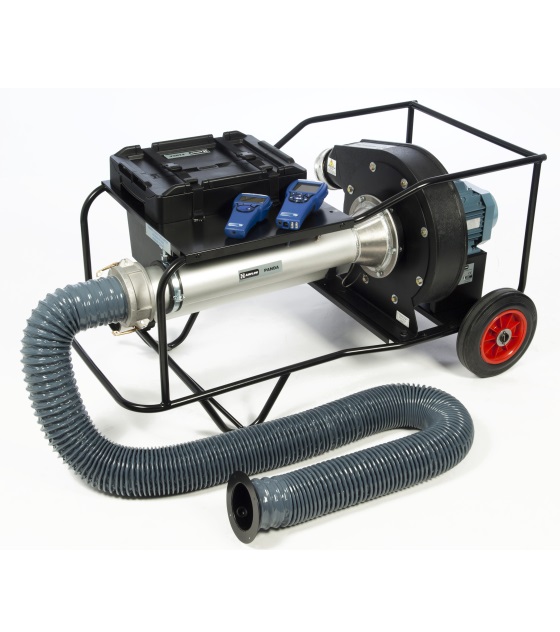

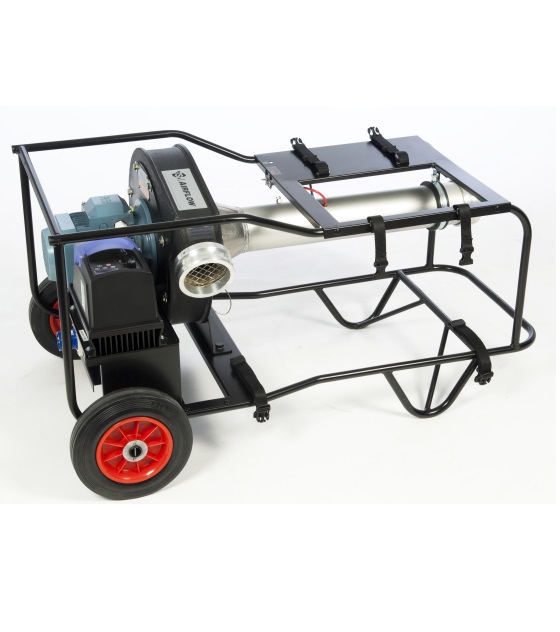

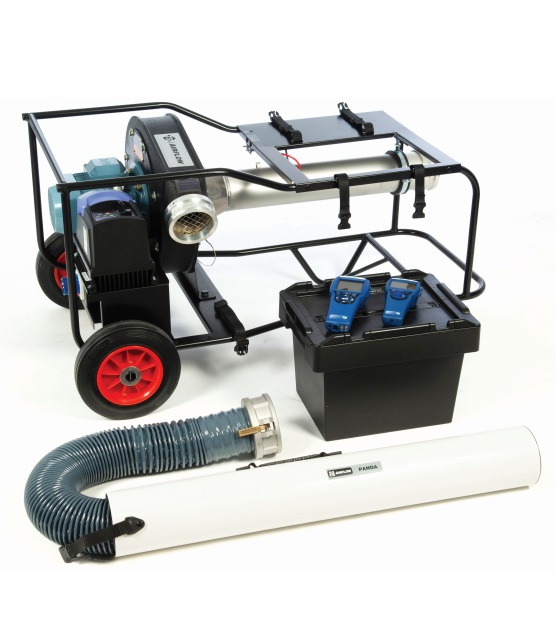

TSI PAN315 & PAN341 Positive and Negative Duct Accreditation (PANDA) System

The Positive and Negative Duct Accreditation (PANDA) system provides contractors, commissioning engineers, and research and development technicians with the best in class choice of test equipment to quantify air leakage in ductwork and other areas as well as the ability to measure the performance of ducted systems. The PANDA provides a fast, accurate, automated solution and helps to ensure compliance with EN12237, EN1507, EUROVENT 2/2 and SMACNA standards, enhancing energy savings in buildings.

Features

  Positive and Negative Duct Leakage Testing in one rig
  Energy savings by testing and minimizing duct leaks
  Compliant with the following standards: EN12237 Ventilation for Buildings—Ductwork Strength and Leakage of Circular Sheet Metal Ducts, EN1507 Ventilation for Buildings—Sheet Metal ducts with Rectangular Section—Requirements for Strength and Leakage, EUROVENT 2/2 Air Leakage Rate in Sheet Metal Air Distribution Systems and SMACNA Air Duct Leakage Testing
  Accuracy is ± 2,5% of volume flow
  Unique performance and fan speed control charge up of duct system to test static pressure within minutes
  Carry weight 45 kg (99 lbs.)
  Fits in the back of vans and estate cars

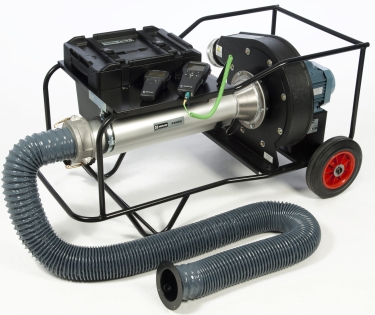

  Model PAN341 comes with standard Airflow TA465-P Multi-Function Instrument and PVM610 Micromanometer:

– Automatically calculates leakage rate in real time
– Simultaneous displays flow leakage rate and static pressure
– Provides a pass/fail indication for a given tightness class
– Automatically corrects actual volume flow leakage rate to Standard Temperature and Pressure (STP)
– Monitors barometric pressure and temperature in real time
– Stores data that can be downloaded for report generation and documentation
– Works with Model 8934 Portable Printer




Data Sheet
PANDA Duct Leakage Rates with the Low Flow Nozzle below 0.8 l/s (1.7 cfm)

This range includes models Model PAN341, Model PAN341-110, Model PAN315 and Model PAN315-110.

The PAN315 is a version without the instruments, for customers who already own a TA465-P and PVM610 or PVM620. It also provides a lower cost solution for customers wishing to upgrade to the new PAN341. You can buy a PAN315 as you already have the instruments.



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
