Floor Standing Ovens

These ovens - with fan assisted air circulation only - extend the range of laboratory ovens to provide more capacity than is normally found in a laboratory and are available in 400 or 800 litre capacities. The ovens are ideally suited for the drying of considerable quantities of glassware or large individual pieces.

Whilst using the same components as the smaller models, the ovens will accept a greater number of trays, or without trays can be used for processing large components. With a large number of trays fitted they will process quantities of thin sheet materials.

The folded sheet metal case provides a strong and relatively lightweight unit. With a two-tone light grey stoved powder paint finish, the ovens fit comfortably into laboratory surroundings.

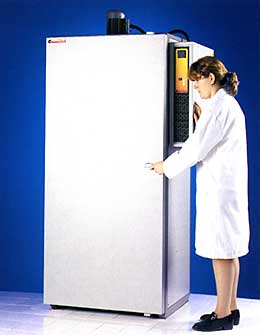

 Peak series floor standing oven

FLOOR STANDING OVENS
Model PF400 PF800
Max Temp (°C) 250 250
Chamber Dimensions(mm)
height
width
depth
1500
605
510
1500
1200
510
External Dimensions(mm)
height
width
depth
1970
980
720
1720
1585
1000
Chamber Capacity (litres) 400 800
Weight (Kg) 200 280
Shelves
(number supplied)
(max possible)
(max dist load/shelf kg)
(max load kg)
3
30
10
75
3
30
10
100
PERFORMANCE
Power Rating
at 240 V (watts) 		6000 9000
Holding Power*
at max temp (watts) 		2200 3500
Temperature Uniformity*
(at max temp as a %) 		+/-1.7 +/-1.7
Temperature Stability
on/off control (°C) 		+/-1.0 +/-1.0
Temperature Stability
PID control (°C) 		+/-0.2 +/-0.2
Heat Up Times* (mins) 240V
100°C
200°C
300°C
15
40
85
17
45
100
Recovery Times* (mins)
door open 60secs 240V
100°C
200°C
300°C

10
12
25

12
15
30
Air Exchanges vol (l/h) 12000 12000
Air Exchanges - exchanges/hour 30 15
Note: A uniformity of +/-1% = +/-1°C at 100°C.
* With vents closed






Typical oven applications include:
  • drying
  • warming
  • sterilising
  • ageing
  • curing
  • burning-in
  • stability testing
  • softening
  • annealing
  • enamelling
  • baking
  • bending
  • tempering
  • pre-heating
  • soldering


    • Typical incubator applications include:
  • incubation of culture tests
  • drying slides
  • microbiological incubators
  • germination tests
  • egg incubation
  • weight loss substitutes
  • bacteriological tests
    • complete temperature control
