Earth Points, earth boss and insulator

furse


Earth points with pre-welded tails

Description

Weight

Part no
As PC100-FU with prewelded 500mm long tail of 70mm˛ PVC insulated earth cable.
0.56kg
PC105
As PC101 with prewelded 500mm long tail of 70mm˛ PVC insulated earth cable.
0.56kg
PC106
As PC102 with prewelded 500mm long tail of 70mm˛ PVC insulated earth cable.
0.56kg
PC107
As PC103 with prewelded 500mm long tail of 70mm˛ PVC insulated earth cable.
0.56kg
PC108
As PC110 with prewelded 500mm long tail of 70mm˛ PVC insulated earth cable.
1.14kg
PC111
As PC115 with prewelded 500mm long tail of 70mm˛ PVC insulated earth cable.
0.84kg
PC116
As PC120 with prewelded 500mm long tail of 70mm˛ PVC insulated earth cable.
0.84kg
PC121
As PC125 with prewelded 500mm long tail of 70mm˛ PVC insulated earth cable.
0.84kg
PC126

Earth points with pre-welded tails


Earth boss

Length
Diameter
Thread Size
Weight each
Part no
50mm
50mm
M10
0.79kg
EB001

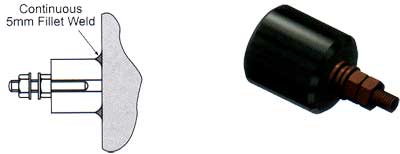

Made of mild steel to BS 970 230M07 (ENIA) with phosphor bronze stud and nuts. For welding to steel vessels/tanks/structures.

Earth boss

Insulator

Description

Thread size

Weight
Part no

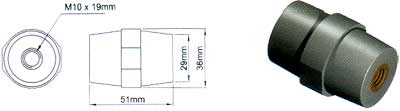

Insulator with 2 studs and 3 nuts
M10
0.22kg
IN005
Insulator only
M10
0.14kg
IN013

Insulator

pdf
Earth Points, earth boss and insulator
