How to apply earthing equipment

Solid copper and stainless steel rods

furse


Solid copper rod

Furse solid copper earth rods offer greater resistance to corrosion. They are ideally used in applications where soil conditions are very aggressive, such as soils with high salt content.

Connections to the rods can be by mechanical clamps, compression or by Furse 's own "Furseweld" exothermic welding system.

Diameter

Length

Weight each

Part no
15mm
1200mm
1.88kg
RC010
20mm
1200mm
3.34
RC015

BS 7430, BS 6651

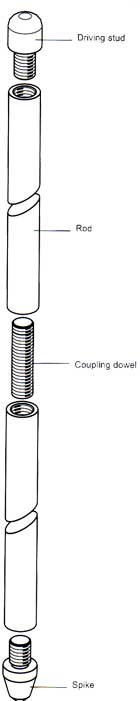

Fittings

Type

Weight each

Part no

15mm Driving stud
0.02kg
ST010
20mm Driving stud
0.05kg
ST015
Coupling dowel for both sizes of above rods
0.02
SP013
15mm Spike
0.02kg
SP010
20mm Spike
0.04kg
SP015

Stainless steel rod

Stainless steel rods are used to overcome many of the problems caused by galvanic corrosion which can take place between dissimilar metals buried in close proximity. Furse stainless steel earth rods are highly resistant to corrosion.

Connections to the rods can be by mechanical clamps, compression or by Furse's own "FurseWELD" exothermic welding system.

Diameter

Length

Weight each

Part no
16mm
1200mm
1.87kg
RS005

Fittings

Type

Weight each

Part no

15mm Driving stud
0.02kg
ST010
Stainless steel coupling dowel
0.02kg
CG005
5/8" Coupling
0.13kg
SP010

BS 7430, BS 6651

pdf
Earth rods

Solid copper and stainless steel rods
