Structural lightning protection design considerations

Conductor fixings
furse

Slate holdfast

For use with bare tape

Conductor Size
DC Clip Colour
Weight each
Part No
25x3mm
Brown
0.06kg
HF015
25x3mm
Grey
0.06kg
HF020

For use with PVC covered tape

Conductor Size
Colour

Weight
Part No
25x3mm
Brown
0.06kg
HF025
25x3mm
Black
0.06kg
HF030
25x3mm
Grey
0.06kg
HF040
25x3mm
Stone
0.06kg
HF045

Tail length 500mm.

Slate holdfast


Back plate holdfast stem
Material
Stem Height

Weight Each

 Part No
Copper
78mm
0.30kg
 HF320
Aluminium 78mm 0.10kg HF325-FU

Recommended fixing - round head woodscrew 1 1/2 " x no.10 and wall plug. For use with the appropriate DC clip etc. Supplied with M6 fixing screw.

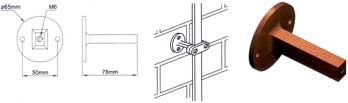

Back plate holdfast stem




Test and junction clamps


Square tape clamp
Conductor Size
Material

Weight Each
Part No
25x3mm
Copper
0.23kg
CT105-FU
25x6mm
Copper
0.42kg
CT110
31x3mm
Copper
0.30kg
CT113
50x6mm
Copper
0.98kg
CT115
25x3mm
Aluminium
0.07kg
CT005

Recommended fixing - countersunk woodscrew 1 1/2 " x no.10 and wall plug. For forming straight through, cross or tee joints in tape.

Square tape clamp

Oblong test or junction clamp
Maximum Conductor Size
Material

Weight Each
Part No
26x8mm
Copper
0.029kg
CN105
26x8mm
Aluminium
0.012kg
CN005

For straight through tape joints.

Oblong test or junction clamp

|
