Terminal lugs furse



Straight Type Lug

A
mm

B
mm

C
mm

D
mm

E
mm
Part no
20
3
45
10
8.5
LS101
25
3
50
12
8.5
LS102
25
3
50
12
10.5
LS103
31
6
75
15
10.5
LS104
31
6
75
15
12.5
LS105
38
5
75
18
10.5
LS106
38
6
75
18
10.5
LS107
38
6
75
20
12.5
LS108
50
6
95
25
10.5
LS109
50
6
95
25
12.5
LS110

Straight Type Lug

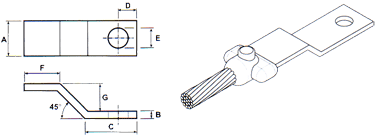

Cranked Type Lug

A
mm
B
mm

C
mm

D
mm
E
mm
F
mm
G
mm
Part no
20
3
40
10
8.5
40
10
LC101
25
3
45
12
8.5
40
10
LC102
25
3
45
12
10.5
40
10
LC103
31
6
50
15
10.5
40
15
LC104
31
6
50
16
12.5
40
15
LC105
38
5
55
18
10.5
40
15
LC106
38
6
55
18
10.5
40
15
LC107
38
6
55
20
12.5
40
15
LC108
50
6
75
25
10.5
60
20
LC109
50
6
75
25
12.5
60
20
LC110

Cranked Type Lug

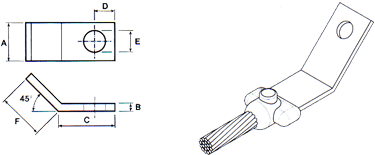

Offset Type Lug

A
mm
B
mm

C
mm

D
mm
E
mm
F
mm
Part no
20
3
40
10
8.5
40
LO101
25
3
45
12
8.5
40
LO102
25
3
45
12
10.5
40
LO103
31
6
50
15
10.5
40
LO104
31
6
50
16
12.5
40
LO105
38
5
55
18
10.5
40
LO106
38
6
55
18
10.5
40
LO107
38
6
55
20
12.5
40
LO108
50
6
75
25
10.5
60
LO109
50
6
75
25
12.5
60
LO110

Offset Type Lug


Terminal Lugs
