3 decimal place resolution

  1, 2 or 3 point pH calibration

  Choice of pH calibration buffer types

  Differential pH input

  32 reading memory

  Back lit custom LCD

  RS232 serial interface and analogue outputs

  Wall mounting option

The Model 3510 is a versatile unit which utilises the best of modern technology to simplify operation without sacrificing accuracy or reliability. The meter supports 1, 2 or 3 point pH calibration on either manually entered pH buffer values, or automatically temperature compensated buffers to DIN, JIS and NIST.

With pushbutton operation and a customised liquid crystal display, determination of pH, mV and associated temperature levels can readily be achieved with the minimum of operator training. The meter includes a 32 reading memory facility. Remote monitoring and data collection is facilitated by the provision of both analogue and digital outputs and in the event of power removal all user defined parameters are retained.

Data Sheet
Manual

For larger views, please click on the small photos above.

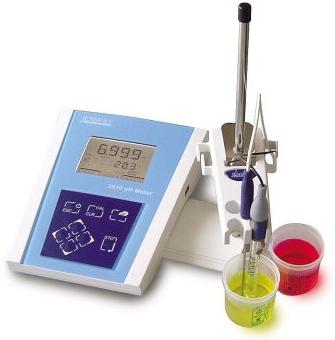

351 001 - Model 3510 pH meter supplied with glass combination electrode (924 005), electrode holder, ATC probe (027 500), pH 4, 7 and 10 buffer sachets, UK power supply, BNC shorting plug (009 146), condensed operating instructions and instruction manual

351 101 - Model 3510 pH meter supplied with glass combination electrode (924 005), electrode holder, ATC probe (027 500), pH 4, 7 and 10 buffer sachets, US power supply, BNC shorting plug (009 146), condensed operating instructions and instruction manual

351 201 - Model 3510 pH meter supplied with glass combination electrode (924 005), electrode holder, ATC probe (027 500), pH 4, 7 and 10 buffer sachets, European power supply, BNC shorting plug (009 146), condensed operating instructions and instruction manual

351 301 - Model 3510 pH meter supplied with glass combination electrode (924 005), electrode holder, ATC probe (027 500), pH 4, 7 and 10 buffer sachets, 230V leaded power supply, BNC shorting plug (009 146), condensed operating instructions and instruction manual
