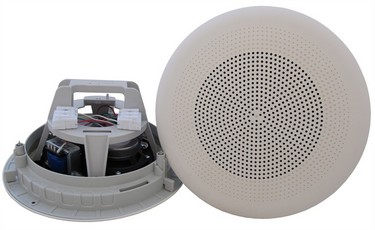

DNH Loudspeakers BP(F)-660(T) A+B

The DNH BP(F)-660(T) A+B is a 2 x 3 inch, 2 x 6 watt fast fitting, flush mounting ceiling loudspeaker, manufactured from non-corroding, UV stable white plastic. This device has two separate terminal blocks, transformers and drivers to allow connection to independent systems for redundancy purposes.

With a maximum sound pressure level of 102dB(A), this lightweight loudspeaker is designed for internal installation and is suitable for voice and background music applications. BPF version is weather proof to IP54.

Two four step transformers are fitted to the line voltage models that allows adjustment of sound output by altering the power consumption.

This product mounts directly into a false/suspended ceiling.

Typical applications include offshore accommodation safe areas.

This loudspeaker is available in the following standard versions:

Supplied without plastic dust box

BP-660 A+B low impedance (8 ohm or 20 ohm)
BP-660T A+B line voltage transformer (70/100V)

Supplied with plastic dust box

BPF-660 A+B low impedance (8 ohm or 20 ohm)
BPF-660T A+B line voltage transformer (70/100V)

Other impedances or transformer voltages to order.

DNH Loudspeakers BP(F)-660(T)A+B

BP-660 A+B Data Sheet
BPF-660(T) A+B Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
