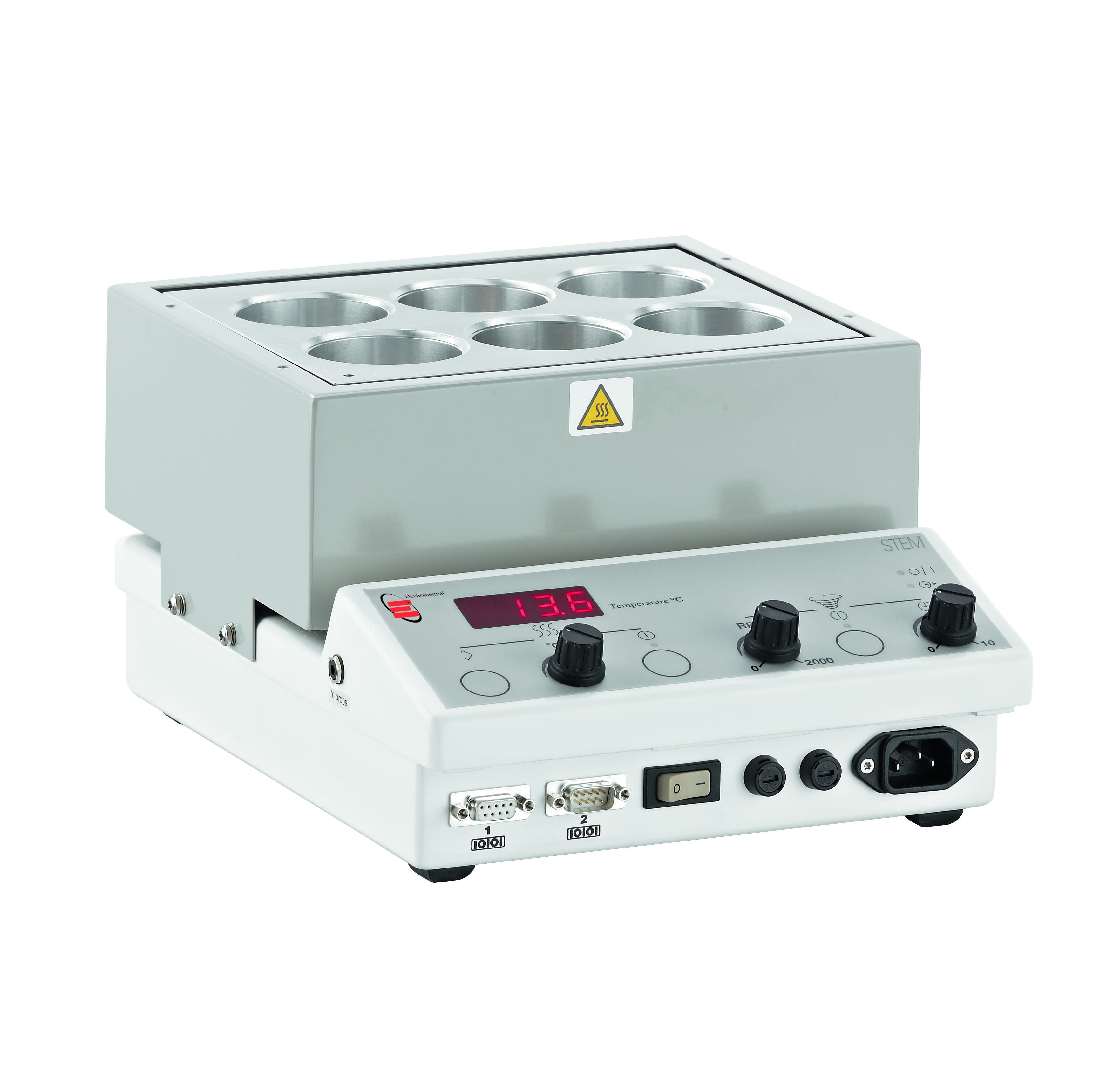

Electrothermal RS600 STEM Reaction Blocks

These heating and stirring reaction blocks can be used for a wide rang of applications from simple synthesis to process optimization.

  Six position reaction block designed for 57.5mm diameter vessels (also 40mm and other diameter vessels with appropriate adapter sleeves), and sample sizes up to 250ml
  Controlled temperature range from ambient +5°C to 250°C
  Powerful stir speed from 400 to 2,000rpm, including a bi-directional stirring option
  Manual control or external control is via the RS232/RS485 interface port
  Optional PC-based external control software is available to schedule stir/heat profiles over varying time delays
  Reflux and inerting head accessory, plus a range of accessories including rotary evaporator adapters, phase separation heads, filtration adapters, glass condensers, temperature probes, and a selection of stir bars
  High temperature RS600H option with temperature range from ambient +5°C to 300°C


Data Sheet
Manual

High Resolution Photos

Models in this range include PS80034.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
