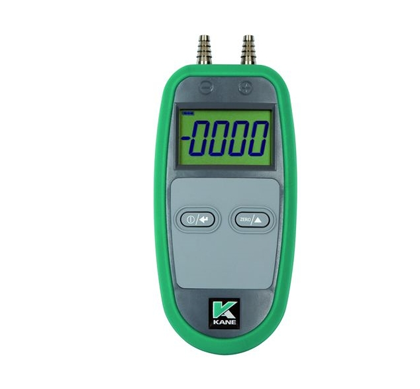

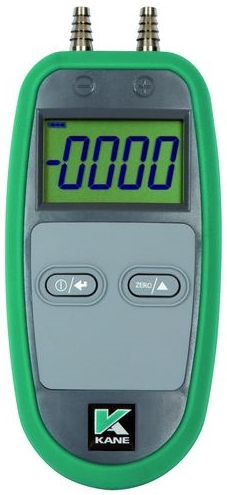

Kane 3200 Series Differential Pressure Meter


The Kane 3200 differential pressure meter is the new “entry level” pressure meter from KANE that combines ease of use, with accuracy and affordability for anyone who needs to take stable pressure measurements. It is ideal for measuring gas supply pressures, burner pressures and even the differential pressures across fan interlock switches.

The Kane 3200 Differential Pressure Meter includes:

  Battery
  Calibration report
  Rubber hose
  Storage pouch
  Manual

Specifications of the Kane 3200 Differential Pressure Meter:

  +/-200 mbar range
  8 user selectable scales
  Temperature compensated
  One button zeroing
  Long battery life
  Robust case with integrally moulded protective boot
  Integral magnets for hands free operation


Manual



Technical Specification

  Accuracy: +/- 0.5 mbar or +/- 0.5% of reading whichever is greater
  Maximum over range: Without damaging the sensor is 1000 mbar
  Battery life: Is greater than 250 hours continuous operation with a 9 V PP3 alkaline battery
  Ambient Temperature range: 0°c to +50°c
  Ambient Humidity: Is 10% RH to 90% RH non-condensing

Kane is now known as Kane International Ltd.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
