Micronics Portaflow 440IP


  Carry Case: The PF440IP is supplied in a hard wearing IP67 case
  B Transducers: 50mm OD to 2000mm OD pipe, IP68 rated
  Flow Velocity Range: 0.1m/s to 10m/s. Bi-directional subject to pipe size
  Accuracy: -/+ 0.5% to 3% dependent on flow and pipe size
  Turndown Ration: 200:1
  Transducer Operating Temp: -20C to +135C
  Outputs: Isolated 0/4 20mA; USB, 5v pulse @ 1 pulse/sec max
  Data Logging: 198,000 data points. Up to 20 named recording blocks. Data displayed locally in text or graph format. Real time or stored. Can be downloaded via USB port to Windows based PC.
  Battery Life: >150hrs with continuous measurement and can be programmed to take intermittent readings at intervals of up to 1 hour enabling the meter to operate on its internal batteries for up
  to 4 months on a continuous basis.

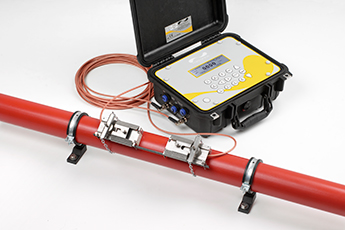

The Portaflow PF440IP is a brand new device from the Micronics range of clamp-on flow meters which gives an accurate measurement from outside of the pipe!

The PF440IP offers users an easy to use device which provides extremely accurate flow measurement. It is simple to set up, therefore results can be recorded within minutes of receiving the products.

The Micronics device has a rugged appearance and comes with a sturdy IP7 carry case. The device has been developed to perform in the toughest environments, whilst always maintaining sustainable and accurate results.



Data Sheet
Manual

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
