Micronics Ultraflo 2000


  Simple set-up menu.
  Current, pulse or set point outputs.
  High temp. Transducers-option.
  Energy meter version.

The Ultraflo 2000 is a “Transit Time” ultrasonic flowmeter designed to work with clamp-on transducers, enabling accurate measurement of liquid flowing within a closed pipe, without the need for any mechanical parts to be inserted through the pipe wall and into the flow system. The Ultraflo 2000 is therefore simple to install requiring no shut downtime, with the added advantage of no pressure drop or contact with the process liquid.

The Ultraflo 2000 has been designed for permanent metering on a pipe range of 13mm up to 5000mm and is supplied with transducers and mounting hardware to suit the application. The Ultraflo displays volumetric flow rate in a wide range of units, linear flow rate in metres and feet per second with total volume flow displayed up to a maximum of 12 digits.

Additional facilities offered by the Ultraflo are a 4-20 mA flow proportional output, Pulse output or Set point, Negative flow indication and Display/Output variable damping, helping the Ultraflo cope with poor and unstable flow conditions. All outputs are configured to interface with different types of data collection systems including Building Management Systems.

An optionally available version, the Ultraflo 2000HM, can be used to meter Heat or Energy. By using the ultrasonic transducers to measure the flow and two PT100 temperature sensors to measure the flow and return temperature, the amount of Heat/Energy used can be displayed as kW, kCal/hr, MJ/min and MJ/sec. Flow rate, Total flow and Temperature differential are also displayed. The Heatmeter version has two 4-20mA remote outputs to monitor these measurements as well as pulse output to record Total flow or Energy.

The instrument is able to work on a wide variety of pipe sizes from 13mm up to 5000mm, simply by selecting the correct transducers and attaching them to the outside of the pipewall using the mounting hardware provided.

The setup operation is easily accomplished on the push button keypad with the user only requiring to know the pipe dimensions and the type of pipe wall material. All other application parameters can be measured by the instrument itself.

ELECTRONICS

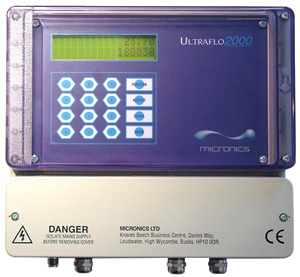

THE Ultraflo 2000 electronics are housed in an ABS, IP67 enclosure. The complete system including transducers have been CE approved. Programming of the Flowmeter and Heatmeter is carried out using the keypad incorporated in the housing. Simple set up instructions are displayed after entering data on pipe size, pipe material and application data (liquid type and temperature). Follow the instructions on the display, connect the transducers as instructed and mount on the pipe at the specified separation distance. The instrument is now ready to read flow. All application and calibration data is password protected to prevent programmed data being changed inadvertently, whilst the clear front cover and the backlit display protect the keypad and ensure that the instrument is easy to read in poor lighting conditions.

FLOW MEASUREMENT PRINCIPLE

When ultrasound is transmitted between the two transducers X and Y, the speed at which the sound travels through the liquid is accelerated slightly by the velocity of the liquid in the pipe. When ultrasound is transmitted in the opposite direction the flow of the liquid causes the transmitted sound to decelerate.

The subsequent time difference is directly proportional to the flow velocity in the pipe. Having measured the flow velocity and knowing the pipe cross-sectional area, the volumetric flow can easily be calculated. Micronics engineers have developed a measurement technique which has the ability to resolve extremely small time differences down to 25 pico seconds (25 x10-12 seconds), therefore giving extremely good performance on small pipes or in large pipes with low velocity flows.

FLOW TRANSDUCERS

Transducers are supplied according to the application information given when placing an order. All transducers are clamped to the outside of the pipe wall with the rugged mounting hardware provided. Transducers are available to operate on pipework from 13mm up to 5000mm and at temperatures between -20°C and +200°C. The electronics are connected to the transducers via coax cable which can be as much as 200 metres long without affecting performance.

FLOW RANGE

The Ultraflo 2000 will measure the flow of clean and dirty liquids in full pipes with a velocity range of 0.02 m/sec to 12 m/sec. The flow range of the meter is dependent on the pipe size and the liquid velocity, which determines the selection of transducers that are supplied with each instrument. The instrument can be reprogrammed to use different transducers in other different modes in order to overcome signal strength difficulties, ease installation problems or to re-adjust the flow range of the instrument, should it be required.

HEAT METERS

The Heatmeter has been designed for general purpose energy monitoring using clamp-on flow and temperature transducers. The Heatmeter combines a flow measurement generated by using the ultrasonic “Time of Flight” technique to measure flow with the temperature differential input generated by a pair of PT100 temperature transducers, the combined output produces a measurement of heat or energy used. The Heatmeter version gives two 4-20mA outputs that can be used to monitor either the Flow, Energy or Temperature Differential. The pulse output can be used to record Total Flow or Total Energy.


Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
