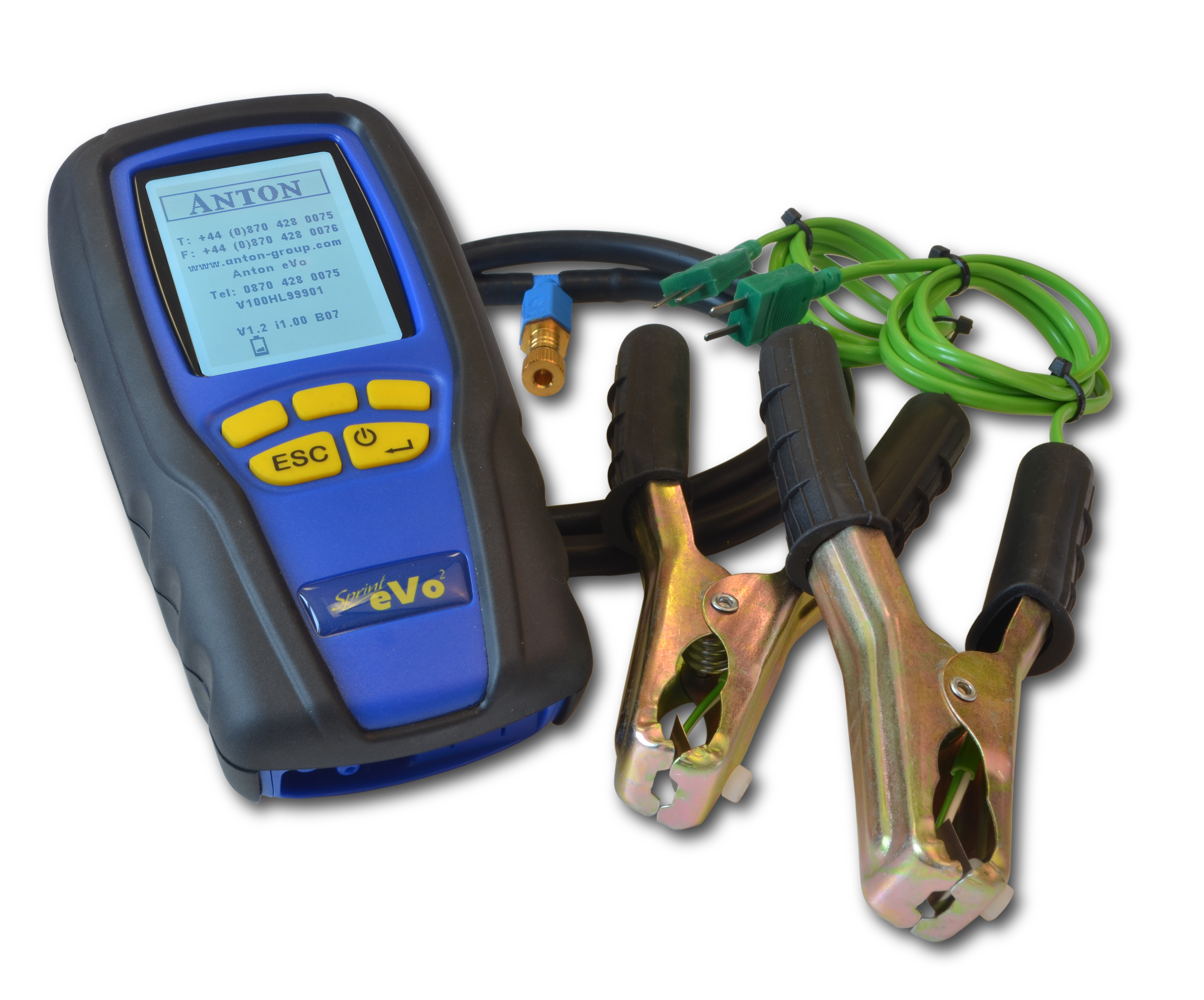

Anton Sprint eVo Multi Function Flue Gas Analyser
The eVo has landed! Following on from Anton's market leading and award winning Sprint V range sees the
launch of the new improved Sprint eVo Range of intuitive multi-function analysers. The new range boasts
many improvements including enhanced software, improved graphic screen technology and the introduction
of the new FreeVo flue probe with its unique moisture extraction system.
The Sprint eVo range, with its advanced menu driven software, has a total of 10 separate reports which can be printed on site, including flue gas analysis, differential temperature, let-by/tightness test, working pressure, operating pressure and five separate CO room safety test reports with appliance selection, which will run for the required duration according to BS7967. All printouts have a signature column that can be used either by the customer or the engineer. Printouts also include the serial number and the calibration due date of the instrument used to carry out the test.
The Sprint eVo range has many new features to simplify the work of the heating engineer, whom have an ever increasing number of responsibilities, driven by changes in legislation and constant technological improvements.
Standard Features
|

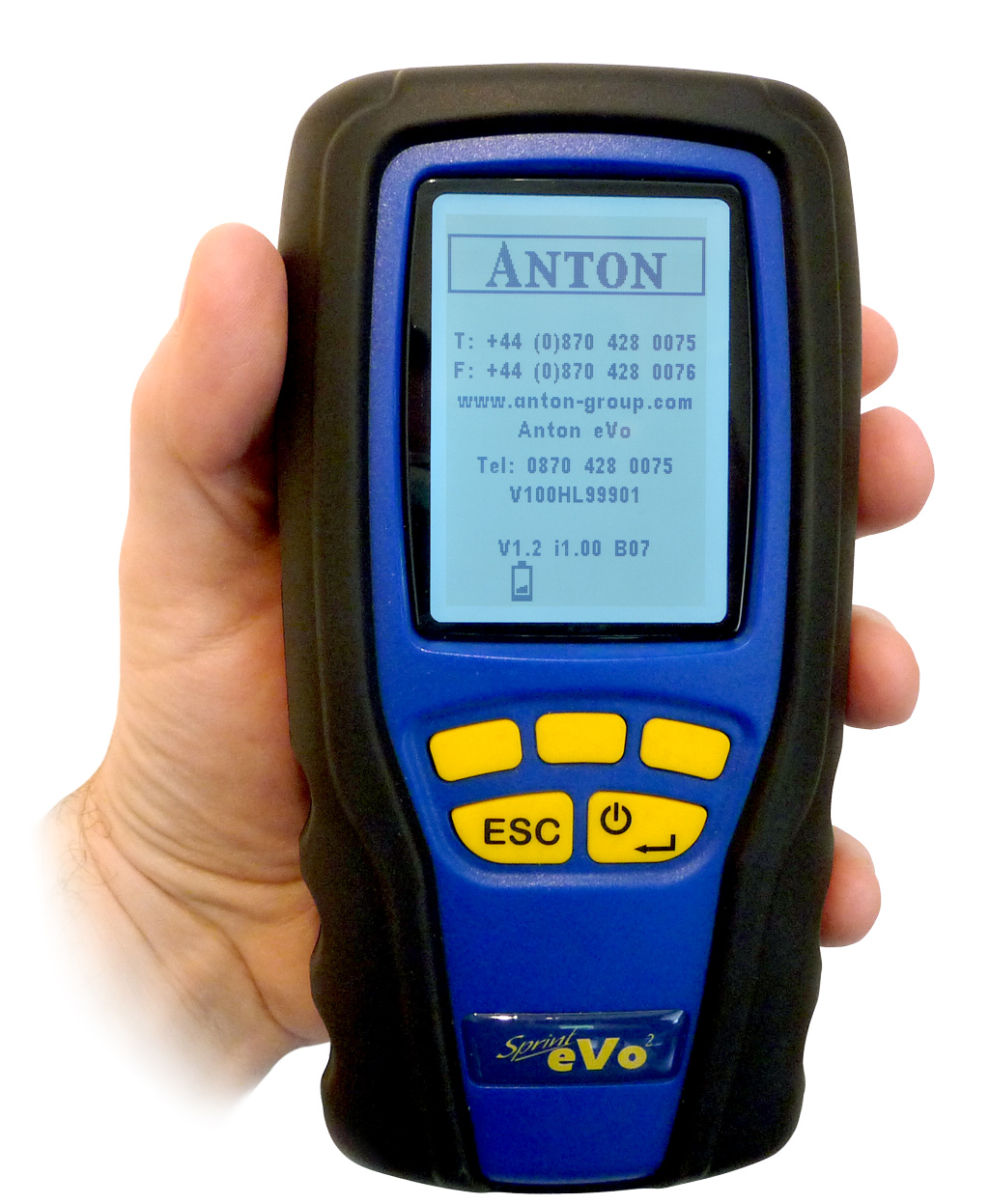

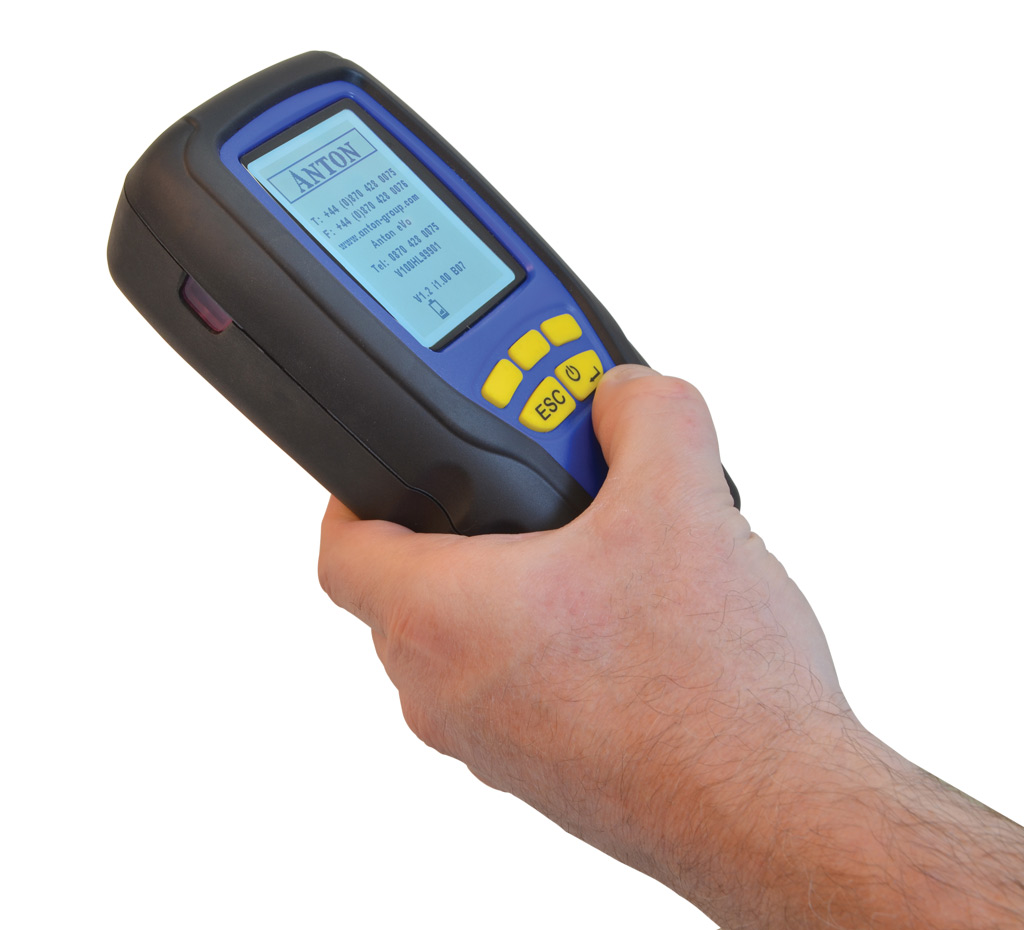

 Improved smaller ergonomic design with over moulded protection
Enhanced simple to use, intuitive menu driven software
CO, CO2, CO/CO2 ratio, O2, XS air, temperature, efficiency with printout

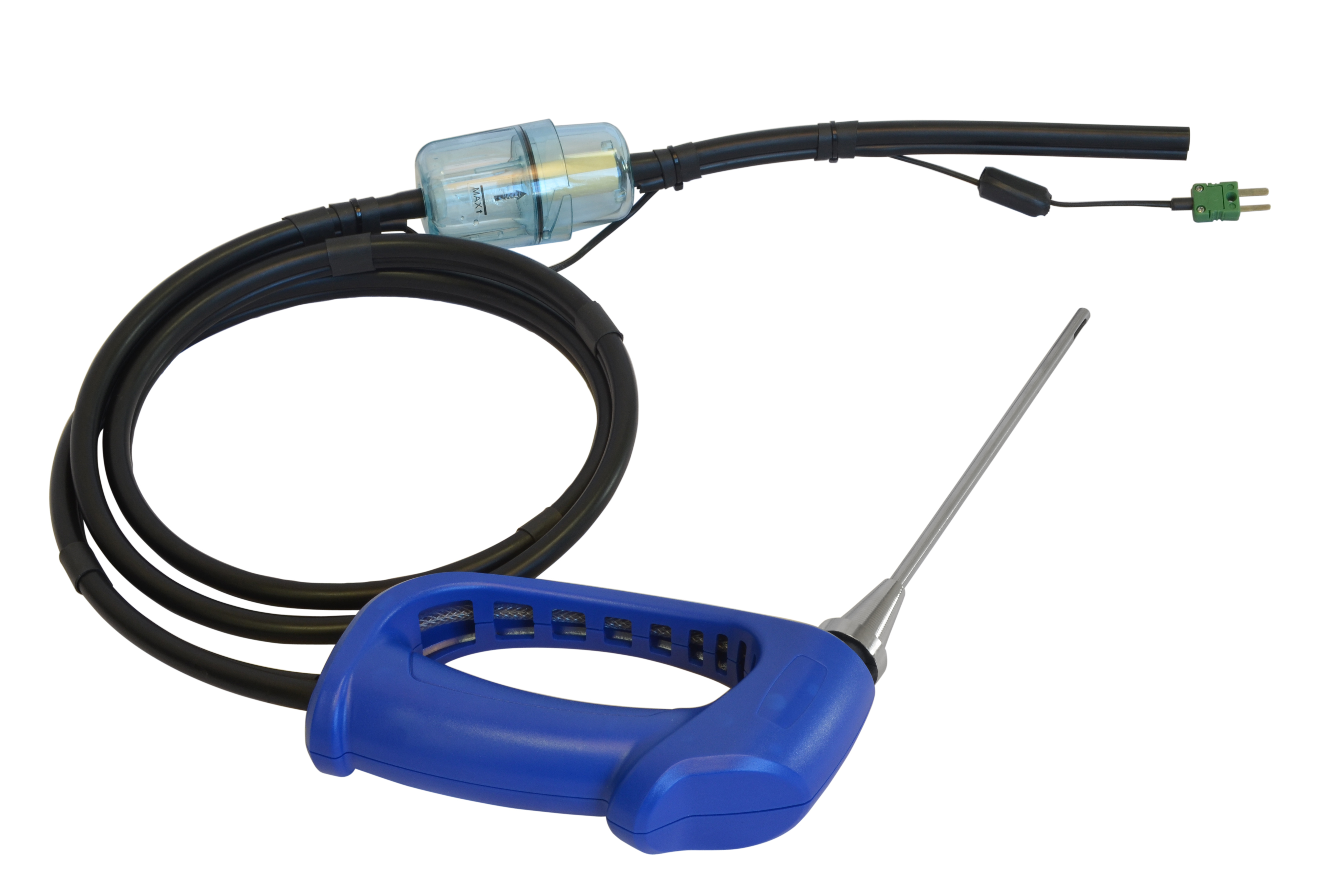

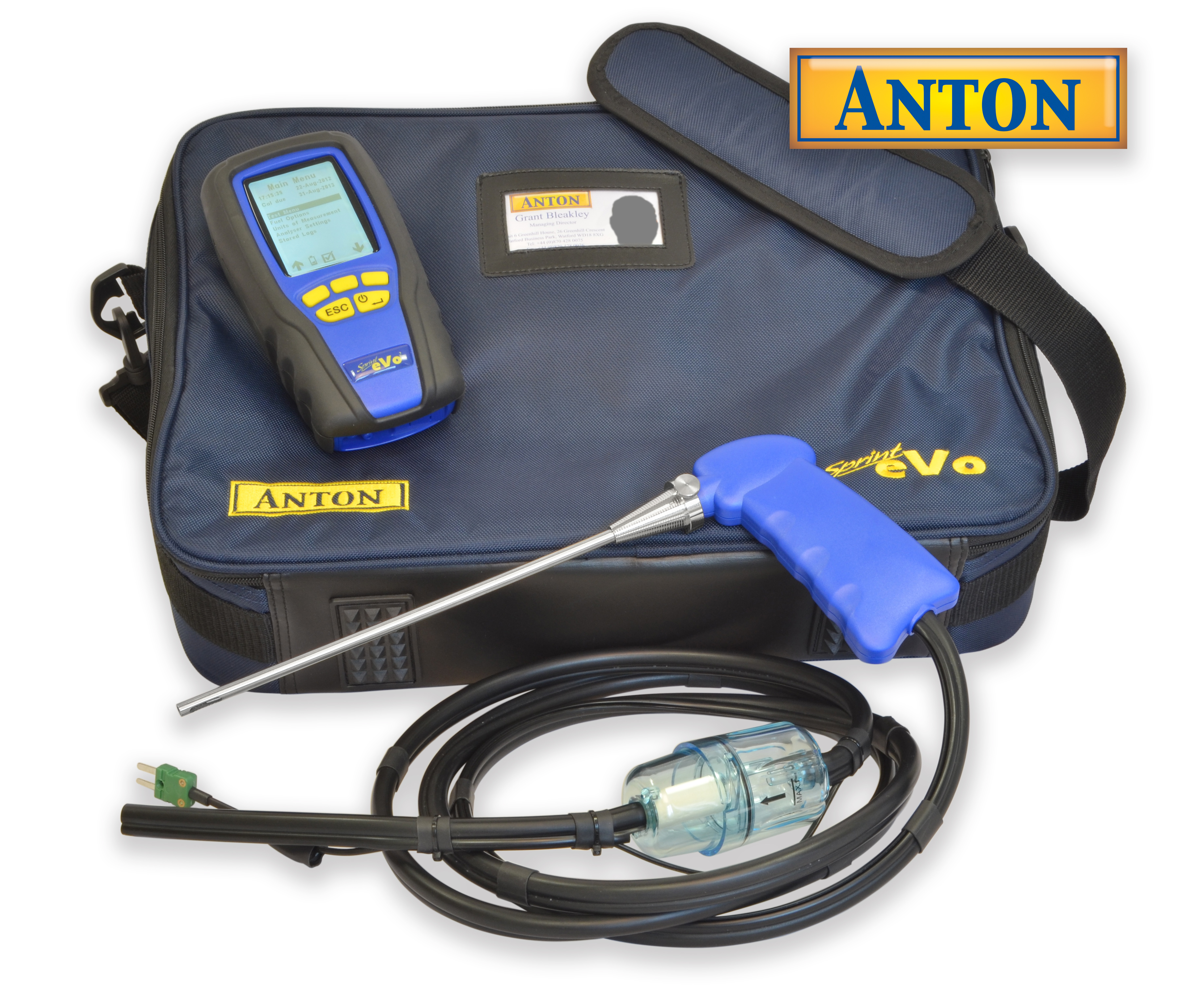

FreeVo flue probe with unique moisture extraction system (Patent pending 1207896.0) (Sprint eVo 2 and Sprint eVo 3 only)

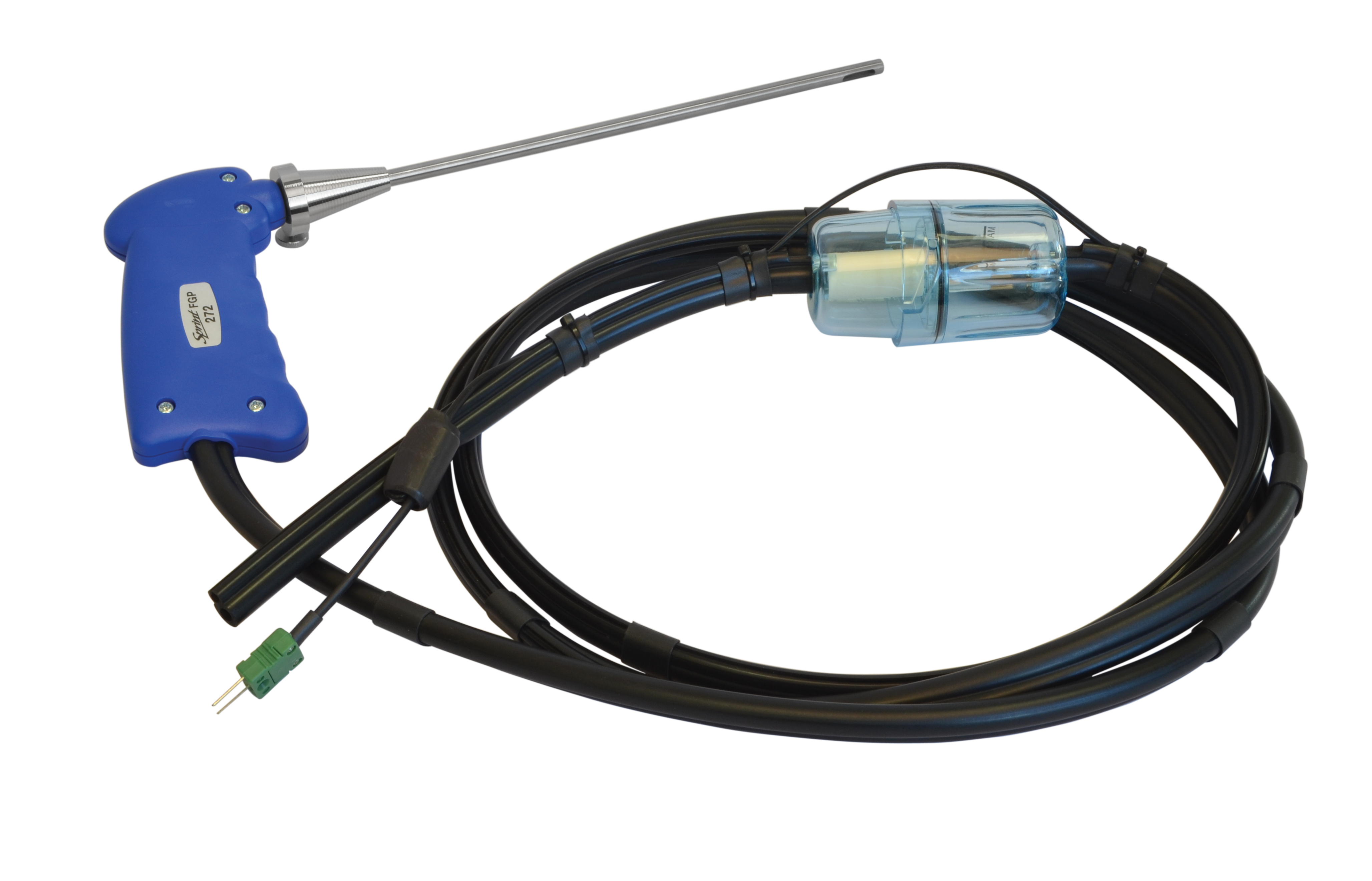

Standard flue probe with split chamber moisture/filter protection (Sprint eVo 1 only)

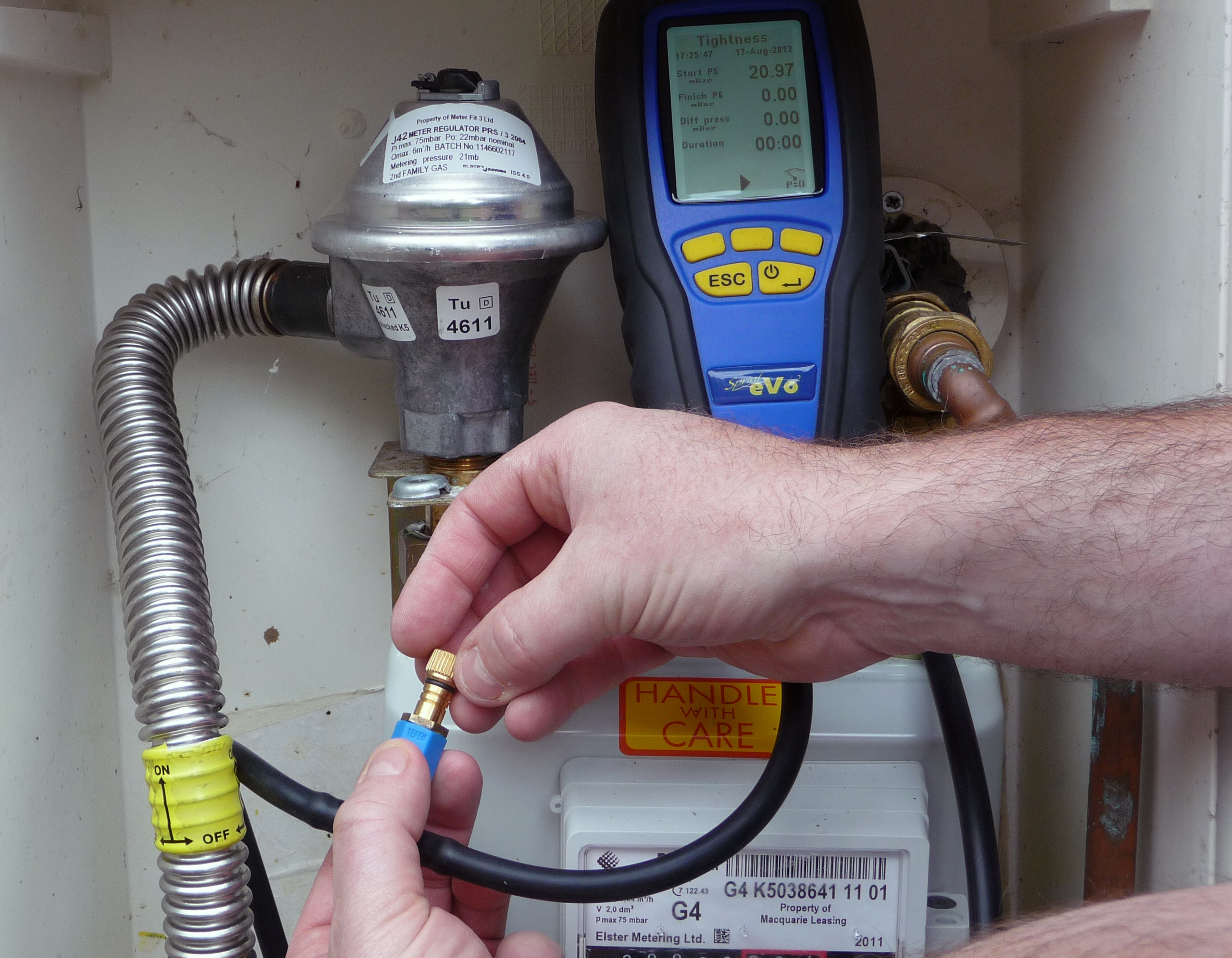

Timed let by/tightness test (IGE/Up/1b) with printout (0.01 resolution up to 199.99 mBar) (Sprint eVo 2 and Sprint eVo 3 only)
Draught/differential pressure measurement with timer (Sprint eVo 2 and Sprint eVo 3 only)
Operating/working pressure report with printout (Sprint eVo 2 and Sprint eVo 3 only)
Timed CO build up tests (BS 7967) with appliance selection
Flow & return temperature with printout
|

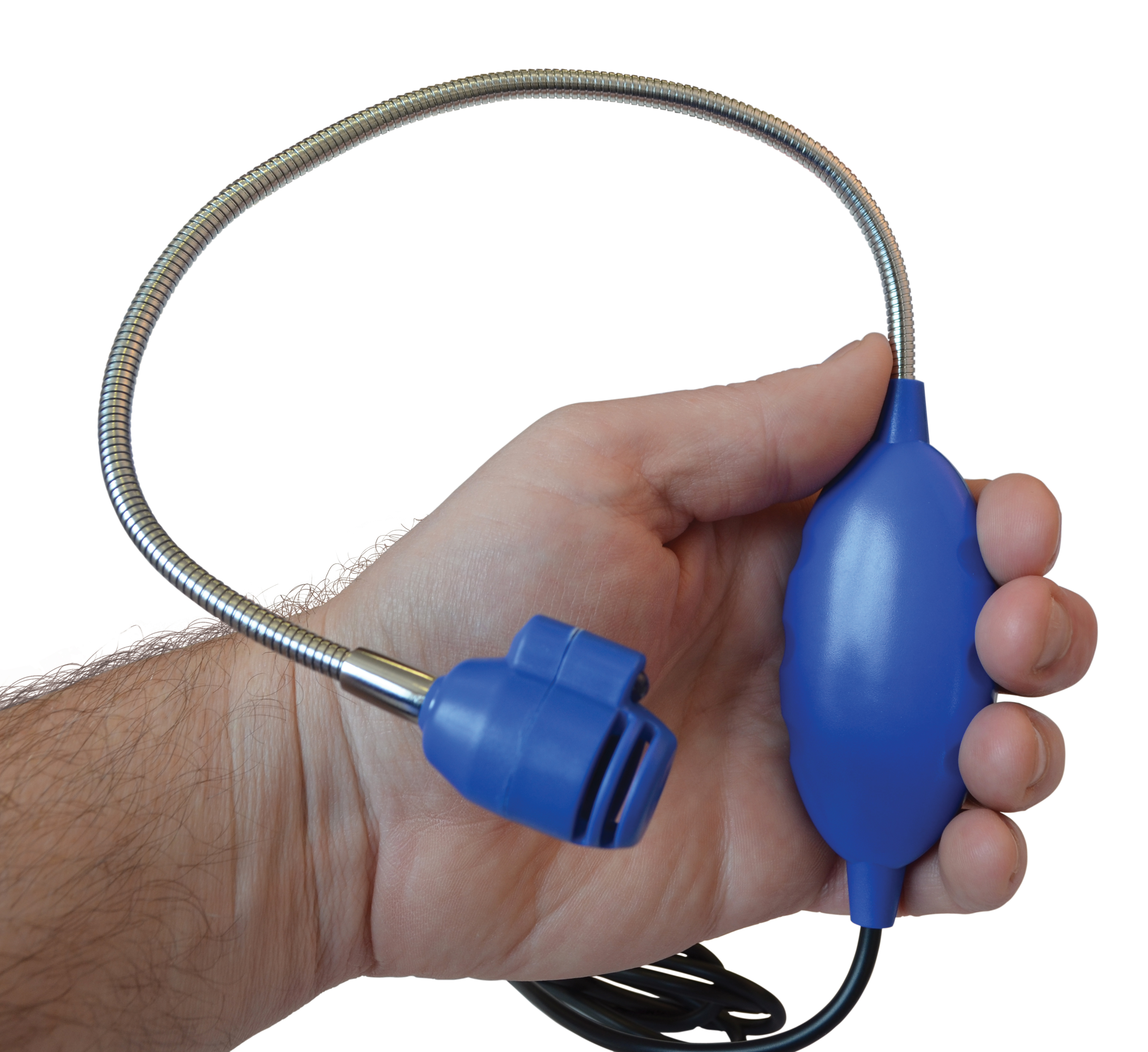

Optional Gooseneck Gas Leak Detection with searchlight
Li-ion rechargeable battery (no memory loss)
Instant print facility, without saving to memory
Internal memory stores over 200 readings
All previous logs can be recalled & viewed on screen
Personalised printouts with traceability & Engineer / Customer signature column
Improved high contrast graphic screen, multi viewing angle and temperature compensated
Simplified purge structure, enabling quick use of non pumped tests, saving time & battery life
Software to enable USB/PC communication with personalised PDF reports (Sprint eVo 2 and Sprint eVo 3 only)

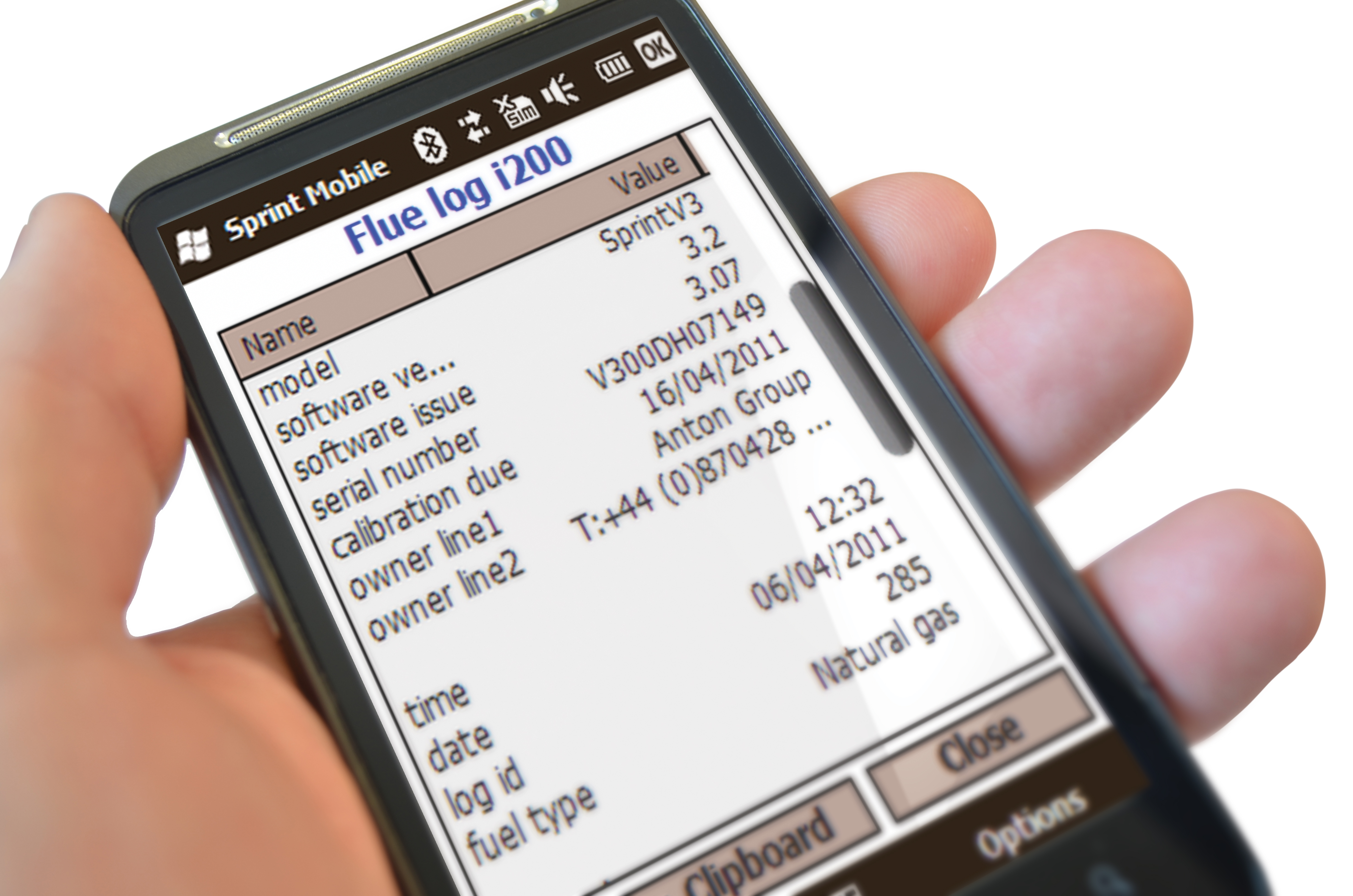

Bluetooth Bluetooth™ enabled communication, (compatibility discussions advised before purchase) (Sprint eVo 3 only)
Five year limited warranty* BS7967: 2010 Parts 1to5 & EN50379: 2012 Parts 1&3
|

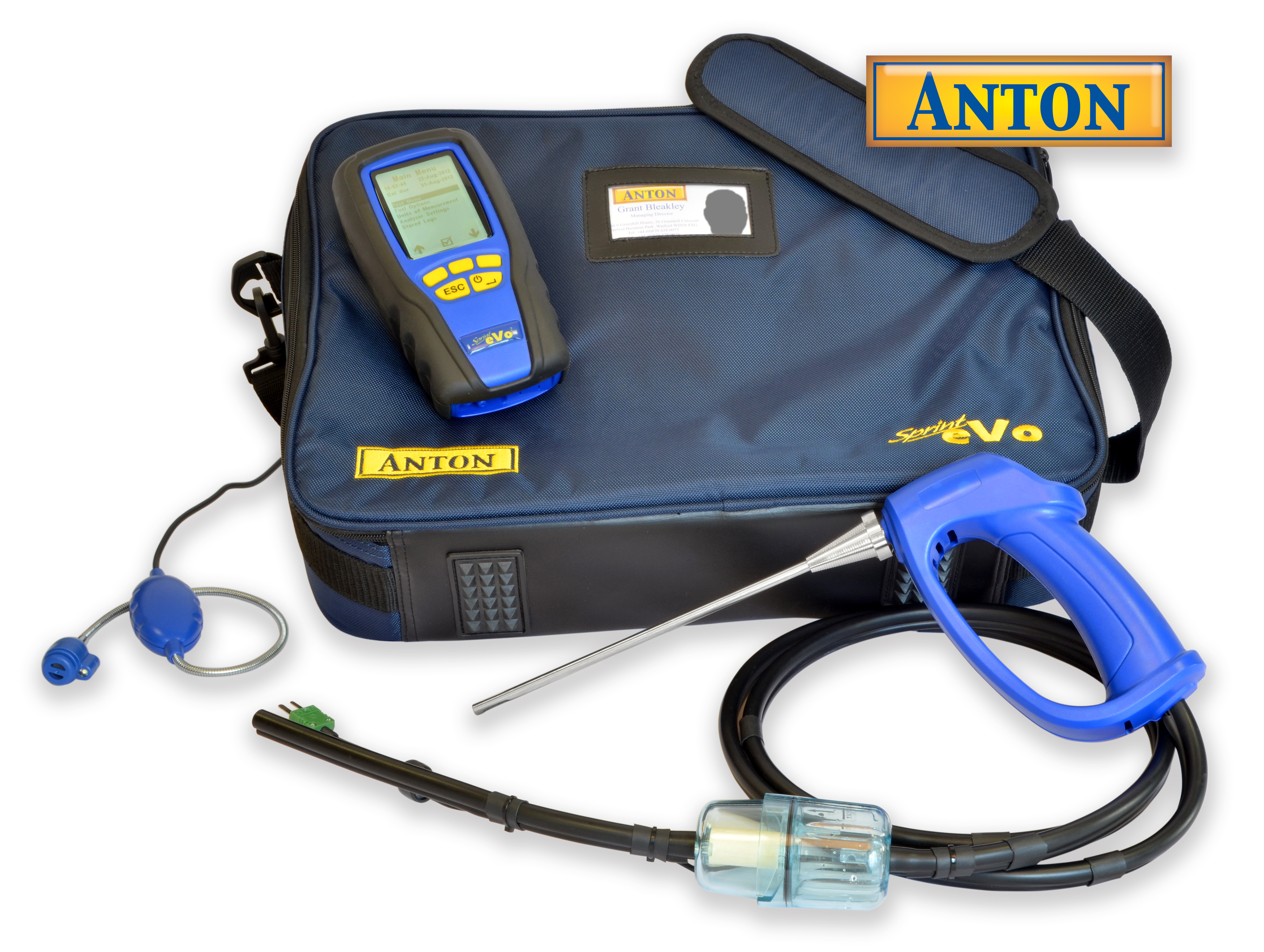

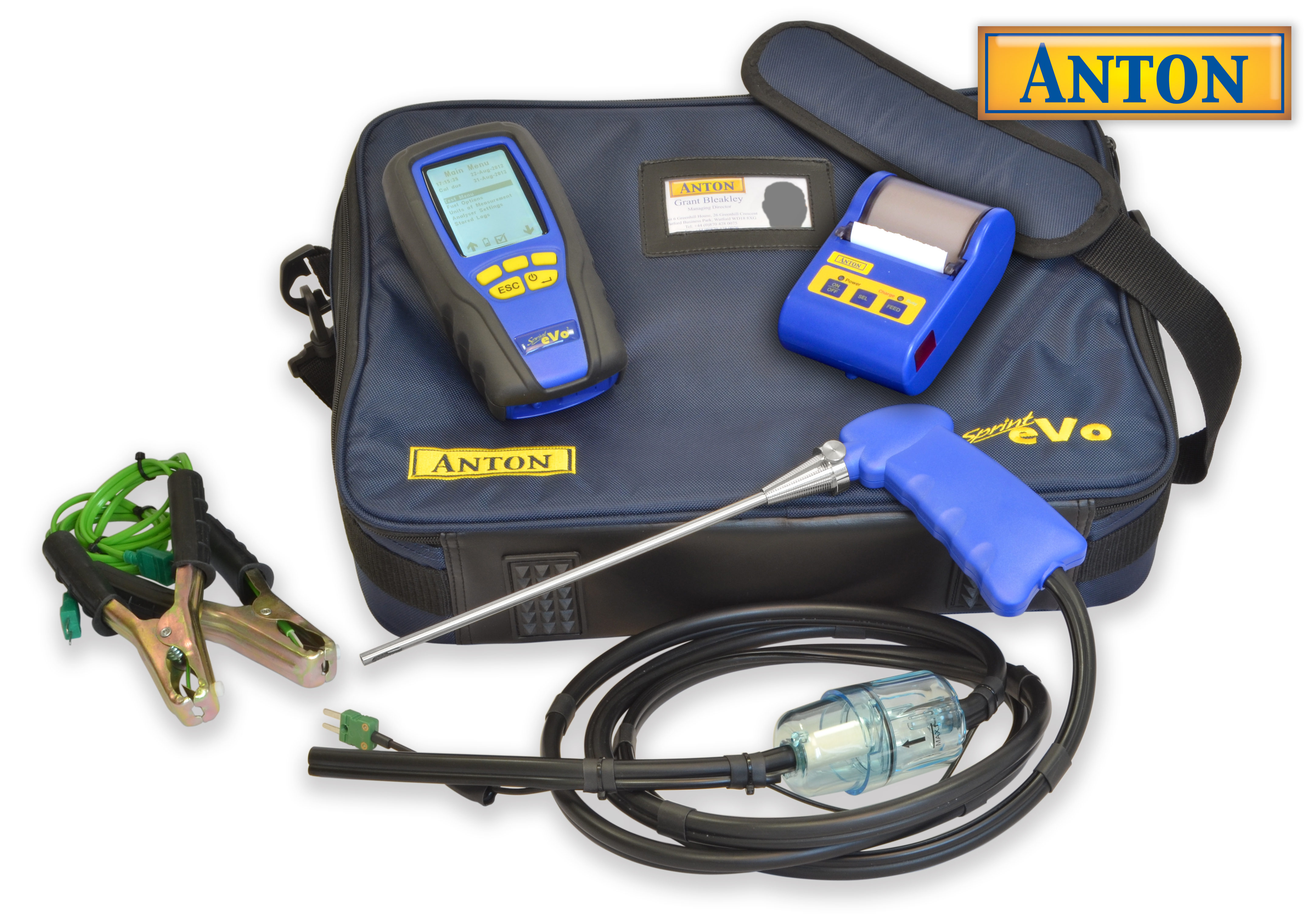

| Kit Versions | eVo 1 Kit | eVo 2 Kit 1 | eVo 2 Kit 2 | eVo 2 Kit 3 | eVo 2 Kit 4 | eVo 2 Kit 5 |
|---|

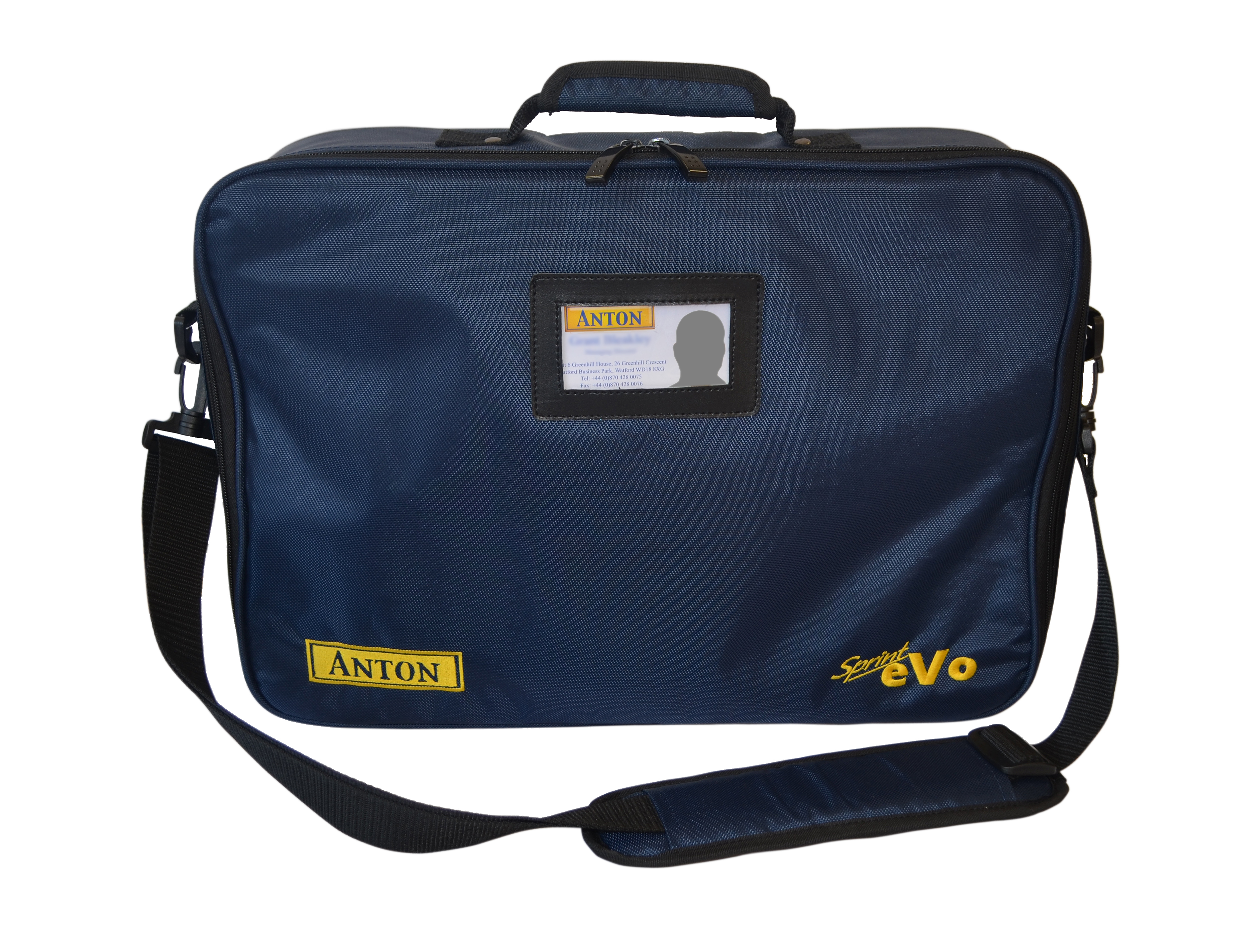

| Large laptop style carry holdall with adjustable shoulder strap | • | • | • | • | • | • |
| Over moulded protection with integral magnets to analyser | • | • | • | • | • | • |
| FreeVo flue probe with unique moisture extraction system, for better protection | | • | • | • | • | • |
| Standard flue probe with split chamber moisture/filter protection | • | | | | | |
| Pressure hoses for use with natural gas | | • | • | • | • | • |
| Gooseneck Gas Leak Detection probe with LED searchlight | | | • | • | • | • |
| CD Rom instruction manual and quick start guide | • | • | • | • | • | • |
| Sprint software enables simple communication to PC | | • | • | • | • | • |
| Traceable certificate of calibration | • | • | • | • | • | • |
| Spare filter and paper roll | • | • | • | • | • | • |
| 1x 240v Mains charger supplied for use with both printer and analyser | • | • | • | • | • | • |

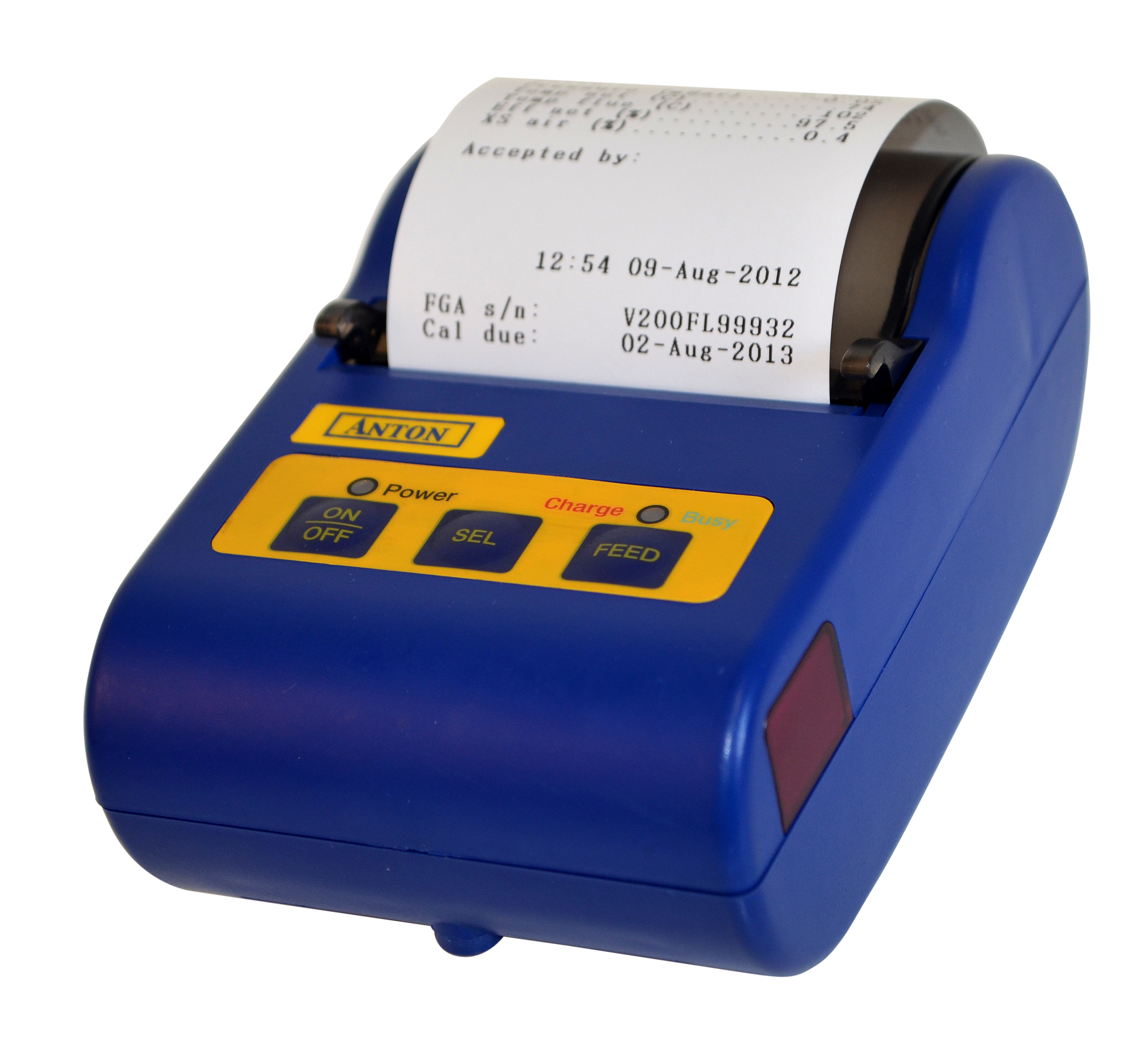

| Magnetic Infra-Red rechargeable printer | • | • | • | • | • | • |
| Pipe clamp temperature probes 15-28mm diameter | • | • | • | • | • | • |
| ANT/CO/BS7967 CO probe kit | | | | • | • | • |
| APRV Anton pressure relief valve | | • | • | • | • | • |
| IAQ 8494 CO2 Instrument | | | | | • | • |
| Clip CO Personal Alarm | | | | | | • |
| Analyser Only Versions | Sprint eVo 1 | Sprint eVo 2 | Sprint eVo 3 |
|---|
| Improved smaller ergonomic design with over moulded protection | • | • | • |
| Enhanced simple to use, intuitive menu driven software | • | • | • |
| CO, CO2, CO/CO2 ratio, O2, XS air, temperature, efficiency with printout | • | • | • |
| FreeVo flue probe with unique moisture extraction system (Patent pending 1207896.0) | | • | • |
| Standard flue probe with split chamber moisture/filter protection | • | | |
| Timed let by/tightness test (IGE/Up/1b) with printout (0.01 resolution up to 199.99 mBar) | | • | • |
| Draught/differential pressure measurement with timer | | • | • |
| Operating/working pressure report with printout | | • | • |
| Timed CO build up tests (BS 7967) with appliance selection | • | • | • |
| Flow & return temperature with printout | • | • | • |
| Li-ion rechargeable battery (no memory loss) | • | • | • |
| Instant print facility, without saving to memory | • | • | • |
| Internal memory stores over 200 readings | • | • | • |
| All previous logs can be recalled & viewed on screen | • | • | • |
| Personalised printouts with traceability & Engineer / Customer signature column | • | • | • |
| Improved high contrast graphic screen, multi viewing angle and temperature compensated | • | • | • |
| Simplified purge structure, enabling quick use of non pumped tests, saving time & battery life | • | • | • |
| Software to enable USB/PC communication with personalised PDF reports | | • | • |
| Bluetooth Bluetooth™ enabled communication, (compatibility discussions advised before purchase) | | | • |
| Five year limited warranty* BS7967: 2010 Parts 1to5 & EN50379: 2012 Parts 1&3 | • | • | • |

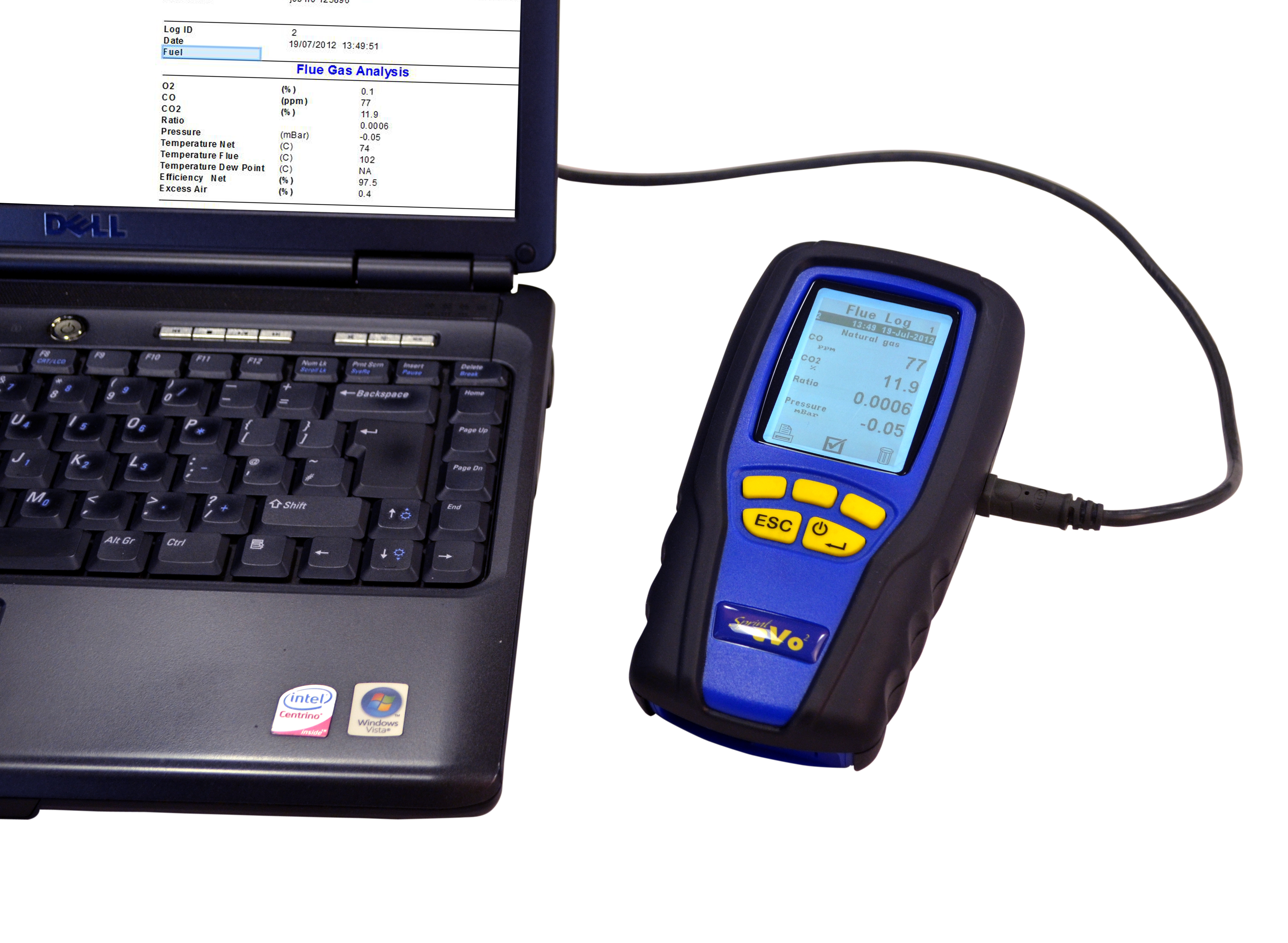

The Sprint eVo range (excluding eVo 1) is supplied with free of charge software. This enables the engineer to not just print reports on site using our infra-red printer, but to also save their readings to a PDF file on their PC using a USB lead. This can then be used to either printout an A4 report or send via email. In conjunction with your PC calendar software you can also use the PDF to set up a recall/annual service alert.
This in turn can be used to ensure your customers are notified when their appliance is due for service and for maintaining appliance history.
This software is user friendly and simple to use, please note that this software is only compatible with Microsoft Windows XP or higher.
The reports clearly show the customer address, the company that carried out the work and the report downloaded from the analyser, engineers job numbers and appliance/room information can also be added to the reports.
These reports have proved to be very popular with our customers.
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
