Bibby Scientific Hybridisation Incubators (HB-1D & HB-3D)


The flexibility you need with the quality you expect from an established world leader in temperature control instrumentation. Ideal for blotting techniques in which RNA and DNA or protein are immobilised onto nylon or nitrocellulose filters.

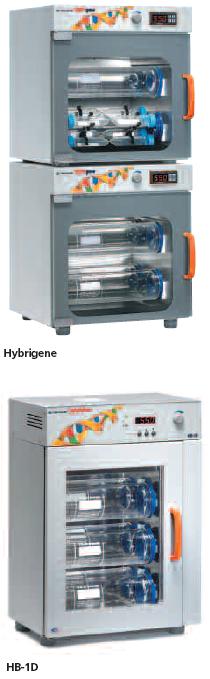

Hybridiser HB-1D

  The famous Hybridiser HB-1D is compact, easy to use and provides complete protection from hybridisation hazards
  A temperature range of 10°C above ambient to 100°C
  High capacity which can hold up to 24 mini tubes or 6 unique large tubes
  Hybridisations can be performed with a minimal volume of 5ml of probe
  Adjustable feet to enable accurate leveling
  Unique double-glazed glass door; quiet and safe, providing durable protection

Hybrigene HB-3D

  Temperature range from 10°C above ambient to 80°C
  Can hold up to 16 mini or 4 large glass tubes
  Flexibility at an affordable price, offering excellent temperature accuracy and uniformity
  The Hybrigene is a compact, stackable alternative to the Hybridiser HB-1D - for when space is important
  Stack up to 3 ovens, saving on valuable laboratory space


Data Sheet
HB-1D Manual
HB-3D Manual


For larger views, please click on the small photos above.
SpecificationHB-3D HybrigeneHB-1D Hybridiser
Maximum glass tube capacity16 mini tubes24 mini tubes
Maximum temperature80°C100°C
Minimum temperature10°C above ambient10°C above ambient
Adjustable rotation speed0, 5 to 20 rpm0, 5 to 20 rpm
Adjustable rocking platform5-20 or 15-60 opm5-20 or 15-60 opm
Stability in chamber1.0°C1.0°C
Stability in tubes±0.1°C±0.1°C
Uniformity in chamber±1.5°C±1.5°C
Uniformity in tube±0.5°C±1.0°C
Temperature set point resolution0.1°C0.1°C
Absolute accuracy±0.3°C±0.3°C
Dimensions L x W x H (mm)355 x 383 x 432285 x 385 x 555
Voltage230V, 50-60Hz230V, 50-60Hz
Power750W750W
Shipping Weight21kg24kg

Ordering Information


FHB4DD Hybrigene HB-3D hybridisation incubator, 230V
FHB4DDT Hybrigene HB-3D hybridisation incubator, 230V (including 4 large tubes FHB16)
FHB4DP Hybrigene HB-3D hybridisation incubator, 120V
FHB4DPT Hybrigene HB-3D hybridisation incubator, 120V (including 4 large tubes FHB16)
FHB1DE Hybridiser HB-1D hybridisation incubator, 230V
FHB1DG Hybridiser HB-1D hybridisation incubator, 230V (including 3 large tubes FHB12)
FHB1DQ Hybridiser HB-1D hybridisation incubator, 120V
FHB1DB Hybridiser HB-1D hybridisation incubator, 120V (including 3 large tubes FHB12)


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
