Unique retractable platform for easy loading and unloading
Angle adjustable accessory tube racks available with patent pending Magnalock coupling system
PC communications enabled to record temperature measurement
With BioCote antimicrobial protection

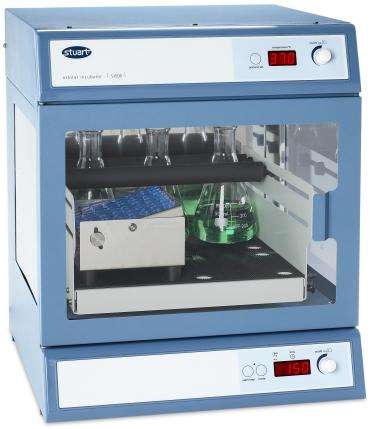

The new Bibby Scientific SI500 combined shaker and incubator provides an orbital shaking motion, adjustable between 30 to 300rpm with a gentle start action. Shaking speed is microprocessor controlled and set via a digital LED control panel.
The incubator incorporates a versatile digital timer which can be set from one second to nine days. After the timer has counted down the shaking action stops and an alert sounds; as a safety feature however the incubator continues to run.
The incubator temperature is set via a separate bright LED display while encoder control ensures that the temperature can be quickly set between ambient temperature +5 degrees and 60 degrees. Forced air circulation ensures uniform heating of the load.
The platform has a versatile clamping system which secures most sizes and mixtures of flask up to 1 litre capacity. Typically, the platform will accommodate the following Erlenmeyer flasks: 12 x 250 ml, 9 x 500 ml or 6 x 1000 ml.

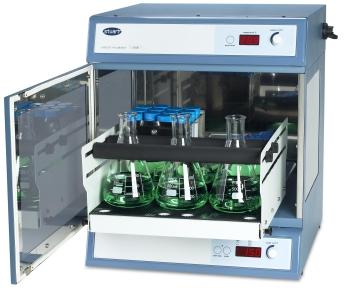

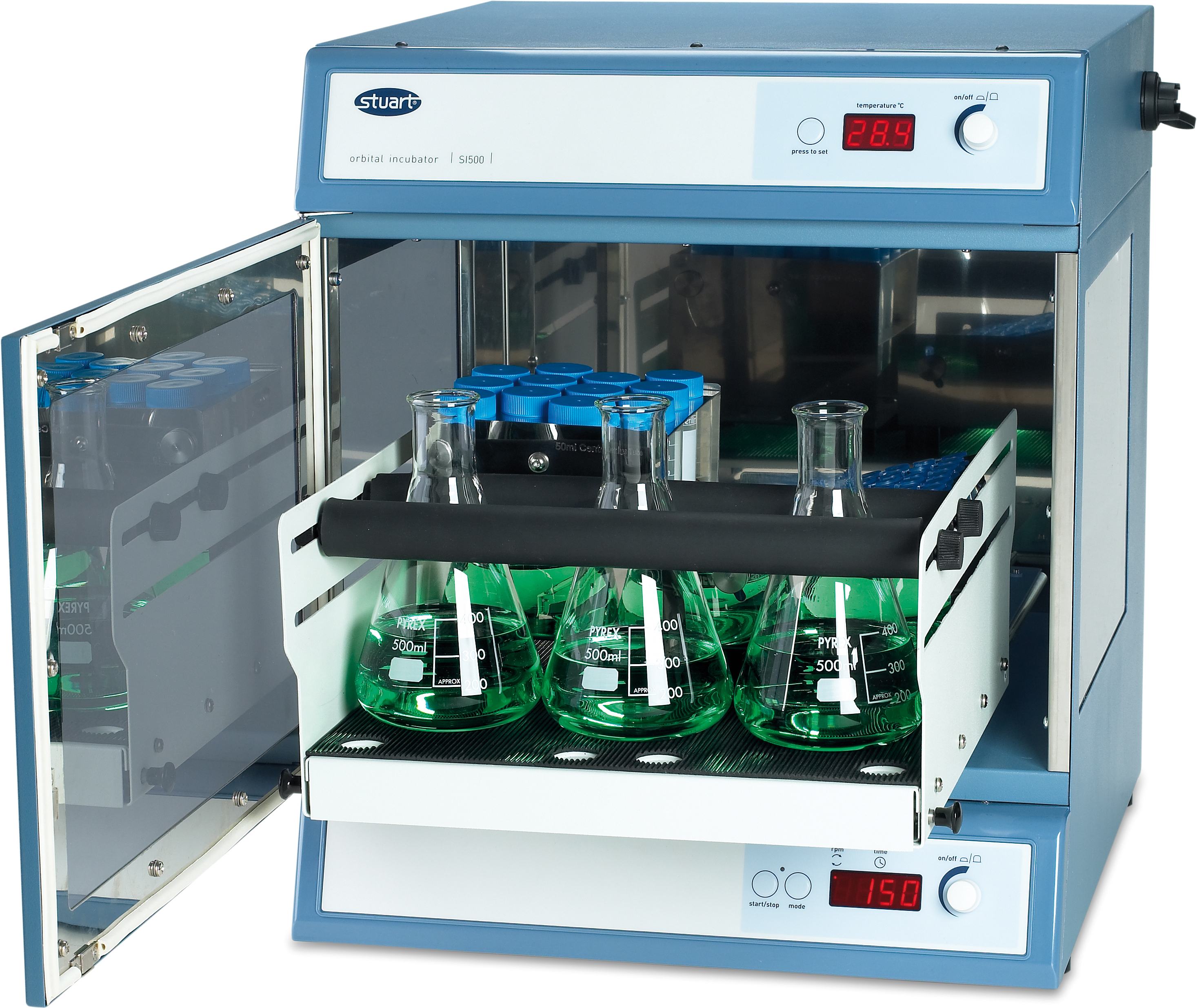

The unit features a retractable platform. Under normal use the platform is locked in place but it can be drawn forward out of the chamber to allow easy access to samples at the back of the incubator.
Smoked acrylic windows in the incubator door and on both sides allows maximum visibility of samples.
The SI500 also features a USB connection and dedicated software to enable long term temperature monitoring - for example over weekends.
Technical Specifications
Temperature range - Ambient + 5 degrees to 60 degrees
Temperature display resolution - 0.1 degrees
Temperature variation - <0.5 degrees
Speed range - 30 to 300rpm
Orbit diameter - 16mm
Platform size - 335 x 335mm
Internal dimensions (w x d x h) - 422 x 408 x 297mm
Maximum vessel height - 250mm
Maximum load - 10kg
Overall dimensions (w x d x h) - 450 x 474 x 522mm
Net weight - 30kg
Heater power - 250W
Electrical supply - 230V, 50Hz, 300W
For larger views, please click on the small photos above.
SI500 - Incubator, orbital shaker

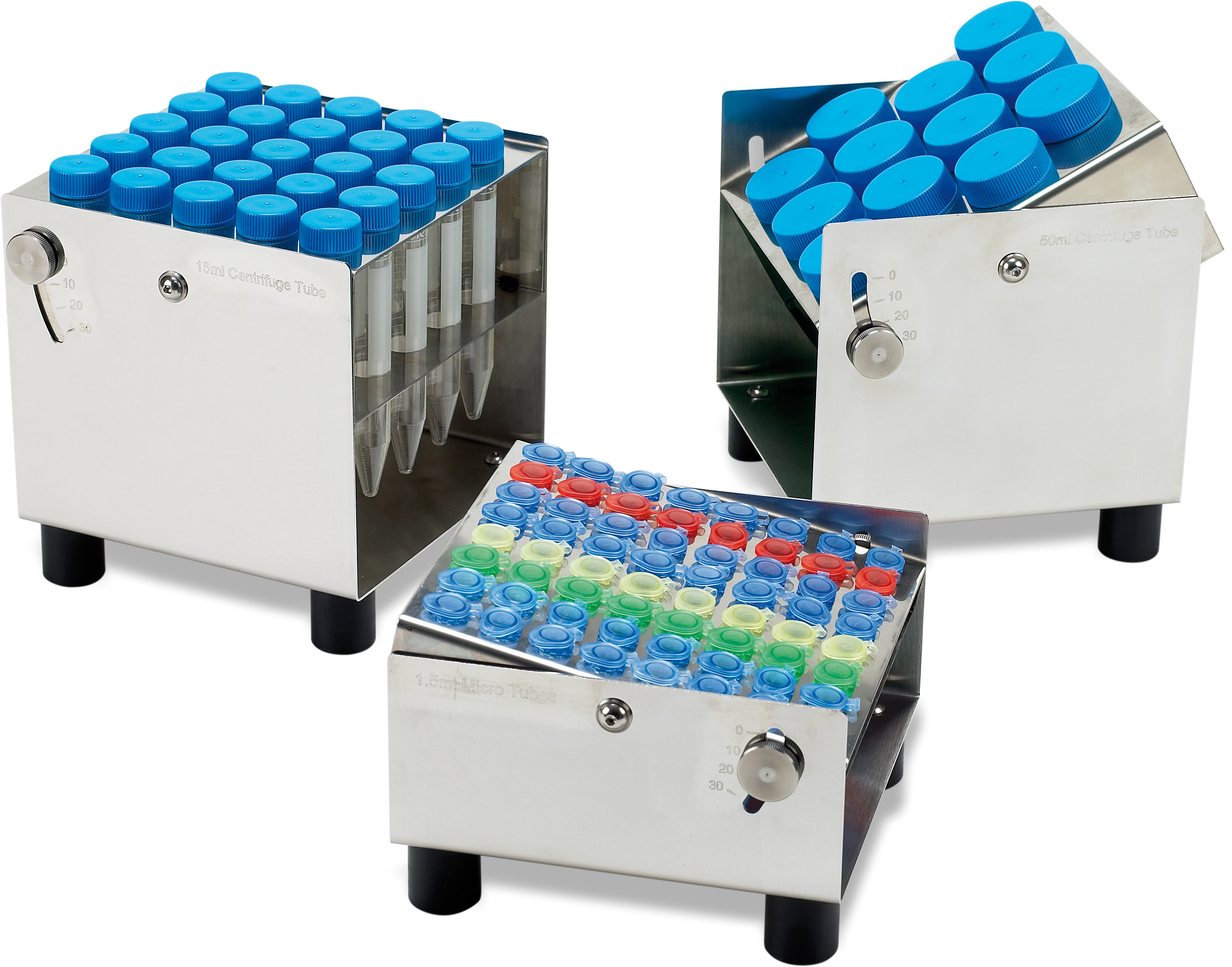

SI500/1 - Tube rack, 64 x 1.5ml microtubes
SI500/2 - Tube rack, 25 x 15ml centrifuge tubes
SI500/3 - Tube rack, 12 x 50ml centrifuge tubes
SI500/4 - Tube rack, 16 x 30ml universal containers
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
Combined incubator and shaker
