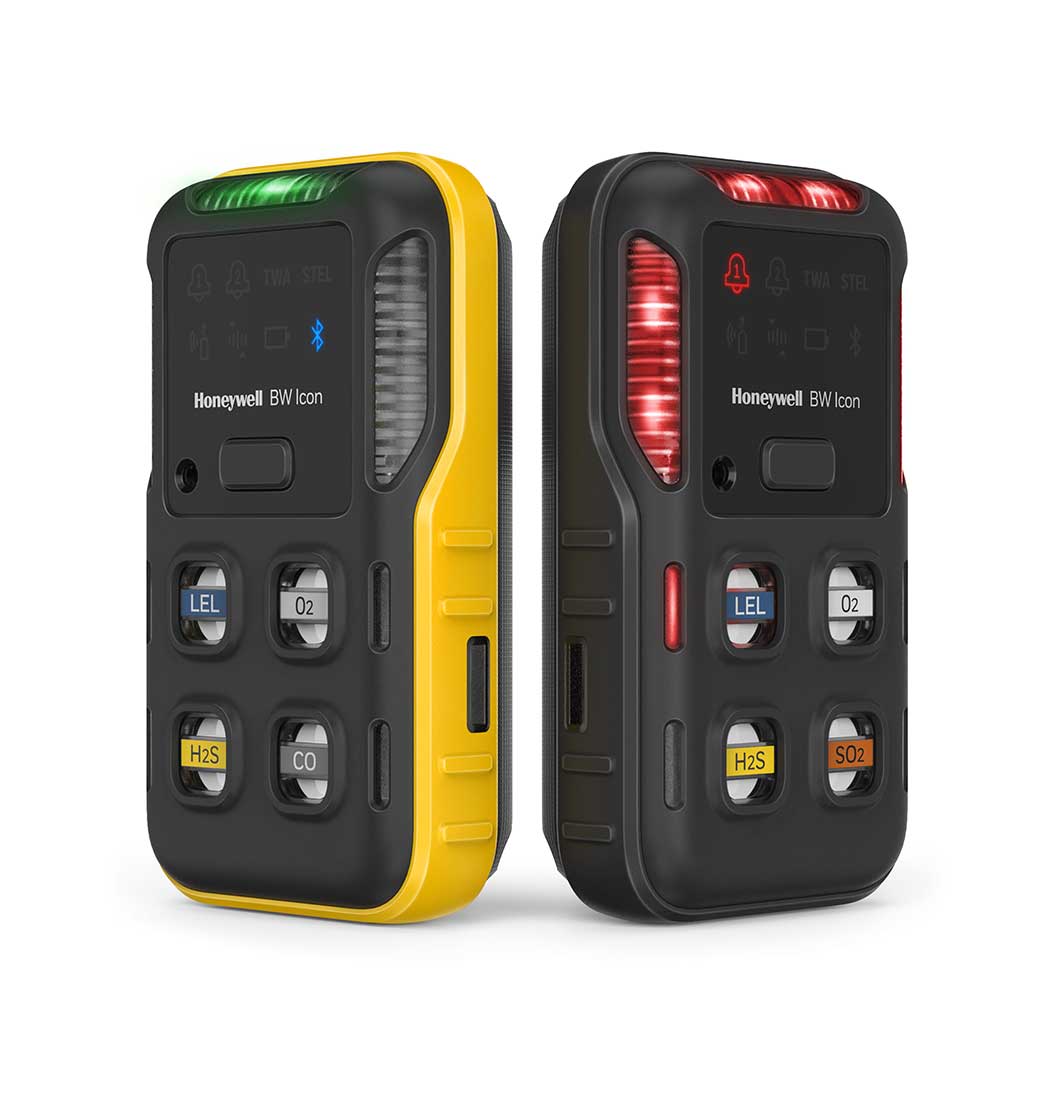

BW Icon Portable Gas Detector

The Honeywell BW Icon is a fixed-life, 2-year, 4-gas detector for the gas hazards that workers face most often. That means you can turn it on and activate two years of protection, with no need for sensor or battery replacement - and no hidden costs.

BW Icon Key Features:

  • Two-month battery run-time
  • Bluetooth as standard
  • CO/H2S/O2 and IR LEL or SO2/H2S/O2 and IR LEL configurations
  • BW icon is designed to have a fixed 2-year life
  • IP66/IP68 rated



Buy the BW Icon online from our sister company Cadmus Products.

Get a Quote
BW

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The BW Icon is a two-year fixed life detector that will run for two months on a single charge. It includes all the features you expect from Honeywell, including simple one-button operation, IntelliflashTM, data-logging and rugged durability – it also adds Bluetooth connectivity for use with Honeywell software as well as third party integration.

Reliable

The BW Icon has 2 months of battery runtime on a 4.5-hour charge — and up to 4 months if you turn off the detector at the end of each shift. There is no daily charging, no unexpected downtime and no service required, you activate and use for two years. Bluetooth is included for ease of downloading and sending reports via the Safety Suite App.

Easy to use

The BW Icon is small, lightweight and wearable with one-button operation.

Easy to manage

The IntelliFlash green light indicates the detector is in compliance; amber light indicates the need for maintenance. The device is compatible with IntelliDoX instrument management system and Honeywell Safety Suite and also compatible with TouchConnect, using Bluetooth® for wireless configuration.

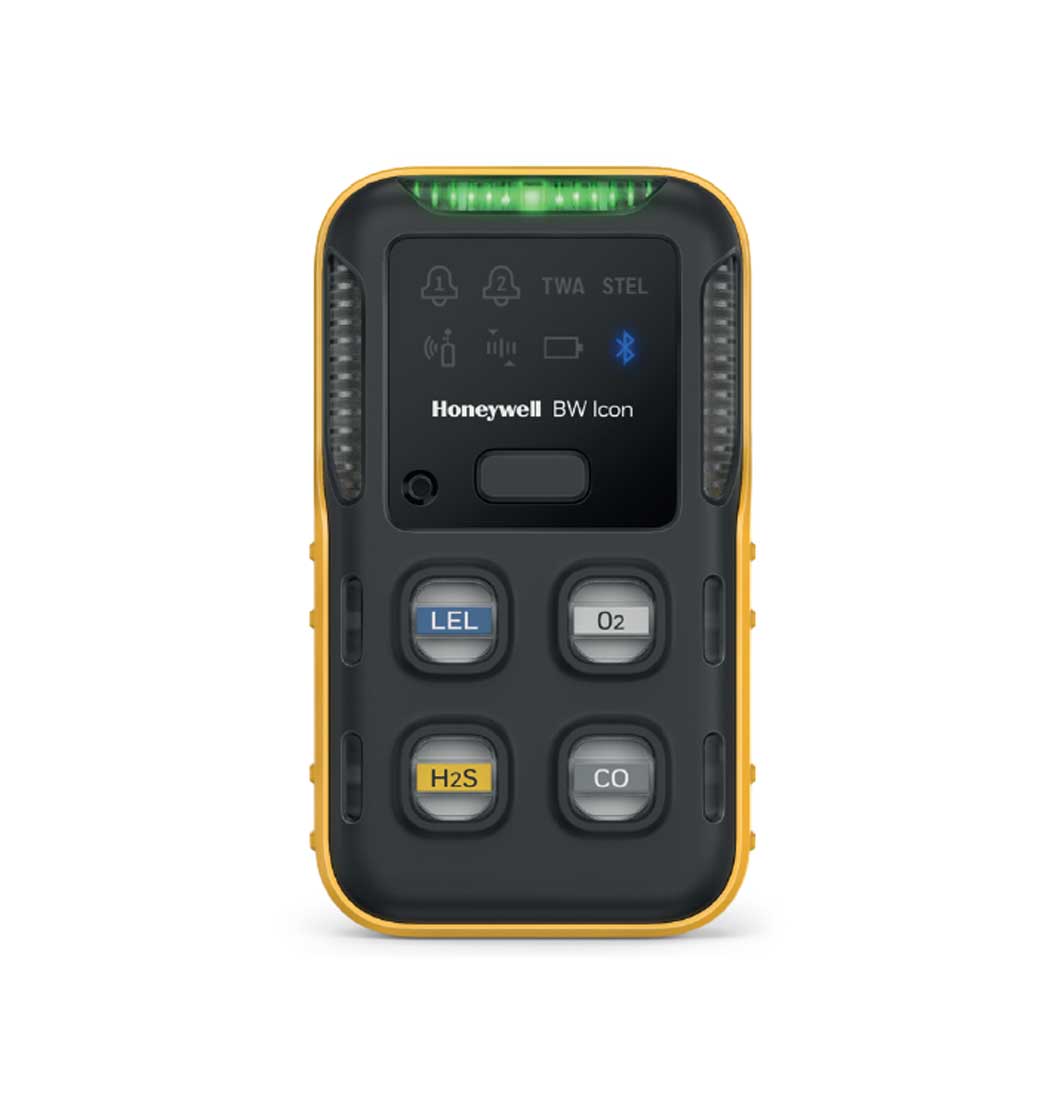

The first multi-gas detector with an icon display — for fast decisions. Honeywell BW™ Icon is named for its display of simple icons for gas levels and device status. That means no live gas readings for workers to interpret and no time-consuming training. Instead, when there’s a gas alarm, the bell icon on the display will illuminate, along with an indicator next to the sensor in alarm, so workers can quickly clear the area.



Technical Specifications

Size 108.2 mm x 61.5 mm x 43.2 mm (4.29 in x 2.44 in x1.7 in) with Alligator Clip
108.2 mm x 61.5 mm x 37.8 mm (4.29 in x 2.44 in x 1.49 in) with Klick Fast Stud
Weight 185 g (6.5 oz) with Alligator Clip, 169 g (6 oz) with Klick Fast Stud
Working Temperature -40°C to 60°C (-40°F to 140°F)
Working Humidity 5% to 95%
Ingress Protection IP66, IP68
Alarms and Type Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, Negative Drift, Over Limit, Multi-alarm
Self-Test Perform diagnostic of sensor, circuitry on activation;
Activated detector automatically performs analog sensor diagnostic every 10 minutes,
digital sensor diagnostic every second
Typical Battery Life Two months (with NDIR CH4 sensor)
Connected Worker Bluetooth® Low Energy (BLE) – Ability to connect to Honeywell’s Safety Communicator App,
Device Configurator App and Safety Suite Device Configurator Software
User options
  • Change High, Low, TWA and STEL alarm set points
  • Latching alarms
  • Set Calibration and/or bump test reminders
  • Assign worker and location assignments
  • Always on
  • User options only available via Device Configurator and Safety Suite Device Configurator
Certifications and Approvals ATEX, IEC Ex, contains FCCID, contains IC
Device Warranty Two-year warranty for sensors and detector



Sensor Specifications

Gas Name Measuring Range Resolution Working Temperature
CO 0 to 2000 ppm 1 ppm -40°C to 60°C (-40°F to 140°F)
H2S 0 to 200 ppm 1 ppm (can set to 0.1 ppm) -40°C to 60°C (-40°F to 140°F)
SO2 0 to 150 ppm 0.1 ppm -20°C to 50°C (-4°F to 122°F) intermittent
-40°C to 55°C (-40°F to 131°F)
O2 0 to 30% VOL 0.1% VOL -40°C to 60°C (-40°F to 140°F)
NDIR-CH4 0 to 100% LEL 1% LEL -40°C to 60°C (-40°F to 140°F)

Caution: The infrared LEL sensor used in Honeywell BW™ Icon cannot detect hydrogen and acetylene. For applications involving these combustible gases, consider a catalytic-bead LEL sensor as found in the Honeywell BW™ MicroClip Series.





Description Part Number Compatible With
BW Icon (%LEL(IR), O2, H2S, CO), Yellow Housing CON-Y-H -
BW Icon (%LEL(IR), O2, H2S, CO), Black Housing ICON-B-H -
BW Icon (%LEL(IR), O2, H2S, SO2), Yellow Housing ICON-Y-S -
BW Icon (%LEL(IR), O2, H2S, SO2), Black Housing ICON-B-S -
BW Icon+ (%LEL(IR), O2, H2S, CO), Yellow Housing CP-I-W5X1H1M1-Y-00 -
BW Icon+ (%LEL(IR), O2, H2S, CO), Black Housing CP-I-W5X1H1M1-B-00 -
BW Icon+ (%LEL(IR), O2, H2S, SO2), Yellow Housing CP-I-W5X1H1S3-Y-00 -
BW Icon+ (%LEL(IR), O2, H2S, SO2), Black Housing CP-I-W5X1H1S3-B-00 -
Charging & IR Accessories

Mains 5-way charger,BW ICON/FLEX GA-PA-1-MC5-EU Icon, Icon+
USB Charger Cable CP-USB Icon, Icon+
5 way cradle charger,BW ICON/ICON+ CP-C01-5 Icon, Icon+
IR connectivity kit GA-USB1-IR Icon, Icon+
External Filters and Aspirator Pump
External Auxiliary Filter Kit - CO CP-AF-K1 Icon, Icon+
External Auxiliary Filter Kit - SO2 CP-AF-K2 Icon, Icon+
Replacement External Filters (10pcs) CP-SS-AF-K1 Icon, Icon+
Manual aspirator pump kit with probe and filter (0.3 m/1 ft.) GA-AS02 Icon, Icon+
Carrying Accessories
Neck strap with safety release GA-NS-1 Icon, Icon+
Short strap (6 in./15.2 cm) GA-LY-1 Icon, Icon+
Extension strap (4 ft./1.2 m) GA-ES-1 Icon, Icon+
Chest Harness GA-CH-2 Icon, Icon+
Honeywell IntelliDox
IntelliDox BW - ICON/ ICON+ DX-CP Icon, Icon+
IntelliDox nest - BW ICON/ ICON+ DX-NEST-CP Icon, Icon+
Honeywell IntelliDox enabler kit UK version (United Kingdom) DX-ENBL-UK Icon, Icon+
Honeywell IntelliDox enabler kit EU version (Europe) DX-ENBL-EU Icon, Icon+
Honeywell IntelliDox enabler kit NA version (North America) DX-ENBL-NA Icon, Icon+
Replacement Sensors
Replacement LEL IR sensor, 1 series SR-W5-1S Icon+
Replacement O2 sensor, 1 series SR-X1-1S Icon+
Replacement H2S sensor, 1 series SR-H1-1S Icon+
Replacement CO sensor, 1 series SR-M1-1S Icon+
Replacement SO2 sensor, 1 series SR-S3-1S Icon+
Replacement Dummy sensor, 1 series SR-DUMM-1S Icon+
Service Spares
Replacement sensor membrane - kit of 4 (1 full unit) CP-SS Icon, Icon+
Replacement sensor membrane - kit of 20 (5 full units) CP-SS-K1 Icon, Icon+
Replacement front enclosure,BW ICON CP-FC1 Icon
Replacement front enclosure,BW ICON+ CP-FC2 Icon+
Main PCB analog w/ BAT&SCREWS CP-MPCB1 Icon+
Replacement back shell, Yellow CP-BC1 Icon, Icon+
Replacement back shell, Black CP-BC1B Icon, Icon+
Replacement screws(20pcs) CP-SCREW-K1 Icon, Icon+
Replacement Vibration motor CP-VM-1 Icon, Icon+
Replacement sensor label pack,BW ICON CP-LBL-1 Icon
Replacement sensor label pack,BW ICON+ CP-LBL-2 Icon+
Replacement Battery CP-BAT Icon, Icon+
Replacement Aligator Clip CP-AG Icon, Icon+
Replacement Klickfast Stud CP-KF Icon, Icon+
Replacement Sensor frame CP-SF1 Icon, Icon+
