BW RigRat Multi Gas Area Monitor

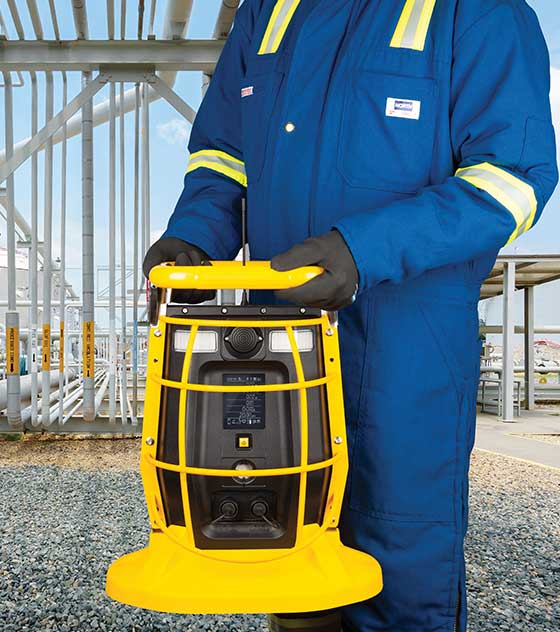

The Honeywell BW™ RigRat is a portable multi-gas area monitor that workers can operate with confidence, trusting it to alert them to gas threats in their proximity, both indoors and out, in temperatures from -40 to +140°F (-40 to +60°C).

BW RigRat Key Features:

  • Up to 8 weeks of runtime on a single charge. Longer runtime than any area monitor in its class.
  • Up to six slots for interchangeable gas sensors. Choice of electrochemical, PID, infrared, and catalytic bead  sensors (measuring percent LEL and percent by volume).
  • Integrated Noise sensor and Metrological data sensors.
Get a Quote
Kane

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Wireless Safety Perimeter - Position several Honeywell BW™ RigRat monitors to form a wireless safety perimeter.

Remote Monitoring - Use with Honeywell’s remote monitoring software to see gas readings, location and other data
from any device with an internet connection — for fast, informed decisions. Add an optional noise sensor or  meteorological sensor.

Honeywell Touchpoint Plus Compatible - Use with the Honeywell Touchpoint™ Plus controller for visibility on Honeywell BW™ RigRat monitors and workers’ personal detectors.

  • Line power for extended runtime in the field
  • I/O ports providing additional input capabilities and local executive activation
  • Inert mode that prevents alarm in normal ambient air
  • Large, easy-to-read display

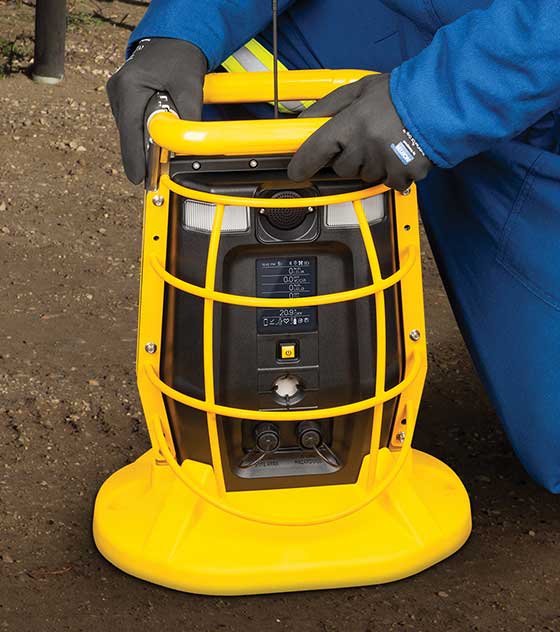

  • Rugged, weatherproof design, with optional protective cage
  • Enhanced configurations with programmable input and output.
  • Approval for explosive atmosphere. Certified for ATEX/IECEx Zone 0 and CSA C1D1.
  • Flexible applications. Zone declassification, turnarounds, confined space, routine maintenance, fence line and  more. Available with pump for remote sampling.
  • One-button operation. Grab and go. No expertise required.
  • Simple setup with a smartphone. Easy mobile app for alarm set points, calibration records and more.
  • Added protection. Alerts workers to nearby gas leaks, whereas personal detectors cover only the breathing zone.



INSTRUMENT SPECIFICATIONS (TYPICAL)
MODEL NUMBER BWRR100P/BWRR100D
SIZE 15.8 x 11.4 x 18.5 in. / 40.0 x 29.0 x 47.0 cm
WEIGHT 17.6 lb / 8 kg
GAS SENSOR SLOTS Up to 6
GAS SAMPLING METHOD Pumped or diffusion
BATTERY Rechargeable Li-ion battery (3.7V / 26.4 Ah)
CHARGING TIME Less than 18 hours when instrument is powered off
RUNNING TIME 8 weeks for low-power model; other models vary by configuration
KEYPADS One-button operation and programing
DISPLAY 3.5” 240 x 320 TFT color LCD with white LED backlight
ALARM Red/yellow/green LED alarm; buzzer alarm 108 dBA @ 1 m; on-screen indication of alarm conditions
DATALOGGING Complete gas sensors and instrument information for at least 4 months at one minute intervals
WIRELESS ISM license free band:
Bluetooth Low Energy Module (BT 4.2 / 5.0), 2.4 GHz, in default;
Mesh Module: IEEE 802.15.4 868 MHz / 915MHz /2.4 GHz (optional); OR
Wi-Fi Module: 802.11 b/g/n 2.4 GHz (optional)
RADIO MODULE & RANGE Bluetooth Low Energy: RMBLEC, up to 16.4 ft. / 5 m;
Mesh: RM900A or RM2400, up to 984 ft. / 300 m;
Wi-Fi: RMWIFIC, up to 164 ft. / 50 m;
OUTDOOR LOCATION GPS receiver module: GPS L1 frequency (1575.42 MHz) (optional);
Only with IEEE 802.15.4 868 MHz / 915MHz modem and WIFI
IP RATING IP65 for pumped models; IP67 for diffusion models
TEMPERATURE -4 to +140°F (-20 to +60°C) for pumped models;
-40 to +140°F (-40 to +60°C) for diffusion models
HUMIDITY 5 - 95% RH (non‑condensing)
SAFETY CERTIFICATIONS
(PENDING)		 cETLus Class I Division 1; Group A, B, C, D; T4;
IEC EX/ATEX
I M1 Ex ia I Ma
II 1G Ex ia da IIC T4 Ga
For LELIR/CO2 sensor installed:
I M1 Ex ia I Ma
II 2G Ex ia da db IIC T4 Gb
1G Ex ia da IIC T4 Ga
WIRELESS APPROVALS
(PENDING)		 FCC Part 15, IC, RE-D
ROHS (PENDING) RoHS Complaint, Directive (EU) 2015/863
NOISE SENOR 60-125 dBA range; (respond: 100 Hz to 8 kHz), 1 dB resolution;
A-weighted 15 second equivalent level; updated every 5 seconds

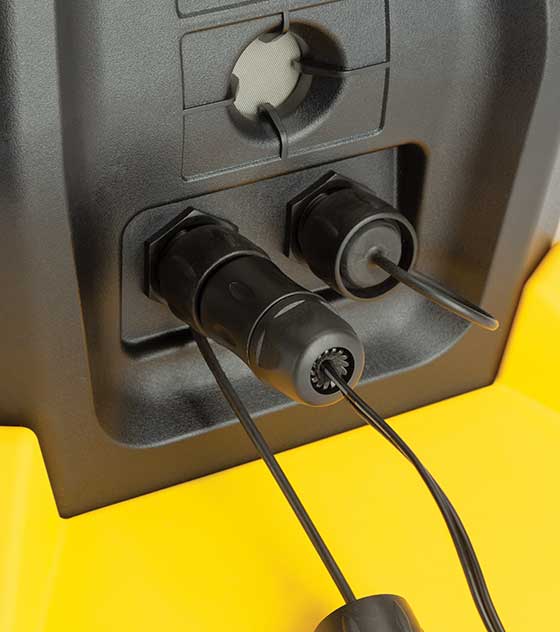

EXTERNAL PORTS
SAFE AREA CHARGE PORT
(AC CHG SAFE AREA)		 Battery charger input 6 VDC 3 A typical; connect to AC/DC adaptor
FIELD CHARGE
(IS CHG HAZARDOUS)		 Intrinsically safe line power supply input to extend instrument runtime (low-power model only)
RAEMET PORT (SERIAL) Port to RAEMet wind sensor (optional)
ANALOG/SWITCH INPUT PORT
(4-20 MA IN)		 4-20 mA signal input, X1 channel/switch on/off signal input, X1 channel (optional)
ON/OFF SWITCH OUTPUT
(SWITCH)		 Max 20 V / 120 mA, SPDT Normal Open, X3 channels for external ports (optional). Refer to User Guide for
complete details.
Part Number Description I/O Ports Pump Noise Sensor Wireless GPS
HRR-A100009ABK-000 BW™ RigRat, Basic diffusion: BLE only (BLE default for all versions), Catalytic LEL (0-100% LEL), CO -
Carbon Monoxide (0-500 ppm), H₂S - Hydrogen Sulphide (0-100 ppm), O₂ - Liquid Oxygen (0-30% Vol.)
HRR-B100009ABK-000 BW™ RigRat, Basic pump: BLE only (BLE default for all versions), Catalytic LEL (0-100% LEL), CO -
Carbon Monoxide (0-500 ppm), H₂S - Hydrogen Sulphide (0-100 ppm), O₂ - Liquid Oxygen (0-30% Vol.)		   *
HRR-A100100ABK-000 BW™ RigRat, Basic diffusion: BLE only (BLE default for all versions), Ex NDIR (0-100% LEL) Low
Power, CO - Carbon Monoxide (0-500 ppm), H₂S - Hydrogen Sulphide (0-100 ppm), O₂ - Liquid Oxygen
(0-30% Vol.)
HRR-B100100ABK-000 BW™ RigRat, Basic pump: BLE only (BLE default for all versions), Ex NDIR (0-100% LEL) Low Power,
CO - Carbon Monoxide (0-500 ppm), H₂S - Hydrogen Sulphide (0-100 ppm), O₂ - Liquid Oxygen (0-30%
Vol.)		   *
HRR-C102009ABK-000 BW™ RigRat, Enhanced diffusion: Input/output + wireless, BLE, Mesh 868MHz (Portables Systems),
Catalytic LEL (0-100% LEL), CO - Carbon Monoxide (0-500 ppm), H₂S - Hydrogen Sulphide (0-100
ppm), O₂ - Liquid Oxygen (0-30% Vol.)		 *     *
HRR-C102100ABK-100 BW™ RigRat, Enhanced diffusion: Input/output + wireless, BLE, Mesh 868MHz (Portables Systems), Ex
NDIR (0-100% LEL) Low Power, CO - Carbon Monoxide (0-500 ppm), H₂S - Hydrogen Sulphide (0-100
ppm), O₂ - Liquid Oxygen (0-30% Vol.), GPS		 *     * *
HRR-C103100ABK-000 BW™ RigRat, Enhanced diffusion: Input/output + wireless, BLE, Mesh 2.4GHz (MeshGuard System), Ex
NDIR (0-100% LEL) Low Power, CO - Carbon Monoxide (0-500 ppm), H₂S - Hydrogen Sulphide (0-100
ppm), O₂ - Liquid Oxygen (0-30% Vol.)		 *     *
HRR-D102009ABK-000 BW™ RigRat, Enhanced Pump: Input/output + wireless, BLE, Mesh 868MHz (Portables Systems),
Catalytic LEL (0-100% LEL), CO - Carbon Monoxide (0-500 ppm), H₂S - Hydrogen Sulphide (0-100
ppm), O₂ - Liquid Oxygen (0-30% Vol.)		 * *   *
HRR-G102009ABK-000 BW™ RigRat, Enhanced diffusion: Input/output + wireless + Noise Sensor, BLE, Mesh 868MHz
(Portables Systems), Catalytic LEL (0-100% LEL), CO - Carbon Monoxide (0-500 ppm), H₂S - Hydrogen
Sulphide (0-100 ppm), O₂ - Liquid Oxygen (0-30% Vol.)		 *   * *
HRR-H102009ABK-000 BW™ RigRat, Enhanced pump: Input/output + wireless + Noise Sensor, BLE, Mesh 868MHz (Portables
Systems), Catalytic LEL (0-100% LEL), CO - Carbon Monoxide (0-500 ppm), H₂S - Hydrogen Sulphide
(0-100 ppm), O₂ - Liquid Oxygen (0-30% Vol.)		 * * * *
HRR-G102100ABK-100 BW™ RigRat, Enhanced diffusion: Input/output + wireless + Noise Sensor, BLE, Mesh 868MHz
(Portables Systems), Ex NDIR (0-100% LEL) Low Power, CO - Carbon Monoxide (0-500 ppm), H₂S -
Hydrogen Sulphide (0-100 ppm), O₂ - Liquid Oxygen (0-30% Vol.), GPS		 *   * * *
HRR-H102100ABK-100 BW™ RigRat, Enhanced pump: Input/output + wireless + Noise Sensor, BLE, Mesh 868MHz (Portables
Systems), Ex NDIR (0-100% LEL) Low Power, CO - Carbon Monoxide (0-500 ppm), H₂S - Hydrogen
Sulphide (0-100 ppm), O₂ - Liquid Oxygen (0-30% Vol.), GPS		 * * * * *
