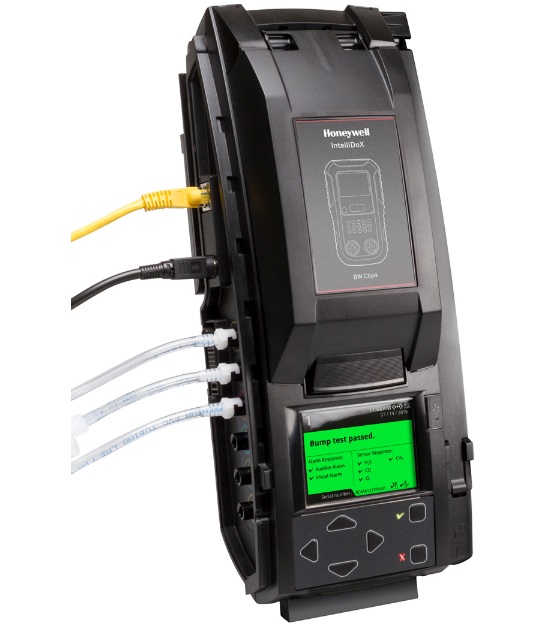

The BW IntelliDoX system combines smart docking modules and device management software to provide automated instrument management for Honeywell BW™ Solo, Honeywell BW™ Ultra, BW™ MaxXTII, BW™ Clip Series, Honeywell BW™ Clip4 and Honeywell BW™ MicroClip Series gas detectors gas detectors.

Key Features

  • Enables bump test tracking, email notices and easy recordkeeping for improved compliance
  • Performs the quickest bump test in the industry for increased uptime and no wasted calibration gas
  • Enables the ability to change alarm set points, set a noncompliance indicator when a bump test is due, and adjust other parameters for maximum flexibility
Get a Quote
BW Technologies

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

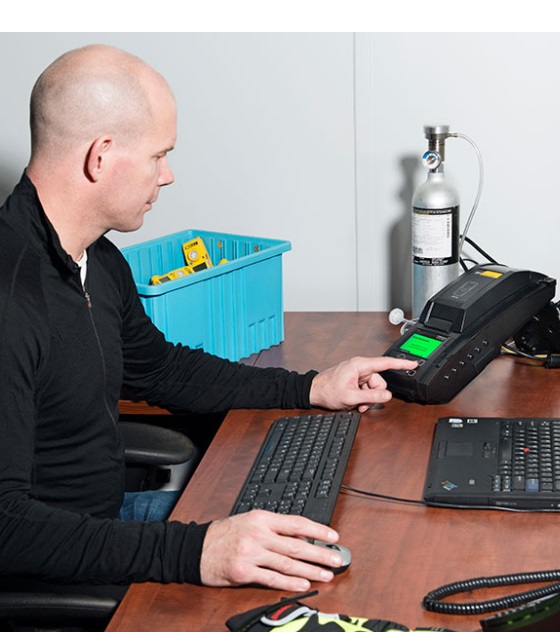

With the IntelliDoX instrument management system, simply place a detector in the docking module, and it automatically performs certain activities based on your specifications in the Fleet Manager II or Honeywell SafetySuite software. You can set each module to do a bump test, reconfigure the detector's high and low alarm set points, and more. Also use the software to analyze the data from each gas detector, run reports, track compliance and even send email reminders to workers.

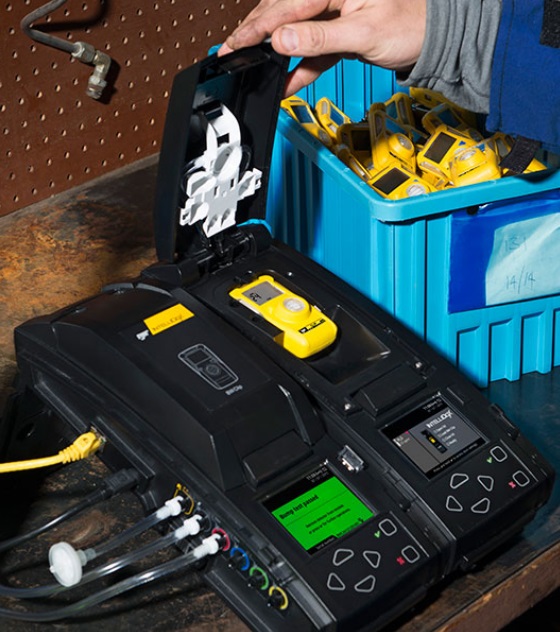

Thanks to the unique design of IntelliDoX, each docking module has its own LCD and keypad for independent operation, so when you gang multiple modules together, you can perform different activities for different detectors - all at the same time.

Compatible with:

  • Honeywell BW™ MicroClip Series – Multi-Gas Detector
  • Honeywell BW™ Clip4 – Multi-Gas Detector
  • Honeywell BW™ Ultra - Multi-Gas Detector
  • Honeywell BW™ MaxXTII – Mulit-Gas Detector
  • BW™ Clip Series – Single Gas Detector
  • BW™ Solo – Single Gas Detector



Quick Specs

  • Easy setup with a network or USB drive — no tools required
  • Expandable to five docking modules that can operate independently, while sharing power, network connection and calibration gas
  • Easy data transfer — by Ethernet or USB — from docking module to computer
  • Device management with Honeywell Safety Suite.

SIZE 5.4 x 14.2 x 4.3 in (13.8 x 36.2 x 10.9 cm)
(individual docking module)
WEIGHT 4.2 lb (1.91 kg)
POWER SUPPLY 12 V / 8.33A ITE Power Supply
REAL-TIME CLOCK Provides time and date stamp
COMMUNICATIONS METHOD Two-way infrared communication between docking module and detector
EXTERNAL INTERFACE 1 USB port
1 Ethernet port
MENU NAVIGATION Adjust display settings
Adjust time and date
Configure gas inlets
Review IntelliDoX module
Password protected (if enabled)
Configure UI display language: English, French, German, Portuguese, Spanis
AUTOMATIC TESTS Automatic bump test to verify sensor responds to target gas
Automatic bump test in 10 seconds for BW Clip / BW Clip Real Time with FastBump
DATA STORAGE 2 GB internal
PUMP Independent pump in each IntelliDoX module
Flow Rate: 350 ml/min
INSTRUMENT MANAGEMENT SYSTEM Safety Suite Device Configurator or Fleet Manager II, version 4.5 or higher
RATINGS EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
FCC Part 15
ICES-003 Canadian EMI
IP20
WARRANTY Full two year warranty


IntelliDoX Docking System Order Number
IntelliDoX docking station for Honeywell BW® Clip Series* DX-CLIP
IntelliDoX docking station for Honeywell BW™ Solo* DX-SOLO
IntelliDoX docking station for Honeywell BW™ MicroClip Series* DX-MCLP
IntelliDoX docking station for Honeywell BW™ Clip4* DX-BWC4
IntelliDoX docking station for Honeywell BW™ Ultra* DX-ULTRA
IntelliDoX docking station for BW MAXXT DX-MAXXT
IntelliDoX enabler kit, NA version (North America)† DX-ENBL-NA
IntelliDoX enabler kit, EU version (Europe)† DX-ENBL-EU
IntelliDoX enabler kit, UK version (United Kingdom)† DX-ENBL-UK
IntelliDoX enabler kit, AU version (Australia)† DX-ENBL-AU

*Note: One IntelliDoX enabler kit is required for each docking system. Each docking system can support up to 5 IntelliDoX modules.
†IntelliDoX enabler kit includes power supply with region-specific AC power cord, ethernet cable, inlet (purge) filter assembly, 3 ft. / 1 m calibration gas tubing, 3 ft. / 1 m purge gas tubing,
15 ft. / 4.5 m exhaust tubing and quick connect fittings


IntelliDoX Accessories Order Number
IntelliDoX Mobile Case (Standard) supports 1 or 2 IntelliDoX units and two
34L cylinders. IntelliDoX and Enabler Kit sold separately.
DX-CASE
IntelliDoX Mobile Case (Large) supports 1 or 2 IntelliDoX units and two 58L
cylinders. IntelliDoX and Enabler Kit sold separately
DX-CASE1
IntelliDoX Single-Inlet Key DX-SI-KEY
IntelliDoX Multi-Inlet Key DX-MI-KEY
AC power supply for IntelliDoX, NA version (North America) DX-PS-NA
AC power supply for IntelliDoX, EU version (Europe) DX-PS-EU
AC power supply for IntelliDoX, UK version (United Kingdom) DX-PS-UK
AC power supply for IntelliDoX, AU version (Australia) DX-PS-AU
IntelliDoX vehicle power adaptor DX-VPA
Demand flow regulator REG-DF-1
Demand flow regulator for refillable cylinders, CGA connector REG-DF-2
Demand flow regulator for disposable steel cylinders REG-DF-3
IntelliDoX Accessories Order Number
IntelliDoX Nest for Honeywell BW® Clip Series DX-NEST-CLIP
IntelliDoX Nest for Honeywell BW™ Solo DX-NEST-SOLO
IntelliDoX Nest for Honeywell BW™ MicroClip Series DX-NEST-MCLP
IntelliDoX Nest for Honeywell BW™ Clip4 DX-NEST-BWC4
IntelliDoX Nest for Honeywell BW™ Ultra DX-NEST-ULTRA
IntelliDoX universal latch arm (kit of 5) DX-ARM
DX-NEST-MAXXT DX-NEST-MAXXT
IntelliDoX universal end plate (kit of 5) DX-COVER
IntelliDoX filters and hoses kit DX-FILTERS
IntelliDoX retractable stand/wall mount (kit of 5) DX-STAND
