BW Gas Alert Micro 5 BW Gas Alert Micro 5 BW Gas Alert Micro 5

BW Gas Alert Micro 5

Providing protection from up to 5 potential atmospheric hazards including oxygen, combustibles and toxic gases, the BW Gas Alert Micro 5 portable gas detector is unmatched in its versatility.

Key Features

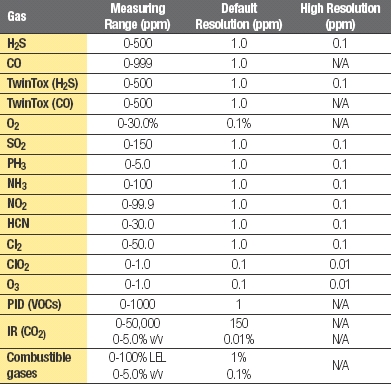

  • Monitors H2S, CO, O2, SO2, PH3, CI2, NH3, NO2, HCN, CIO2, O3 and combustibles
  • Integral concussion-proof boot
  • Triple alarms (audible, visual, vibrating)
Get a Quote
BW Technologies

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

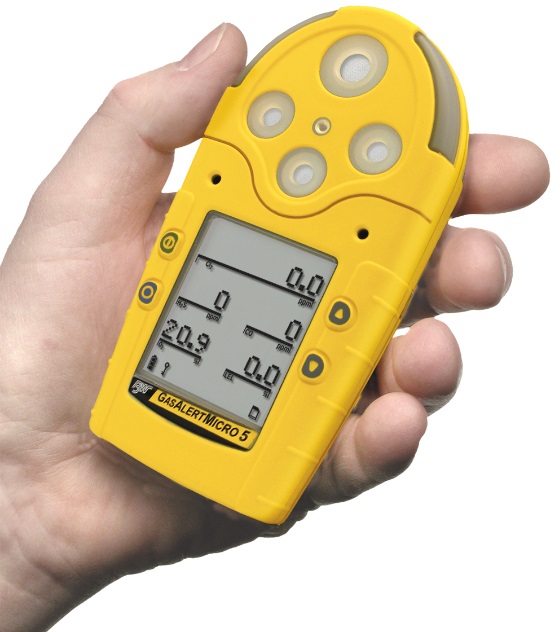

Providing protection from up to five potential atmospheric hazards including oxygen, combustible and toxic gases, GasAlertMicro 5 is unparalleled in its versatility, capability and overall value. BW Technologies by Honeywell's newest addition to its water-resistant line of portable gas detectors has transformed the market with its matchless array of features.

Continuously monitoring and displaying concentrations of up to five gases, the compact and lightweight GasAlertMicro 5 was designed and engineered with an extensive host of applications in mind.

Additional Features:

  • • Integral concussion-proof boot
  • • Optional integral motorized pump option for remote sampling
  • • Powered by three AA alkaline batteries or a hot-swappable rechargeable battery pack
  • • Triple alarms (audible, visual and vibrating)
  • • Multi-language support in English, French, German, Spanish and Portuguese
  • • Large, user selectable backlit LCD
  • • Four alarm levels: Low, High, TWA and STEL
  • • Compatible with MicroDock II Automatic Test and Calibration Station
  • • Datalogging models store and recall event information
  • • Wide range of user selectable field options including password protection, safe and stealth modes.

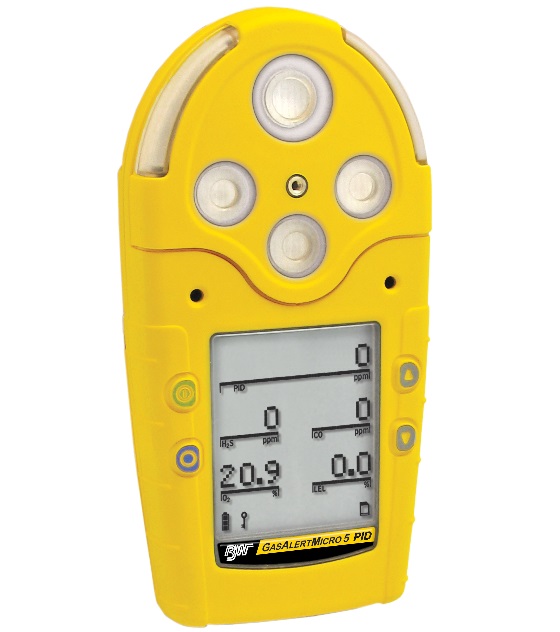

GasAlertMicro 5 PID

Smaller and 50% lighter than competitive instruments, this portable, multi-gas detector delivers a high-level of protection wherever it's needed.

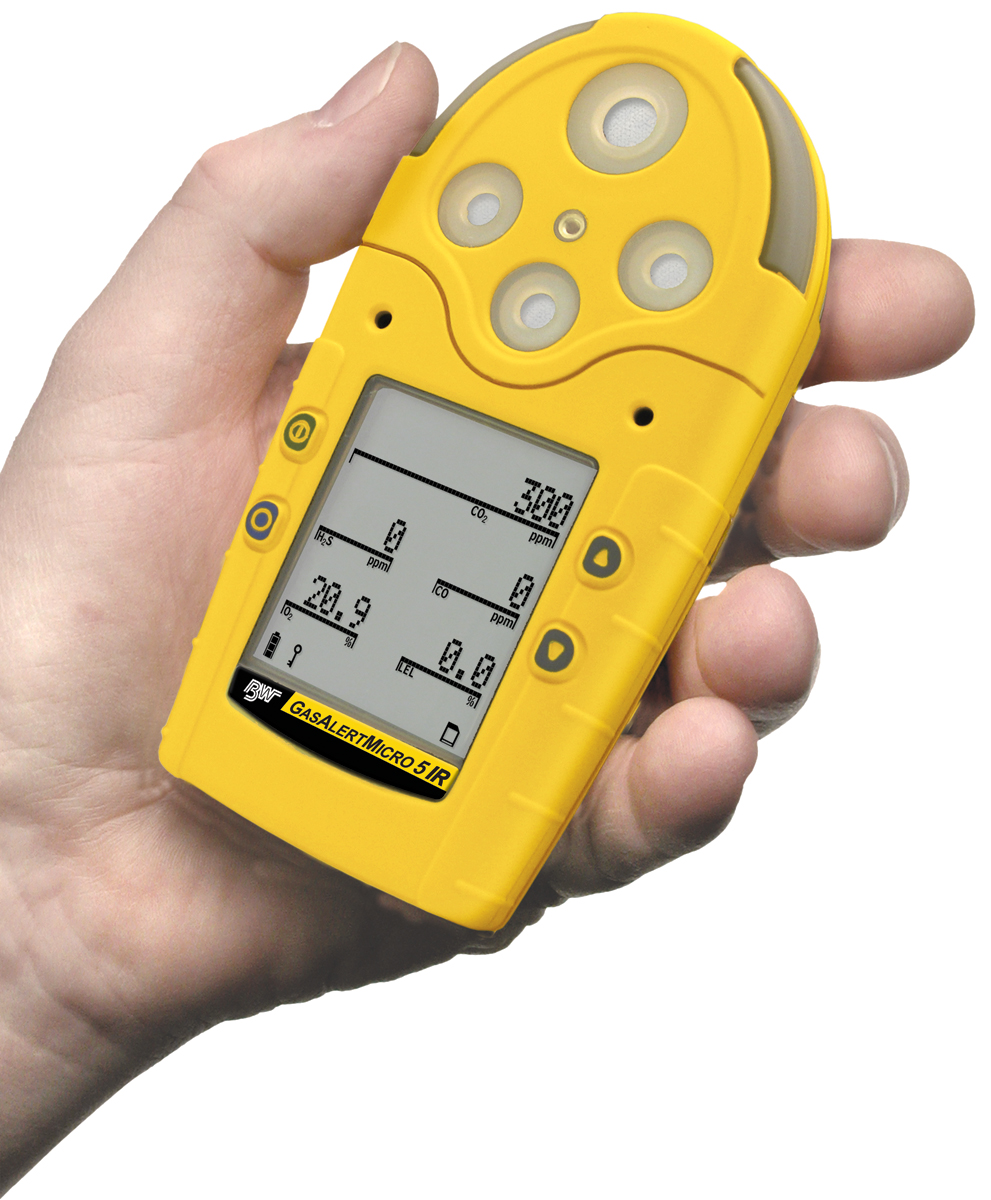

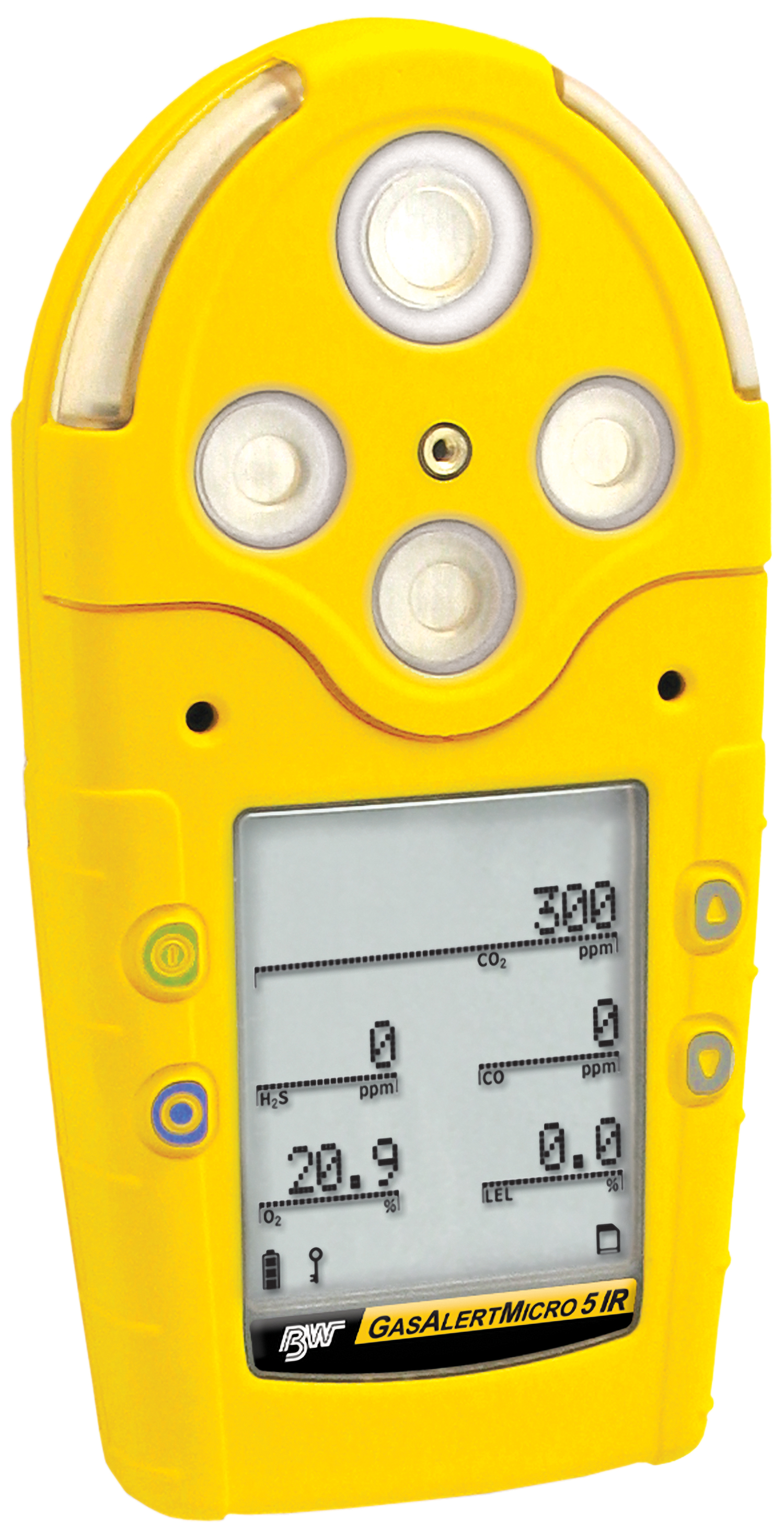

GasAlertMicro 5 IR

Compact and lightweight, simultaneously monitors up to five atmospheric hazards and alerts you I the event of low, high, TWA or STEL alarm condition.

GasAlertMicro 5 Detector
  • %LEL, O2, H2S, CO, SO2 - rechargeable battery, yellow housing M5-XWSY-R-D-D-Y-E-00

  • %LEL, O2, H2S, CO, SO2 - rechargeable battery and pump, yellow housing M5-XWSY-R-P-D-Y-E-00

  • %LEL, O2, H2S, CO, NH3 - rechargeable battery, yellow housing M5-XWAY-R-D-D-Y-E-00

  • %LEL, O2, H2S, CO, NH3 - rechargeable battery and pump, yellow housing M5-XWAY-R-P-D-Y-E-00

  • %LEL, O2, H2S, CO, Cl2 - rechargeable battery, yellow housing M5-XWCY-R-D-D-Y-E-00

  • %LEL, O2, H2S, CO, Cl2 - rechargeable battery and pump, yellow housing M5-XWCY-R-P-D-Y-E-00

  • %LEL, O2, H2S, CO - alkaline batteries and pump, yellow housing M5-XW0Y-A-P-D-Y-E-00

  • %LEL, O2, H2S, CO - rechargeable battery, yellow housing M5-XW0Y-R-D-D-Y-E-00

  • %LEL, O2, H2S, CO - rechargeable battery and pump, yellow housing M5-XW0Y-R-P-D-Y-E-00

  • %LEL, O2, H2S, CO, SO2 - rechargeable battery, black housing M5-XWSY-R-D-D-B-E-00

  • %LEL, O2, H2S, CO, SO2 - rechargeable battery and pump, black housing M5-XWSY-R-P-D-B-E-00

  • %LEL, O2, H2S, CO, NH3 - rechargeable battery, black housing M5-XWAY-R-D-D-B-E-00

  • %LEL, O2, H2S, CO, NH3 - rechargeable battery and pump, black housing M5-XWAY-R-P-D-B-E-00

  • %LEL, O2, H2S, CO, Cl2 - rechargeable battery, black housing M5-XWCY-R-D-D-B-E-00

  • %LEL, O2, H2S, CO, Cl2 - rechargeable battery and pump, black housing M5-XWCY-R-P-D-B-E-00

  • %LEL, O2, H2S, CO - alkaline batteries and pump, black housing M5-XW0Y-A-P-D-B-E-00

  • %LEL, O2, H2S, CO - rechargeable battery, black housing M5-XW0Y-R-D-D-B-E-00

  • %LEL, O2, H2S, CO - rechargeable battery and pump, black housing M5-XW0Y-R-P-D-B-E-00

GasAlertMicro 5 PID Detector
  • VOCs, %LEL, O2, H2S, CO - alkaline batteries and pump, yellow housing M5PID-XWQY-A-P-D-Y-E-00

  • VOCs, %LEL, O2, H2S, CO - rechargeable battery and pump, yellow housing M5PID-XWQY-R-P-D-Y-E-00

  • VOCs, %LEL, O2 - alkaline batteries and pump, yellow housing M5PID-XWQ0-A-P-D-Y-E-00

  • VOCs, %LEL, O2 - rechargeable battery and pump, yellow housing M5PID-XWQ0-R-P-D-Y-E-00

  • VOCs - alkaline batteries and pump, yellow housing M5PID-00Q0-A-P-D-Y-E-00

  • VOCs - rechargeable battery and pump, yellow housing M5PID-00Q0-R-P-D-Y-E-00

  • VOCs, %LEL, O2, H2S, CO - alkaline batteries and pump, black housing M5PID-XWQY-A-P-D-B-E-00

  • VOCs, %LEL, O2, H2S, CO - rechargeable battery and pump, black housing M5PID-XWQY-R-P-D-B-E-00

  • VOCs, %LEL, O2 - alkaline batteries and pump, black housing M5PID-XWQ0-A-P-D-B-E-00

  • VOCs, %LEL, O2 - rechargeable battery and pump, black housing M5PID-XWQ0-R-P-D-B-E-00

  • VOCs - alkaline batteries and pump, black housing M5PID-00Q0-A-P-D-B-E-00

  • VOCs - rechargeable battery and pump, black housing M5PID-00Q0-R-P-D-B-E-00

GasAlertMicro 5 IR Detector
  • CO2 (IR), %LEL, O2, H2S, CO - rechargeable battery, yellow housing M5IR-XWBY-R-D-D-Y-E-00

  • CO2 (IR), %LEL, O2, H2S, CO - rechargeable battery and pump, yellow housingM5IR-XWBY-R-P-D-Y-E-00

  • CO2 (IR), %LEL, O2, H2S - rechargeable battery, yellow housing M5IR-XWBH-R-D-D-Y-E-00

  • CO2 (IR), %LEL, O2, H2S - rechargeable battery and pump, yellow housing M5IR-XWBH-R-P-D-Y-E-00

  • CO2 (IR), %LEL, O2 - rechargeable battery, yellow housing M5IR-XWB0-R-D-D-Y-E-00

  • CO2 (IR), %LEL, O2 - rechargeable battery and pump, yellow housing M5IR-XWB0-R-P-D-Y-E-00

  • CO2 (IR) - rechargeable battery, yellow housing M5IR-00B0-R-D-D-Y-E-00

  • CO2 (IR) - rechargeable battery and pump, yellow housing M5IR-00B0-R-P-D-Y-E-00

  • CO2 (IR), %LEL, O2, H2S, CO - rechargeable battery and pump, black housing M5IR-XWBY-R-P-D-B-E-00

  • CO2 (IR), %LEL, O2, H2S - rechargeable battery, black housing M5IR-XWBH-R-D-D-B-E-00

  • CO2 (IR), %LEL, O2, H2S - rechargeable battery and pump, black housing M5IR-XWBH-R-P-D-B-E-00

  • CO2 (IR), %LEL, O2 - rechargeable battery, black housing M5IR-XWB0-R-D-D-B-E-00

  • CO2 (IR), %LEL, O2 - rechargeable battery and pump, black housing M5IR-XWB0-R-P-D-B-E-00

  • CO2 (IR) - rechargeable battery, black housing M5IR-00B0-R-D-D-B-E-00

  • CO2 (IR) - rechargeable battery and pump, black housing M5IR-00B0-R-P-D-B-E-00

Confined Space Entry Kit
  • GasAlertMicro 5 Series Deluxe Confined Space Kit M5-CK-DL

  • Carrying case for GasAlertMicro 5 Series with foam and lid insert M5-CK-CC

Carrying & Protective Accessories
  • Concussion Proof Boot GA Micro5 diffusion GA-BM5-1

  • Concussion Proof Boot GA Micro5 pump GA-BM5-2

  • Carrying Holster GA Micro5 GA-HM5

  • Neck strap with safety release GA-NS-1

  • Short strap (6 in. / 15.2 cm) GA-LY-1

  • Extension strap (4 ft. / 1.2 m) GA-ES-1

  • Chest harness GA-CH-2

Sampling & Testing Equipment

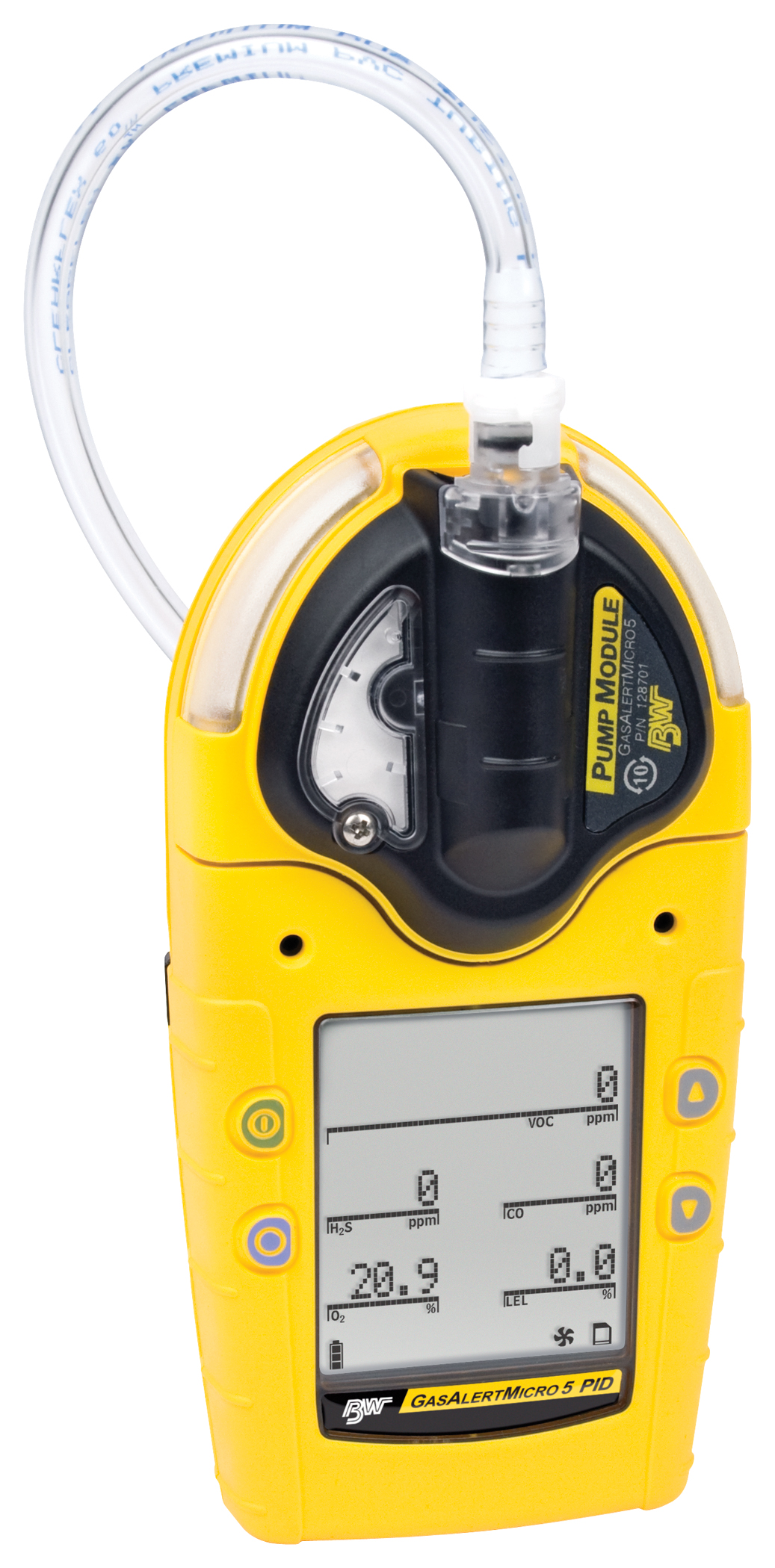

  • Integral motorized pump kit (Generation 2) with visible integrated filter (yellow) M5-PUMP

  • Integral motorized pump kit (Generation 2) with visible integrated filter (black) M5-PUMPB

  • Auxiliary Pump Filter compatible with Hose Connector M5-QCONN-K1

  • Auxiliary pump filter for use with Generation 2 pump modules (with filter window) - Kit of 5 M5-AF-K3

  • Auxiliary pump filter for use with Generation 2 pump modules (with filter window) - Kit of 100 M5-AF-K3-100

  • Auxiliary pump filter for use with legacy Generation 1 pump modules (without filter window) - Kit of 5 M5-AF-K2

  • Auxiliary pump filter for use with legacy Generation 1 pump modules (without filter window) - Kit of 100 M5-AF-K2-100

  • Manual aspirator pump kit with probe (1 ft. / 0.3 m) GA-AS02

  • Test cap and hose (1.5 ft. / 0.5 m) replacement M5-TC-1

Power Supplies and Spares
  • Alkaline battery pack, yellow* M5-BAT0501

  • Alkaline battery pack, black* M5-BAT0501B

  • Alkaline battery pack, European-style safety screws, yellow* M5-BAT0502

  • Rechargeable battery pack, yellow* M5-BAT08

  • Rechargeable battery pack, black* M5-BAT08B

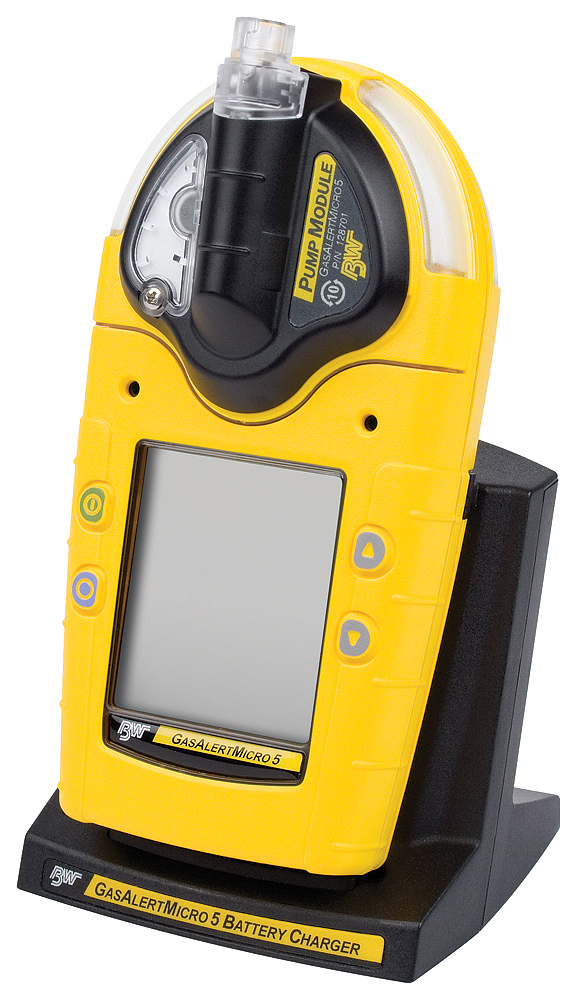

  • Cradle charger and rechargeable battery pack, yellow* M5-C01-BAT08

  • Cradle charger and rechargeable battery pack, black* M5-C01-BAT08B

  • Cradle charger for rechargeable battery packs M5-C01

  • 12 VDC vehicle adaptor cable for use with cradle charger (M5-C01) GA-V-CHRG4

  • Replacement power supply for chargers POWER-UPS-01

  • *Note: Battery packs and chargers should be used with the new version GasAlertMicro 5 Series gas detectors (red circuit boards).

Datalogging Accessories
  • Multimedia card M5-MMC

Replacement Sensor Screens
  • Quad sensor screen filters (kit of 2) M5-SS

Replacement Sensors
  • Replacement ammonia (NH3) sensor* SR-A04

  • Replacement carbon dioxide (CO2) IR sensor SR-B04

  • Replacement carbon monoxide (CO) sensor SR-M04-SC

  • Replacement chlorine (Cl2) sensor* PS-RC10

  • Replacement chlorine dioxide (ClO2) sensor* SR-V04

  • Replacement combustible (% LEL) sensor with heavy duty silicone filter† SR-W04

  • Replacement combustible (% LEL) sensor without heavy duty silicone filter† SR-W04-UF

  • Replacement Duo-Tox sensor - carbon monoxide (CO) and hydrogen sulfide (H2S) D4-RHM04

  • Replacement hydrogen cyanide (HCN) sensor* PS-RZ10

  • Replacement hydrogen sulfide (H2S) sensor PS-RH04S

  • Replacement nitrogen dioxide (NO2) sensor PS-RD04

  • Replacement oxygen (O2) sensor SR-X2V

  • Replacement ozone (O3) sensor* SR-G04

  • Replacement phosphine (PH3) sensor SR-P04

  • Replacement sulfur dioxide (SO2) sensor PS-RS04

  • Replacement volatile organic compounds (VOC) PID sensor, 10.6 eV* SR-Q07

  • Replacement PID lamp, (10.6 eV) for PID sensor (SR-Q07)* RL-PID10.6

  • Replacement electrode stacks for PID sensor (SR-Q07) (kit of 2) M5PID-ES-1

  • Cleaning kit for PID sensor M5PID-CLN-K1

  • Dummy sensor for 3-pin O2 or 3-pin Duo-Tox locations SR-DUMM1

  • Dummy sensor for combustible (LEL) location SR-DUMM2

  • Dummy sensor for PID location SR-DUMM3
