Carbolite KVT & KVZ Large Vertical Split Tube Furnaces

The Carbolite KVT & KVZ Large Vertical Split Tube Furnaces have been designed for use with large work tubes or reactor vessels up to 200 mm outer diameter.

Key Features

  • 1200°C maximum operating temperature
  • Single zone models fitted with Carbolite Gero 301 PID controller with single ramp to setpoint and process timer
  • 3-zone models fitted with 1 x Carbolite Gero 301 PID controller and 2 x 2132 slave end zone controllers
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

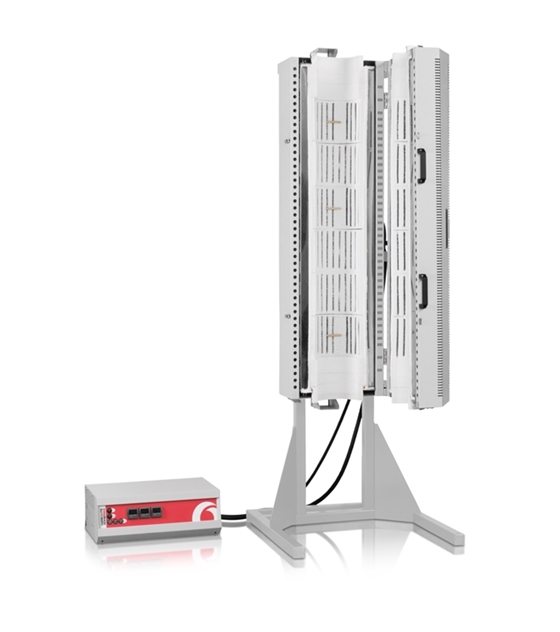

The furnace body is hinged and split into two along its length and is held closed with over-centre clamps providing easy access to reactors or work tube. These furnaces can be used for many applications such as heating reactors in pilot plant or the manufacture of plastic parts in the automotive industry.

The large diameter of the K range furnaces is perfect for heat treatment of wafers and fuel cells. Extended length work tubes of 200 mm diameter are possiblein quartz and APM.

Standard features

  • 1200°C maximum operating temperature
  • Single zone models fitted with Carbolite Gero 301 PID controller with single ramp to setpoint and process timer
  • 3-zone models fitted with 1 x Carbolite Gero 301 PID controller and 2 x 2132 slave end zone controllers

Options (specify these at time of order)

  • • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • 300 mm diameter on request

Models
  • KVT1220600-208SN KVT 12/200/600 1200°C,Up to 200mmØ x 600mm Heated Length,Split, vertical single zone Tube Furnace

  • KVT1220600-208TX KVT 12/200/600 1200°C,Up to 200mmØ x 600mm Heated Length,Split, vertical single zone Tube Furnace

  • KVT1220600-230SN KVT 12/200/600 1200°C,Up to 200mmØ x 600mm Heated Length,Split, vertical single zone Tube Furnace

  • KVT1220600-230TX KVT 12/200/600 1200°C,Up to 200mmØ x 600mm Heated Length,Split, vertical single zone Tube Furnace

  • KVT1220600-400TN KVT 12/200/600 1200°C,Up to 200mmØ x 600mm Heated Length,Split, vertical single zone Tube Furnace

  • KVZ1220600-208SN KVZ 12/200/600 1200°C,Up to 200mmØ x 600mm Heated Length,Split, vertical three zone Tube Furnace

  • KVZ1220600-208TX KVZ 12/200/600 1200°C,Up to 200mmØ x 600mm Heated Length,Split, vertical three zone Tube Furnace

  • KVZ1220600-230SN KVZ 12/200/600 1200°C,Up to 200mmØ x 600mm Heated Length,Split, vertical three zone Tube Furnace

  • KVZ1220600-230TX KVZ 12/200/600 1200°C,Up to 200mmØ x 600mm Heated Length,Split, vertical three zone Tube Furnace

  • KVZ1220600-400TN KVZ 12/200/600 1200°C,Up to 200mmØ x 600mm Heated Length,Split, vertical three zone Tube Furnace

  • KVZ1221200-208TX KVZ 12/200/1200 1200°C,Up to 200mmØ x 1200mm Heated Length,Split, vertical three zone Tube Furnace

  • KVZ1221200-230TX KVZ 12/200/1200 1200°C,Up to 200mmØ x 1200mm Heated Length,Split, vertical three zone Tube Furnace

  • KVZ1221200-400TN KVZ 12/200/1200 1200°C,Up to 200mmØ x 1200mm Heated Length,Split, vertical three zone Tube Furnace
