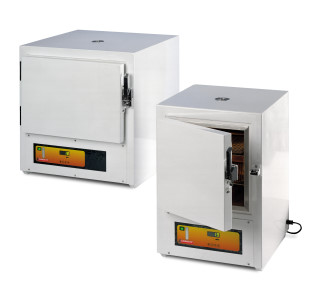

Carbolite CR Clean Room Ovens

Carbolite CR Clean Room Ovens

The Carbolite CR Clean Room Ovens comprises of nine standard models in sizes from the 30 litre model to the 1790 litre model which, once processed through a customer's standard material entry regime, are suitable for operation within an ISO 14644-1 Class 5 environment*.

Key Features

  • 250°C maximum operating temperature
  • 30 to 1810 litre chamber volumes
  • Fully sealed low thermal mass insulation to avoid shedding fibres
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

All sources of particulate contamination are fully sealed. Their easily cleaned stainless steel interiors and gloss white epoxy exteriors prevent the shedding of particulate contamination.

*Federal Standard 209E Class 100 was superseded in 2001 by ISO 14644-1 Class 5

Standard features

  • • Fully enclosed brushless fan motor
  • • Carbolite Gero 301 controller, with single ramp to set-point & process timer
  • • Perforated stainless steel shelves
  • • Particle free silicone rubber door seal
  • • Membrane control panel with clear bright LED display

Options (specify these at time of order)

  • • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • Access port for independent thermocouple
  • • Cable entry ports
  • • Viewing window
  • • Frame to enable units to be stacked one upon another
  • • Lockable door
  • • Door switch to isolate elements and fan
  • • Fully customised through wall (flange fitted) designs are available
  • • Optional floor stand

Models
  • CR030-208SN CR/30 250°C, 30 litre, ISO 14644-1 Class 5 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • CR030-230SN CR/30 250°C, 30 litre, ISO 14644-1 Class 5 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • CR070-208SN CR/70 250°C, 68 litre, ISO 14644-1 Class 5 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • CR070-230SN CR/70 250°C, 68 litre, ISO 14644-1 Class 5 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • CR130-208SN CR/130 250°C, 121 litre, ISO 14644-1 Class 5 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • CR130-230SN CR/130 250°C, 121 litre, ISO 14644-1 Class 5 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • CR180-208SN CR/180 250°C, 170 litre, ISO 14644-1 Class 5 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • CR180-230SN CR/180 250°C, 170 litre, ISO 14644-1 Class 5 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • CR220-208SN CR/220 250°C, 227 litre, ISO 14644-1 Class 5 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • CR220-230SN CR/220 250°C, 227 litre, ISO 14644-1 Class 5 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • CR330-208SN CR/330 250°C, 340 litre, ISO 14644-1 Class 5 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • CR330-208TX CR/330 250°C, 340 litre, ISO 14644-1 Class 5 Clean Room Oven (200 - 210 V -SR-three phase n1 N)

  • CR330-230SN CR/330 250°C, 340 litre, ISO 14644-1 Class 5 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • CR330-230TX CR/330 250°C, 340 litre, ISO 14644-1 Class 5 Clean Room Oven (220 - 240 V -SR-three phase n1 N)

  • CR330-400TN CR/330 250°C, 340 litre, ISO 14644-1 Class 5 Clean Room Oven (380 - 415 V -SR-three phase + N)

  • CR450-208SN CR/450 250°C, 450 litre, ISO 14644-1 Class 5 Clean Room Oven (200 - 210 V-SR-single phase + N)

  • CR450-208TX CR/450 250°C, 450 litre, ISO 14644-1 Class 5 Clean Room Oven (200 - 210 V -SR-three phase n1 N)

  • CR450-230SN CR/450 250°C, 450 litre, ISO 14644-1 Class 5 Clean Room Oven (220 - 240 V -SR-single phase + N)

  • CR450-230TX CR/450 250°C, 450 litre, ISO 14644-1 Class 5 Clean Room Oven (220 - 240 V -SR-three phase n1 N)

  • CR450-400TN CR/450 250°C, 450 litre, ISO 14644-1 Class 5 Clean Room Oven (380 - 415 V -SR-three phase + N)

  • TMP-CR840-208TX CR/840 250°C, 850 litre, ISO 14644-1 Class 5 Clean Room Oven (200 - 210 V -SR-three phase n1 N)

  • TMP-CR840-230TX CR/840 250°C, 850 litre, ISO 14644-1 Class 5 Clean Room Oven (220 - 240 V -SR-three phase n1 N)

  • TMP-CR840-400TN CR/840 250°C, 850 litre, ISO 14644-1 Class 5 Clean Room Oven (380 - 415 V -SR-three phase + N)

  • TMP-CR1790-208TX CR/1790 250°C, 1810 litre, ISO 14644-1 Class 5 Clean Room Oven (200 - 210 V -SR-three phase n1 N)

  • TMP-CR1790-230TX CR/1790 250°C, 1810 litre, ISO 14644-1 Class 5 Clean Room Oven (220 - 240 V -SR-three phase n1 N)

  • TMP-CR1790-400TN CR/1790 250°C, 1810 litre, ISO 14644-1 Class 5 Clean Room Oven (380 - 415 V -SR-three phase + N)

Additional Shelves
  • 00243-3-2019-SP Additional Shelf for CR/30 (2 max)

  • 00244-3-2019 Additional Shelf for CR/70 (2 max), CR130 (5 max) and CR180 (7 max)

  • 00365-3-2012-SP Additional Shelf for CR/220 (5 max) and CR330 8 max)

  • 00367-1-1006S10 Additional Shelf for CR/450 (11 max)

  • TMP-CR840SH Additional Shelf for CR/840 (13 max)

  • TMP-CR1790SH Additional Shelf for CR/1790 (10 max)
