Carbolite FHA & FHC Tube Furnaces (up to 1350°C) Carbolite FHA & FHC Tube Furnaces (up to 1350°C)

Carbolite FHA & FHC Tube Furnaces (up to 1350°C)

The Carbolite FHA & FHC Tube Furnaces (up to 1350°C) can be used either vertically or horizontally and have a maximum operating temperature of 1350 °C.

Key Features

  • 1350 °C maximum operating temperature
  • Single zone models fitted with Carbolite Gero 3216CC PID controller with single ramp to setpoint and process timer
  • 3-zone models fitted with 1 x programmable 3216CC and 2 x 3216CC end zone controllers, with retransmission of setpoint
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The extensive F range of tube furnaces is offered with a wide range of accessories. The furnaces comprise ceramic fibre modules with a high quality 5 mm APM wire heating element mounted in the insulation, held in position by a ceramic holding ridge. The low thermal mass ceramic fibre insulation ensures low energy consumption and allows fast heating rates. The control thermocouple is a high grade type S thermocouple. Additionally, the tube furnace is available with up to 8 heating zones for the most precise temperature control and uniformity.

Standard features

  • • Accepts work tubes with outer diameters up to 110 mm
  • • Heated lengths of 200, 500, 750, 1000 or 1250 mm
  • • Use in horizontal or vertical orientation
  • • Exceptional lifetime and temperature stability
  • • High grade type S thermocouple
  • • Low thermal mass ceramic fibre insulation
  • • High quality 5 mm APM wire as heating element

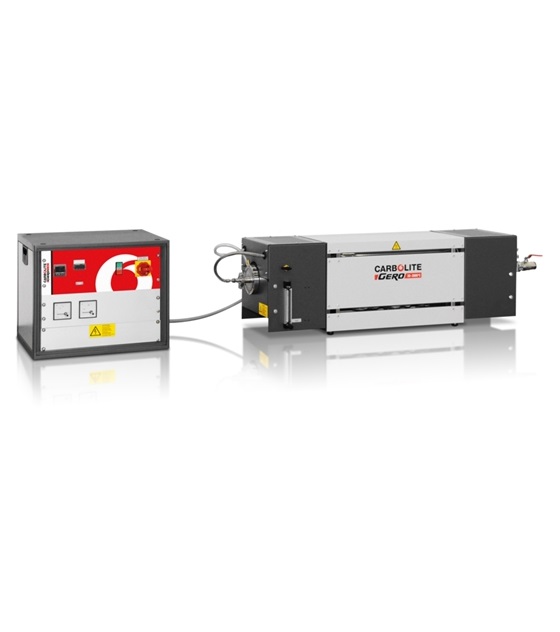

  • • Furnace fitted with separate control box with 3 m cable, plug and socket

Options (specify these at time of order)

  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • • Wide choice of tube diameters and materials is available: eg quartz, ceramic, metal
  • • 'L' stand for vertical usage
  • • Insulation plugs & radiation shields to prevent heat loss & improve uniformity
  • • Modified atmosphere and vacuum assemblies are available
  • • Larger tube diameters on request
  • • Vacuum packages with a choice of rotary vane pump or turbomolecular pump are available for furnaces with tube inner diameters of 60 mm and above
  • • Oxygen sensor for inert gas packages

Models
  • 00042032 FHA 13/32/200

  • 00042033 FHA 13/32/500

  • 00042034 FHA 13/50/200

  • 00042035 FHA 13/50/500

  • 00042036 FHA 13/50/750

  • 00042037 FHA 13/80/200

  • 00042038 FHA 13/80/500

  • 00042039 FHA 13/80/750

  • 00042040 FHA 13/80/1000

  • 00042041 FHA 13/110/500

  • 00042042 FHA 13/110/750

  • 00042043 FHA 13/110/1000

  • 00042044 FHA 13/110/1250

  • 00042045 FHC 13/32/500

  • 00042046 FHC 13/50/500

  • 00042047 FHC 13/50/750

  • 00042048 FHC 13/80/500

  • 00042049 FHC 13/80/750

  • 00042050 FHC 13/80/1000

  • 00042051 FHC 13/110/500

  • 00042052 FHC 13/110/750

  • 00042053 FHC 13/110/1000

  • 00042054 FHC 13/110/1250
