Carbolite GP General Purpose Industrial Ovens Carbolite GP General Purpose Industrial Ovens Carbolite GP General Purpose Industrial Ovens

Carbolite GP General Purpose Industrial Ovens

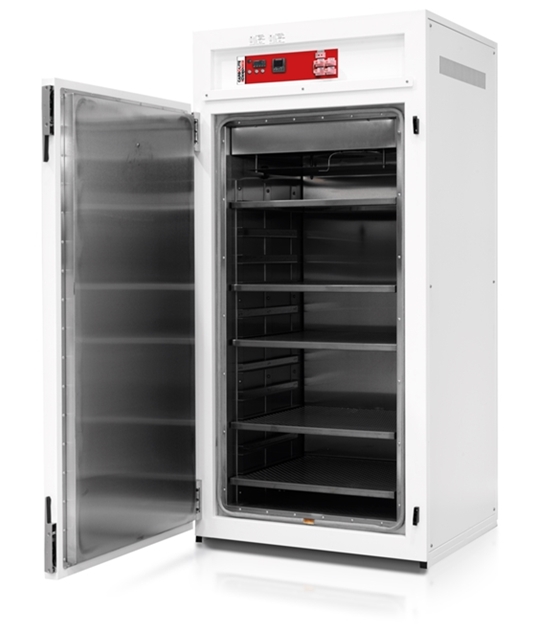

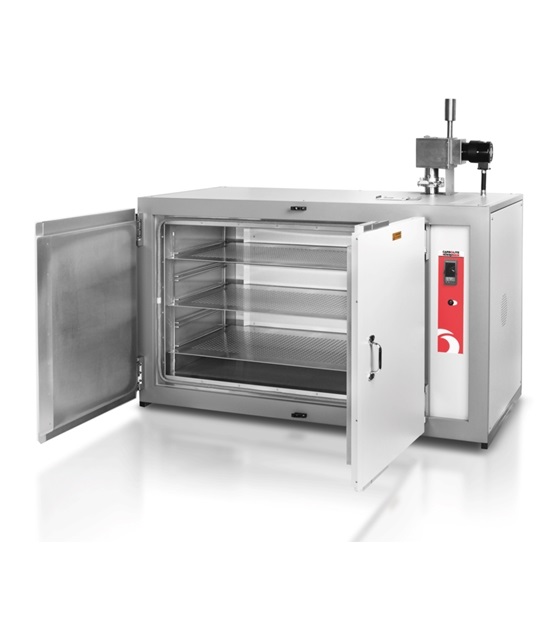

The Carbolite GP General Purpose Industrial Ovens are supplied in three sizes and two configurations: vertical (A) and horizontal (B) airflow.

Key Features

  • 300°C maximum operating temperature
  • Carbolite Gero 301 controller, with single ramp to set-point & process timer
  • Powerful vertical (A) or horizontal (B) airflow for optimum uniformity
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The industrial oven range also provides a foundation upon which a large variety of custom modifications can be added. Typical examples of which are the more sophisticated control systems and data recording that is required for applications such as AMS2750E heat treatment under Nadcap, or modifications to handle heavier loads or assist in loading and unloading the oven, or simply larger chamber sizes than are offered in the standard range.

Standard features

  • • Built to withstand the rigours of a production environment
  • • Long lasting, polished 430 grade ferritic stainless steel internal case
  • • Robust external construction from steel section & zinc coated mild steel panels
  • • Mineral insulated metal sheathed heating elements
  • • Low thermal mass insulation for high energy efficiency
  • • Adjustable chamber ventilation

Options (specify these at time of order)

  • • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • Access port for independent thermocouple
  • • Cable entry ports
  • • Bespoke specifications are available for AMS2750 (Nadcap) compliant applications
  • • Additional shelves
  • • Heavy duty reinforced base and shelves
  • • Optional floor stand
  • • Stoving & curing option for extraction of small volumes of volatile solvents

Models
  • GP220A-208SN GP 220A 300°C, 220 litre, Oven (200 - 210 V-SR-single phase + N)

  • GP220A-230SN GP 220A 300°C, 220 litre, Oven (220 - 240 V -SR-single phase + N)

  • GP220B-208SN GP 220B 300°C, 220 litre, Oven (200 - 210 V-SR-single phase + N)

  • GP220B-230SN GP 220B 300°C, 220 litre, Oven (220 - 240 V -SR-single phase + N)

  • GP330A-208SN GP 330A 300°C, 330 litre, Oven (200 - 210 V-SR-single phase + N)

  • GP330A-208TX GP 330A 300°C, 330 litre, Oven (200 - 210 V -SR-three phase n1 N)

  • GP330A-230SN GP 330A 300°C, 330 litre, Oven (220 - 240 V -SR-single phase + N)

  • GP330A-230TX GP 330A 300°C, 330 litre, Oven (220 - 240 V -SR-three phase n1 N)

  • GP330A-400TN GP 330A 300°C, 330 litre, Oven (380 - 415 V -SR-three phase + N)

  • GP330B-208SN GP 330B 300°C, 330 litre, Oven (200 - 210 V-SR-single phase + N)

  • GP330B-208TX GP 330B 300°C, 330 litre, Oven (200 - 210 V -SR-three phase n1 N)

  • GP330B-230SN GP 330B 300°C, 330 litre, Oven (220 - 240 V -SR-single phase + N)

  • GP330B-230TX GP 330B 300°C, 330 litre, Oven (220 - 240 V -SR-three phase n1 N)

  • GP330B-400TN GP 330B 300°C, 330 litre, Oven (380 - 415 V -SR-three phase + N)

  • GP450A-208SN GP 450A 300°C, 450 litre, Oven (200 - 210 V-SR-single phase + N)

  • GP450A-208TX GP 450A 300°C, 450 litre, Oven (200 - 210 V -SR-three phase n1 N)

  • GP450A-230SN GP 450A 300°C, 450 litre, Oven (220 - 240 V -SR-single phase + N)

  • GP450A-230TX GP 450A 300°C, 450 litre, Oven (220 - 240 V -SR-three phase n1 N)

  • GP450A-400TN GP 450A 300°C, 450 litre, Oven (380 - 415 V -SR-three phase + N)

  • GP450B-208SN GP 450B 300°C, 450 litre, Oven (200 - 210 V-SR-single phase + N)

  • GP450B-208TX GP 450B 300°C, 450 litre, Oven (200 - 210 V -SR-three phase n1 N)

  • GP450B-230SN GP 450B 300°C, 450 litre, Oven (220 - 240 V -SR-single phase + N)

  • GP450B-230TX GP 450B 300°C, 450 litre, Oven (220 - 240 V -SR-three phase n1 N)

  • GP450B-400TN GP 450B 300°C, 450 litre, Oven (380 - 415 V -SR-three phase + N)

Additional Shelves
  • TMP-GP220A-HDSH Additional heavy duty shelf for GP220A

  • TMP-GP330A-HDSH Additional heavy duty shelf for GP330A

  • TMP-GP450A-HDSH Additional heavy duty shelf for GP450A

  • TMP-GP220B-HDSH Additional heavy duty shelf for GP220B

  • TMP-GP330B-HDSH Additional heavy duty shelf for GP330B

  • TMP-GP450B-HDSH Additional heavy duty shelf for GP450B
