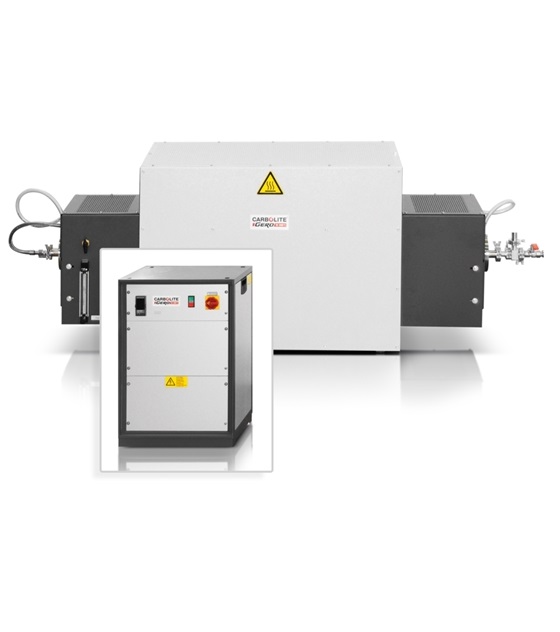

The Carbolite HTRH & HTRH-3 High Temperature Horizontal Tube Furnaces can be used horizontally up to 1800 °C.

Key Features

  • 1800 °C maximum operating temperature
  • Programmable 3216P1 controller
  • 3-zone models fitted with 1 x programmable 3216P1 and 2 x 3216CC end zone controllers, with retransmission of setpoint
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The high-grade insulation materials guarantee low energy consumption and high heating rates due to their low thermal conductivity. The insulation and molybdenum disilicide (MoSi2) heating elements are installed in the rectangular housing. The heating elements are vertically hanging and can be replaced easily. At higher temperatures and in the presence of oxygen, MoSi2 develops an oxide (SiO2) layer, which protects the heating elements against further thermal or chemical corrosion.

Three-zone tube furnaces (HTRH-3) can achieve better temperature uniformity than single-zone versions. In these models each zone is equipped with a dedicated thermocouple and controller, which is especially useful to preheat gases required for reactions inside the system.

The HTRH tube furnaces do not include an integral work tube. The work tube must be selected as an additional item. The work tube length is dependent on the application and will vary if used with or without modified atmosphere or vacuum.

Standard features

  • • Over-temperature protection
  • • Accepts work tubes with outer diameters up to 100 mm for use with modified atmosphere
  • • Accepts work tubes with outer diameters up to 200 mm for use in air
  • • Heated lengths of 100, 250, 300 or 600 mm
  • • Low thermal mass ceramic fibre insulation
  • • Vertically hanging, high quality MoSi2 heating elements
  • • Rectangular housing with holes for convection cooling
  • • Available with 1 - 3 heating zones
  • • Furnace comes with separate control box with 3 m cable, plug and socket

Options (specify these at time of order)

  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • A range of additional work tubes is available in a variety of materials
  • • Insulation plugs & radiation shields are strongly recommended for high temperature vertical tube furnaces to prevent heat loss & improve uniformity
  • • Modified atmosphere and vacuum assemblies are available
  • • Vacuum packages with a choice of rotary vane pump or turbomolecular pump are available for furnaces with tube inner diameters of 60 mm and above
  • • Oxygen sensor for inert gas packages

Models
  • 00042064 HTRH 16/40/100

  • 00042065 HTRH 16/40/250

  • 00042066 HTRH 16/40/500

  • 00042067 HTRH 16/70/150

  • 00042068 HTRH 16/70/300

  • 00042069 HTRH 16/70/600

  • 00042070 HTRH 16/100/150

  • 00042071 HTRH 16/100/300

  • 00042072 HTRH 16/100/600

  • 00042073 HTRH 16/150/300

  • 00042074 HTRH 16/150/600

  • 00042075 HTRH 16/200/300

  • 00042076 HTRH 16/200/600

  • 00042077 HTRH 17/40/100

  • 00042078 HTRH 17/40/250

  • 00042079 HTRH 17/40/500

  • 00042080 HTRH 17/70/150

  • 00042081 HTRH 17/70/300

  • 00042082 HTRH 17/70/600

  • 00042083 HTRH 17/100/150

  • 00042084 HTRH 17/100/300

  • 00042085 HTRH 17/100/600

  • 00042086 HTRH 17/150/300

  • 00042087 HTRH 17/150/600

  • 00042088 HTRH 17/200/300

  • 00042089 HTRH 17/200/600

  • 00042090 HTRH 18/40/100

  • 00042091 HTRH 18/40/250

  • 00042092 HTRH 18/40/500

  • 00042093 HTRH 18/70/150

  • 00042094 HTRH 18/70/300

  • 00042095 HTRH 18/70/600

  • 00042096 HTRH 18/100/150

  • 00042097 HTRH 18/100/300

  • 00042098 HTRH 18/100/600

  • 00042099 HTRH 18/150/300

  • 00042100 HTRH 18/150/600

  • 00042101 HTRH 18/200/300

  • 00042102 HTRH 18/200/600

  • 00042103 HTRH-3 16/70/600

  • 00042104 HTRH-3 16/100/600

  • 00042105 HTRH-3 16/150/600

  • 00042106 HTRH-3 17/70/600

  • 00042107 HTRH-3 17/100/600

  • 00042108 HTRH-3 17/150/600

  • 00042109 HTRH-3 18/70/600

  • 00042110 HTRH-3 18/100/600

  • 00042111 HTRH-3 18/150/600
