Carbolite HVTT High Vacuum Tube Furnaces

Carbolite HVTT High Vacuum Tube Furnaces

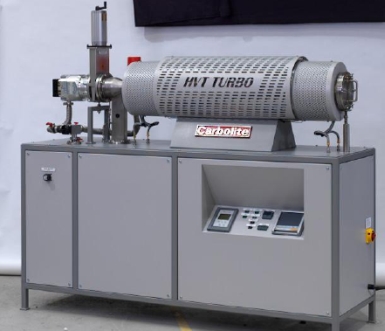

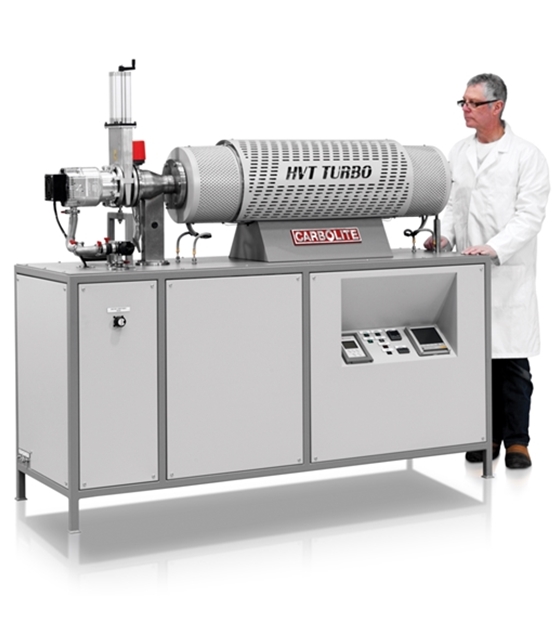

The Carbolite HVTT High Vacuum Tube Furnaces are available in three standard sizes. A range of tube lengths and diameters is available.

Key Features

  • 1200°C or 1500°C maximum operating temperature
  • Capable of 10-5 mbar vacuum in a clean empty work tube
  • Supplied with work tube inner diameters of 50, 60 and 80 mm (HVTT 12) or 50 and 75 mm (HVTT 15)
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The HVTT high vacuum tube furnaces at 1500 °C are available with two work tube diameters.

These high vacuum furnaces are often the starting point for additional customisation such as automated control of gate valves, gas purge, back-fill systems and co-ordinated control of roughing pump with the turbo-molecular high vacuum pump.

Standard features

  • • Heated lengths of 450, 550 mm or 700 mm
  • • Vacuum provided by oil-free scroll pump & turbo-molecular pump
  • • Cooling water failure alarm
  • • Manually operated roughing / backing valve
  • • Pirani gauge low vacuum monitor
  • • Penning gauge high vacuum monitor
  • • Work tube connects to the vacuum system via stainless steel connection
  • • Access to the work tube is via a removable stainless steel vacuum flange
  • • Radiation shields at both ends of the work tube maintain uniformity without reducing pump speeds
  • • All controls are mounted within the base unit

Options (specify these at time of order)

  • • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • Custom built models including a variety of gas backfill systems, automatic & semi-automatic vacuum systems and 3-zone control for improved uniformity is available

Models
  • HVTT1250-208SN HVTT 12/50/550 1200°C, 55mmØ x 550mm Heated Length, -SR-vacuum tube furnace (200 - 210 V-SR-single phase + N)

  • HVTT1250-230SN HVTT 12/50/550 1200°C, 55mmØ x 550mm Heated Length, -SR-vacuum tube furnace (220 - 240 V -SR-single phase + N)

  • HVTT1260-208SN HVTT 12/60/700 1200°C, 60mmØ x 700mm Heated Length, -SR-vacuum tube furnace (200 - 210 V-SR-single phase + N)

  • HVTT1260-230SN HVTT 12/60/700 1200°C, 60mmØ x 700mm Heated Length, -SR-vacuum tube furnace (220 - 240 V -SR-single phase + N)

  • HVTT1280-208SN HVTT 12/80/700 1200°C, 80mmØ x 700mm Heated Length, -SR-vacuum tube furnace (200 - 210 V-SR-single phase + N)

  • HVTT1280-230SN HVTT 12/80/700 1200°C, 80mmØ x 700mm Heated Length, -SR-vacuum tube furnace (220 - 240 V -SR-single phase + N)

  • HVTT1280-400TN HVTT 12/80/700 1200°C, 80mmØ x 700mm Heated Length, -SR-vacuum tube furnace (380 - 415 V -SR-three phase + N)

  • HVTT1550-208SN HVTT 15/50/450 1500°C, 50mmØ x 450mm Heated Length, -SR-high temperature vacuum tube furnace (200 - 210 V-SR-single phase + N)

  • HVTT1550-230SN HVTT 15/50/450 1500°C, 50mmØ x 450mm Heated Length, -SR-high temperature vacuum tube furnace (220 - 240 V -SR-single phase + N)

  • HVTT1550-400TN HVTT 15/50/450 1500°C, 50mmØ x 450mm Heated Length, -SR-high temperature vacuum tube furnace (380 - 415 V -SR-three phase + N)

  • HVTT1575-208SN HVTT 15/75/450 1500°C, 75mmØ x 450mm Heated Length, -SR-high temperature vacuum tube furnace (200 - 210 V-SR-single phase + N)

  • HVTT1575-230SN HVTT 15/75/450 1500°C, 75mmØ x 450mm Heated Length, -SR-high temperature vacuum tube furnace (220 - 240 V -SR-single phase + N)

  • HVTT1575-400TN HVTT 15/75/450 1500°C, 75mmØ x 450mm Heated Length, -SR-high temperature vacuum tube furnace (380 - 415 V -SR-three phase + N)
