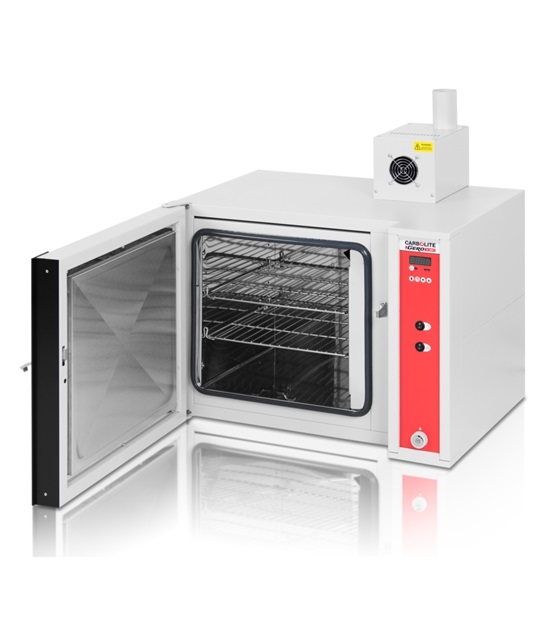

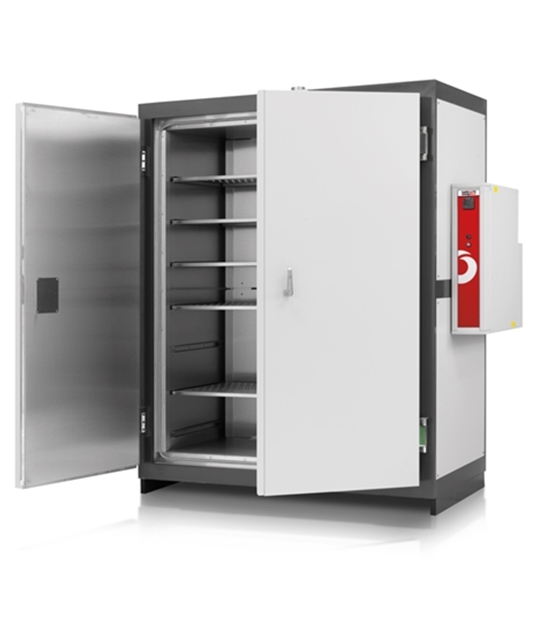

Carbolite PF Fan Convection Laboratory Ovens

The Carbolite PF Fan Convection Laboratory Ovens are part of the Peak series 300°C and are for laboratory use.

Key Features

  • 300°C (PF 30 to PF 200) or 250°C (PF 400, PF 800) maximum operating temperatures
  • 28 to 910 litre chamber volumes
  • Equipped with the R38 digital PID temperature controller
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Fan convection provides greater temperature uniformity and faster recovery rates than natural convection.

Standard features

  • • Fan convection for rapid heating & recovery & excellent uniformity
  • • Chemically resistant stainless steel liner
  • • Two nickel-chrome plated wire shelves (The PF 400 is supplied with 3 wire shelves, the PF 800 with 3 perforated stainless steel shelves)
  • • Lever latch door & airtight silicone seal
  • • Compliant with safety standard BS EN 61010-2-010:2003

Options (specify these at time of order)

  • • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • Access port for independent thermocouple
  • • Accessory shelves & runners
  • • Heavy duty reinforced base and shelves
  • • Cable entry ports
  • • Variable speed fan control
  • • Stoving & curing options for extraction of small volumes of volatile solvents (not compatible with viewing window option)
  • • Viewing window (not compatible with stoving & curing option)
  • • Interior light (not compatible with stoving & curing option)
  • • Air exhaust fan
  • • Moisture extraction option (comprising sealed seams and air exhaust fan)
  • • Stacking frame to enable units to be stacked one upon another
  • • Lockable door
  • • Door switch to isolate elements and fan
  • • Fixed or castor mounted floor stands
  • • Low voltage options for use below 220 V
  • • Routine spares kit

Models
  • PF030-208SN PF 30 300°C, 30 litre, Fan assisted convection oven (200 - 210 V-SR-single phase + N)

  • PF030-230SN PF 30 300°C, 30 litre, Fan assisted convection oven (220 - 240 V -SR-single phase + N)

  • PF060-208SN PF 60 300°C, 60 litre, Fan assisted convection oven (200 - 210 V-SR-single phase + N)

  • PF060-230SN PF 60 300°C, 60 litre, Fan assisted convection oven (220 - 240 V -SR-single phase + N)

  • PF120-208SN PF 120 300°C, 120 litre, Fan assisted convection oven (200 - 210 V-SR-single phase + N)

  • PF120-230SN PF 120 300°C, 120 litre, Fan assisted convection oven (220 - 240 V -SR-single phase + N)

  • PF200-208SN PF 200 300°C, 200 litre, Fan assisted convection oven (200 - 210 V-SR-single phase + N)

  • PF200-230SN PF 200 300°C, 200 litre, Fan assisted convection oven (220 - 240 V -SR-single phase + N) +HT

  • PF400-208SN PF 400 250°C, 400 litre, Fan assisted convection oven (200 - 210 V-SR-single phase + N)

  • PF400-230SN PF 400 250°C, 400 litre, Fan assisted convection oven (220 - 240 V -SR-single phase + N)

  • PF400-400TN PF 400 250°C, 400 litre, Fan assisted convection oven (380 - 415 V -SR-three phase + N)

  • PF800-230SN PF 800 250°C, 800 litre, Fan assisted convection oven (220 - 240 V -SR-single phase + N)

  • PF800-230TX PF 800 250°C, 800 litre, Fan assisted convection oven (220 - 240 V -SR-three phase n1 N)

  • PF800-400TN PF 800 250°C, 800 litre, Fan assisted convection oven (380 - 415 V -SR-three phase + N)

Stoving and Curing Models
  • PFSC030-208SN PF 30 300°C, 30 litre, Fan assisted convection oven with stoving and curing (200 - 210 V-SR-single phase + N)

  • PFSC030-230SN PF 30 300°C, 30 litre, Fan assisted convection oven with stoving and curing (220 - 240 V -SR-single phase + N)

  • PFSC060-208SN PF 60 300°C, 60 litre, Fan assisted convection oven with stoving and curing (200 - 210 V-SR-single phase + N)

  • PFSC060-230SN PF 60 300°C, 60 litre, Fan assisted convection oven with stoving and curing (220 - 240 V -SR-single phase + N)

  • PFSC120-208SN PF 120 300°C, 120 litre, Fan assisted convection oven with stoving and curing (200 - 210 V-SR-single phase + N)

  • PFSC120-230SN PF 120 300°C, 120 litre, Fan assisted convection oven with stoving and curing (220 - 240 V -SR-single phase + N)

  • PFSC200-208SN PF 200 300°C, 200 litre, Fan assisted convection oven with stoving and curing (200 - 210 V-SR-single phase + N)

  • PFSC200-230SN PF 200 300°C, 200 litre, Fan assisted convection oven with stoving and curing (220 - 240 V -SR-single phase + N)

  • PFSC400-208SN PF 400 250°C, 400 litre, Fan assisted convection oven with stoving and curing (200 - 210 V-SR-single phase + N)

  • PFSC400-230SN PF 400 250°C, 400 litre, Fan assisted convection oven with stoving and curing (220 - 240 V -SR-single phase + N)

  • PFSC400-400TN PF 400 250°C, 400 litre, Fan assisted convection oven with stoving and curing (380 - 415 V -SR-three phase + N)

  • PFSC800-230SN PF 800 250°C, 800 litre, Fan assisted convection oven with stoving and curing (220 - 240 V -SR-single phase + N)

  • PFSC800-230TX PF 800 250°C, 800 litre, Fan assisted convection oven with stoving and curing (220 - 240 V -SR-three phase n1 N)

  • PFSC800-400TN PF 800 250°C, 800 litre, Fan assisted convection oven with stoving and curing (380 - 415 V -SR-three phase + N)

Moisture Extraction Models
  • PFME030-208SN PF 30 300°C, 30 litre, Fan assisted convection oven with moisture extraction (200 - 210 V-SR-single phase + N)

  • PFME030-230SN PF 30 300°C, 30 litre, Fan assisted convection oven with moisture extraction (220 - 240 V -SR-single phase + N)

  • PFME060-208SN PF 60 300°C, 60 litre, Fan assisted convection oven with moisture extraction (200 - 210 V-SR-single phase + N)

  • PFME060-230SN PF 60 300°C, 60 litre, Fan assisted convection oven with moisture extraction (220 - 240 V -SR-single phase + N)

  • PFME120-208SN PF 120 300°C, 120 litre, Fan assisted convection oven with moisture extraction (200 - 210 V-SR-single phase + N)

  • PFME120-230SN PF 120 300°C, 120 litre, Fan assisted convection oven with moisture extraction (220 - 240 V -SR-single phase + N)

  • PFME200-208SN PF 200 300°C, 200 litre, Fan assisted convection oven with moisture extraction (200 - 210 V-SR-single phase + N)

  • PFME200-230SN PF 200 300°C, 200 litre, Fan assisted convection oven with moisture extraction (220 - 240 V -SR-single phase + N)

  • PFME400-208SN PF 400 250°C, 400 litre, Fan assisted convection oven with moisture extraction (200 - 210 V-SR-single phase + N)

  • PFME400-230SN PF 400 250°C, 400 litre, Fan assisted convection oven with moisture extraction (220 - 240 V -SR-single phase + N)

  • PFME400-400TN PF 400 250°C, 400 litre, Fan assisted convection oven with moisture extraction (380 - 415 V -SR-three phase + N)

  • PFME800-230SN PF 800 250°C, 800 litre, Fan assisted convection oven with moisture extraction (220 - 240 V -SR-single phase + N)

  • PFME800-230TX PF 800 250°C, 800 litre, Fan assisted convection oven with moisture extraction (220 - 240 V -SR-three phase n1 N)

  • PFME800-400TN PF 800 250°C, 800 litre, Fan assisted convection oven with moisture extraction (380 - 415 V -SR-three phase + N)

Additional Shelves
  • PF030-SHELF-KIT Additional shelf with runners for PF 30 (3 max)

  • PF60-SHELF-KIT Additional shelf with runners for PF 60 (5 max)

  • PF120-SHELF-KIT Additional shelf with runners for PF 120 (9 max)

  • PF200-SHELF-KIT Additional shelf with runners for PF 200 (15 max)

  • PF400-SHELF-KIT Additional shelf with runners for PF 400 (14 max)
