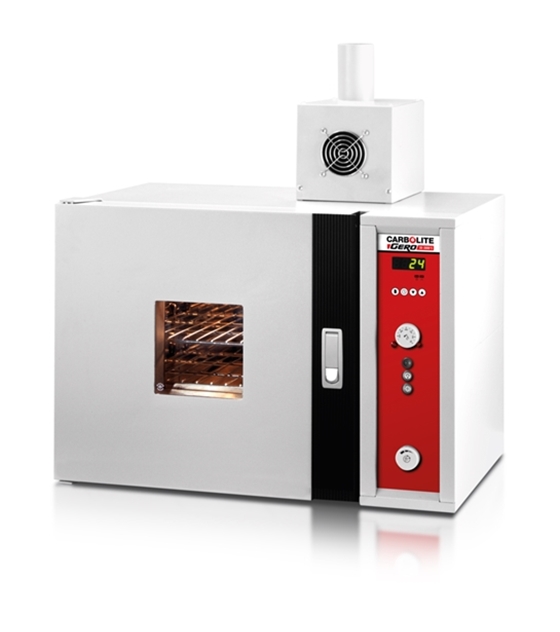

Carbolite PN Natural Convection Laboratory Ovens

The Carbolite PN Natural Convection Laboratory Ovens are bench mounted laboratory ovens capable of temperatures up to 300°C.

Key Features

  • Economical natural convection models
  • 300°C maximum operating temperature
  • Equipped with the R38 digital PID temperature controller
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

In the PN ovens air circulation depends upon natural convection. The resulting slow airflow is preferable, for example, for processes involving powders which may be disturbed by fan convection or where there is a risk of cross contamination between samples.

The reduced complexity makes natural convection a less expensive option.

Standard features

  • • Chemically resistant stainless steel liner
  • • Two nickel-chrome plated wire shelves
  • • Lever latch door & airtight silicone seal
  • • Compliant with safety standard BS EN 61010-2-010:2003

Options (specify these at time of order)

  • • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • Access port for independent thermocouple
  • • Accessory shelves & runners
  • • Heavy duty reinforced base and shelves
  • • Cable entry ports
  • • Viewing window
  • • Interior light
  • • Stacking frame
  • • Lockable door
  • • Door switch to isolate elements
  • • Floor stands & wheeled trolleys
  • • Routine spares kit

Models
  • PN030-230SN PN 30 300°C, 30 litre, Natural convection oven (220 - 240 V -SR-single phase + N)

  • PN060-230SN PN 60 300°C, 60 litre, Natural convection oven (220 - 240 V -SR-single phase + N)

  • PN120-208SN PN 120 300°C, 120 litre, Natural convection oven (200 - 210 V-SR-single phase + N)

  • PN120-230SN PN 120 300°C, 120 litre, Natural convection oven (220 - 240 V -SR-single phase + N)

  • PN200-208SN PN 200 300°C, 200 litre, Natural convection oven (200 - 210 V-SR-single phase + N)

  • PN200-230SN PN 200 300°C, 200 litre, Natural convection oven (220 - 240 V -SR-single phase + N)

Additional Shelves
  • PN030-SHELF-KIT Additional Shelf with runners for PN 30 (3 max)

  • PN60-SHELF-KIT Additional Shelf with runners for PN 60 (5 max)

  • PN120-SHELF-KIT Additional Shelf with runners for PN 120 (9 max)

  • PN200-SHELF-KIT Additional Shelf with runners for PN 200 (15 max)
