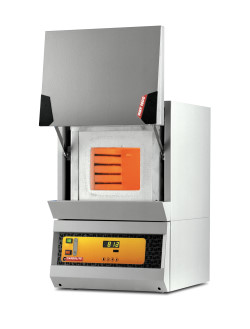

Carbolite RWF Rapid Heating Chamber Furnaces

Carbolite RWF Rapid Heating Chamber Furnaces

The Carbolite RWF Rapid Heating Chamber Furnaces are available in three chamber sizes with maximum operating temperatures of 1100 °C or 1200 °C.

Key Features

  • 1100°C or 1200°C maximum operating temperature
  • 5, 13 or 23 litre chamber volumes
  • Ambient to 1000°C in as little as 10 minutes
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The free radiating wire elements in combination with low thermal mass insulation are designed to provide rapid thermal response within the chamber.

Standard features

  • • Rapid thermal response from free radiating coiled wire elements
  • • Low thermal mass insulation for high energy efficiency
  • • Up & away door keeps heated surface away from the user
  • • Carbolite Gero 301 controller, with single ramp to set-point & process timer
  • • Soft closing parallel action door keeps heated surface away from the user
  • • Hard wearing hearth

Options (specify these at time of order)

  • • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications

Models
  • RWF1105-208SN RWF 11/5 1100°C, 5 litre, Chamber Furnace (200 - 210 V-SR-single phase + N)

  • RWF1105-230SN RWF 11/5 1100°C, 5 litre, Chamber Furnace (220 - 240 V -SR-single phase + N)

  • RWF1113-208SN RWF 11/13 1100°C, 13 litre, Chamber Furnace (200 - 210 V-SR-single phase + N)

  • RWF1113-230SN RWF 11/13 1100°C, 13 litre, Chamber Furnace (220 - 240 V -SR-single phase + N)

  • RWF1113-400TN RWF 11/13 1100°C, 13 litre, Chamber Furnace (380 - 415 V -SR-three phase + N)

  • RWF1123-230SN RWF 11/23 1100°C, 23 litre, Chamber Furnace (220 - 240 V -SR-single phase + N)

  • RWF1123-230TX RWF 11/23 1100°C, 23 litre, Chamber Furnace (220 - 240 V -SR-three phase n1 N)

  • RWF1123-400TN RWF 11/23 1100°C, 23 litre, Chamber Furnace (380 - 415 V -SR-three phase + N)

  • RWF1205-208SN RWF 12/5 1200°C, 5 litre, Chamber Furnace (200 - 210 V-SR-single phase + N)

  • RWF1205-230SN RWF 12/5 1200°C, 5 litre, Chamber Furnace (220 - 240 V -SR-single phase + N)

  • RWF1213-208SN RWF 12/13 1200°C, 13 litre, Chamber Furnace (200 - 210 V-SR-single phase + N)

  • RWF1213-230SN RWF 12/13 1200°C, 13 litre, Chamber Furnace (220 - 240 V -SR-single phase + N)

  • RWF1213-400TN RWF 12/13 1200°C, 13 litre, Chamber Furnace (380 - 415 V -SR-three phase + N)

  • RWF1223-230SN RWF 12/23 1200°C, 23 litre, Chamber Furnace (220 - 240 V -SR-single phase + N)

  • RWF1223-230TX RWF 12/23 1200°C, 23 litre, Chamber Furnace (220 - 240 V -SR-three phase n1 N)

  • RWF1223-400TN RWF 12/23 1200°C, 23 litre, Chamber Furnace (380 - 415 V -SR-three phase + N)
