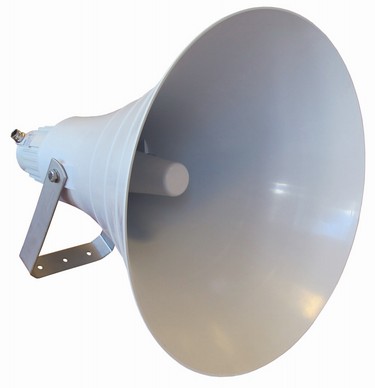

The DNH DS(T)-100/DH-50 is a 100 watt compression driver/re-entrant horn loudspeaker, manufactured from marine grade aluminium alloy, powder coated light grey plastic and glass-fibre.

With a maximum sound pressure level of 132dB(A), this robust loudspeaker combination is weatherproof to IP67 and features a single M20 gland entry. A five step transformer is fitted to the DST 100 line voltage models that allows adjustment of sound output by altering the power consumption.

The DH-50 re-entrant horn flare is fitted with an industry standard 1 3/8" UNEF thread and can accept any compression driver that uses the same thread form.

This product is available with stainless steel mounting bracket.

Typical applications include alarm broadcast for military installations, maritime vessels, industrial manufacturing plants and factories.

This loudspeaker is available in the following standard versions:

DS-100 low impedance (8 ohm or 20 ohm)
DST-100 line voltage transformer (100V)
DH-50 500mm re-entrant horn flare

Other impedances or transformer voltages to order.

Data Sheet
