Drager PAS Filter Series


Drager PAS filters deliver clean air which exceeds the specifications of DIN EN 12021, from existing high-pressure networks. Therefore there is no need for a separate air breathing line whilst you work.

Wall-mounted or portable

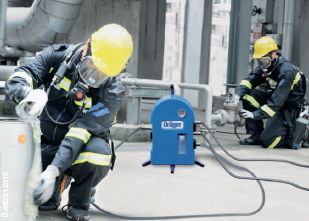

The Drager PAS filters can be easily mounted on a wall or flat surface. The bottom connections of the wall mounted version allow the users to move around the device without knocking the hoses. The portable version however is connected through the side of the device. The portable versions are also designed with three legs to stand on which not only stop the device from picking up dirt from the floor, but also helps it grip onto the floor, which is helpful when using the device on uneven surfaces.

Manually adjustable air pressure

An easy to use filter key makes it a simple task when adjusting the air pressure from the line. This enables the user to connect compressed air breathing apparatus according to DIN EN 14594 for positive pressure and normal pressure masks. The pressure is then displayed on the manometer and is easily viewable.



Get a Quote

Datasheet

Ordering Information

3000 Series

Drager PAS F3000 760 (L/min) 3 x CEJN mounted 4.5 kg 3359915
Drager PAS F3000 P 760 (L/min) 3 x CEJN portable 5.0 kg 3359916
Drager PAS F3500 760 (L/min) with pre-filter 3 x CEJN mounted 5.5 kg 3359921
Drager PAS F3500 P 760 (L/min) with pre-filter 3 x CEJN portable 6.0 kg 3359922

5000 Series

Drager PAS F5000 1,080 (L/min) 5 x CEJN mounted 5.0 kg 3359923
Drager PAS F5000 P 1,080 (L/min) 5 x CEJN portable 5.5 kg 3359924
Drager PAS F5500 1,080 (L/min) with pre-filter 5 x CEJN mounted 6.0 kg 3359925
Drager PAS F5500 P 1,080 (L/min) with pre-filter 5 x CEJN portable 6.5 kg 3359926



Drager

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
