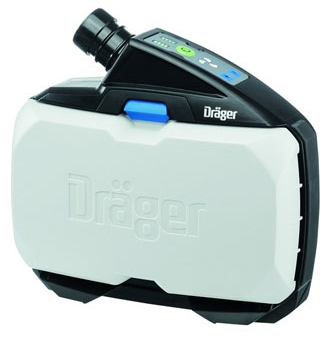

Challenging workplace conditions demand reliable solutions. The Drager X-plore 8000 offers a new level of intuitive handling combined with intelligent electronics that provide the high degree of safety your people need to focus on the task at hand.

Robust: Designed for daily use in tough environments, even in explosive atmospheres

Let's face it: for your workplace, only the most rugged design will do. The Drager X-plore 8000 features heavy-duty design with rubber protectors and high ingress protection (IP65) against dust and water jets from any direction. Two battery versions incorporating the latest Li-ion battery technology provide power for at least 4 h or 8 h, respectively. The air inlets are protected from frontal moving debris, ensuring that sparks or water do not come into direct contact with the filter.

In work areas requiring explosion protection, the special Drager X-plore 8700 model provides optimal support. It is ex-approved and can be used in ex-zones 1, 2, 21 and 22.

Comfortable: Let the user focus on the task

The Drager X-plore 8000 lets your employees do their job and forget about the PAPR they need for proper personal protection. The advanced carrying system ensures optimal distribution of the weight. The system provides a tight and stable connection between the belt and the unit through a special adaptor plate; a comfort pad is also available as an option. The hose connector features a 360° click adaptor. New headpieces are designed for optimal airflow and maximum comfort to avoid unpleasant eye irritation.

Safe: Self-explanatory operation minimises user error

The unit recognises connected headgear and automatically selects the correct minimum flow rate, avoiding leakages caused by insufficient flow rates. An optical sensor prevents use without the filter and supports the right display of the saturation of the particle filter at any time. The filter system features plug-and-go exchange. In addition to the optical and acoustical alarm, the unit is also equipped with a vibration alarm. The entire system features uniform colour codes on all exchangeable elements and an error-proof hose connector.

Easy to maintain: Efficient cleaning together with secure operation

The Drager X-plore 8000 was designed to be practically maintenance free, leading to low cost of ownership. The self-check and self-adjustment systems feature advanced temperature and pressure sensor technology to ensure the right flow rate for any environment. The simple and efficient charging system allows rapid charging (under 3h for an empty battery). The unit is designed for fast and easy disassembly for cleaning.

Modular: A wide range of components for every application

The Drager X-plore 8000 offers a number of user-friendly standard and specialised carrying systems for standard and decontamination applications. Drager has also developed a wide range of tight- and loose-fitting headgear such as half and full-face masks, short and long hoods and helmets with visor and protective visor. Standard and enhanced flexibility hoses are available and compatibility is ensured. Components and accessories can be combined to best fit your application, and system upgrades are possible at any time.

Datasheet

Blower unit

Drager X-plore 8500 R59500
Drager X-plore 8700 (EX) R59550

Batteries

Drager X-plore 8000 Standard battery R59565
Drager X-plore 8000 High-capacity battery R59585
Drager X-plore 8000 Standard battery (EX) R59575
Drager X-plore 8000 High-capacity battery (EX) R59595

Charger

Drager X-plore 8000 Standard charger R59780
Drager X-plore 8000 Multi-unit charger, 1 module w/o cable R59890
Drager X-plore 8000 Multi-unit charger, 1 module w/ EU cable R59950
Drager X-plore 8000 Multi-unit charger, 1 module w/ UK cable R59960
Drager X-plore 8000 Multi-unit charger, 1 module w/ AUS cable R59970
Drager X-plore 8000 Multi-unit charger, 1 module w/ USA cable R59980

Carrying Systems

Drager X-plore 8000 Standard belt R59700
Belt extension for Drager X-plore 8000 Standard belt, 35 cm R59750
Drager X-plore 8000 Comfort pad R59730
Drager X-plore 8000 Decon belt R59710
Belt extension for Drager X-plore 8000 Decon belt, 35 cm R59760
Drager X-plore 8000 Welding belt R59720
Drager X-plore 8000 Shoulder carrying system R59740

Breathing hoses

Drager X-plore 8000 Standard hose (for tight-fitting headpieces) R59630
Drager X-plore 8000 Standard hose (for hoods) R59620
Drager X-plore 8000 Standard hose (for helmets and visors) R59640
Drager X-plore 8000 Flexible hose (for tight-fitting headpieces) R59610
Drager X-plore 8000 Flexible hose (for hoods) R59600
Drager X-plore 8000 Flexible hose (for helmets and visors) R59650

Filters

Drager X-plore 8000 Prefilter 673973
0 Drager X-plore 8000 Odour filter 6739605
Drager X-plore 8000 Odour filter, set 6739735
Particle filter Drager X-plore 8000 Filter P R SL 6739535
Drager X-plore Gas filter 8000 Filter A2 67 39 580 Drager X-plore 8000 Filter K2 6739585
Drager X-plore 8000 Filter A2 P R SL 6739545
Drager X-plore 8000 Filter A1B1E1 P R SL 6739550
Drager X-plore 8000 Filter A1B1E1K1 Hg P R SL 6739555

Accessories

Drager X-plore 8000 Storage box R59690
Drager X-plore 8000 Hose cover, disposable R59670
Drager X-plore 8000 Hose cover, spark proof R59660
